Learning objective: Work with graph data structures using networkx, implement social network analysis algorithms, and practice object-oriented programming through class inheritance.

You can find the starter code for this homework on JupyterHub.

This assessment is very information-dense! Plan ahead by taking notes of what you need to do and where you will need to do it. It will probably help to get a global view of the entire assessment by reading all of the components before starting any coding---we expect students to spend at least 40 minutes reading, synthesizing, and planning before starting any coding.

Context

Social networks are everywhere in our digital lives. Whether it’s following friends on Instagram, connecting with colleagues on LinkedIn, or subscribing to creators on YouTube, these platforms fundamentally operate as graphs: collections of nodes (people, accounts) connected by edges (relationships, follows, friendships).

Understanding social networks through the lens of graph theory opens up powerful possibilities for analysis. For instance, how do platforms decide which new accounts to recommend you follow? How can we identify influential users in a network? How do communities form within larger social structures? These questions can all be answered using graph algorithms.

In this assignment, you’ll work with Python’s networkx library, a powerful tool for creating, analyzing, and manipulating graph data structures. You’ll start by building simple social network graphs, then implement two different recommendation algorithms that platforms like Twitter, Instagram, and LinkedIn might use to suggest new connections. The first algorithm prioritizes quantity (how many mutual connections you share), while the second prioritizes quality (how selective those mutual connections are).

Programming

hw4_graphs.py

In hw4_graphs.py, you will practice drawing a Graph and a DiGraph. You may use the networkx tutorial as a reference.

Note: Any function or syntax up to the end of the section titled “Directed Graphs” may be used in this homework. Do not use any functions after the “Directed Graphs” section.

Practice Graph

Task: Write a function get_practice_graph() that creates and returns the following graph. In main, save it to a file called practice_graph.png using plt.savefig. This portion in main has been done for you. Note that this graph is here for illustrative purposes, and the exact output of your graph may vary. Use the Graph class (not DiGraph, MultiGraph, or MultiDiGraph).

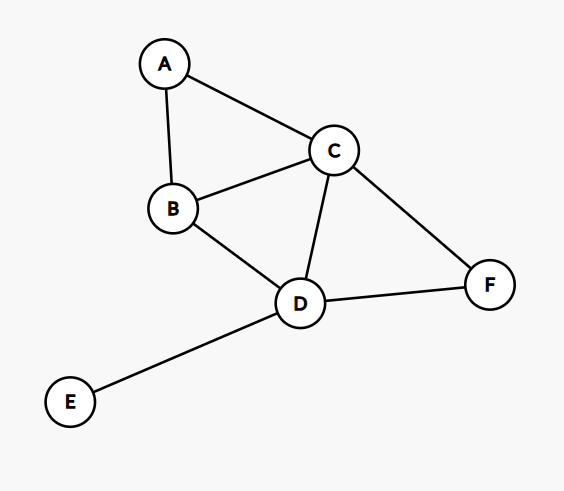

Practice graph, described below

The graph should contain 6 nodes labeled A through F with the following edges:

Your function get_practice_graph() should return the graph itself. In main, save your graph with plt.savefig('practice_graph.png').

Practice DiGraph

Task: Write a function get_practice_digraph() that creates and returns the following graph. In main, save it to a file called practice_digraph.png. This portion in main has been done for you. Note that this graph is here for illustrative purposes, and the exact output of your graph may vary. Use the DiGraph class (not Graph, MultiGraph, or MultiDiGraph).

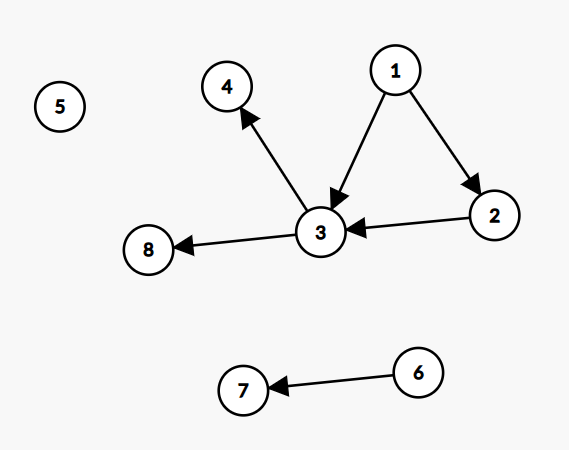

Practice digraph, described below

The graph should contain 8 nodes labeled 1 through 8 with the following edges:

Your function get_practice_digraph() should return the graph itself. In main, save your graph with plt.savefig('practice_digraph.png').

hw4_analysis.py

When you sign into a social media site like Facebook, it suggests friends. In this part of the homework, you will write a program that reads Facebook data and makes friend recommendations. As a concrete example, consider “A” in practice_graph (pictured again below). Suppose we are interested in giving person “A” recommendations of people that they might want to be friends with. By this algorithm, the number of friends you have in common with someone is a measure of how likely it is that they would be a good friend recommendation for you. Therefore, the more friends someone has in common with you, the better their “friendship score” is. We will use the number of friends in common as the friendship score itself.

Practice graph

In this case, we want to find out who has friends in common with “A”.

Because D has two mutual friends with A, D has a friendship score of 2 making D the top recommendation for A. Using the same logic, F is the second best recommendation. We would not recommend B or C because A is already friends with them. We also would not recommend E because A has no friends in common with E.

Now, let us think about how we might create this list. We will need to calculate these “friendship scores” for some set of people in the graph. Because we are using “number of common friends” as our metric, we only care about calculating scores for people who are friends of X’s current friends and not currently a friend of X. There could be many people in a large graph, so we do not want to calculate friendship scores for every person in the graph. Many of those scores will likely be zero because they do not share any friends with X.

Because of this, we will need to calculate the set of “friends-of-friends” for user X. For each of those friends-of-friends, we will calculate the set of friends that they have in common with X. If we want to give user X a ranked list of recommendations from best to worst, then it would be useful to have a data structure to keep track of the mapping of “friend of friend” to friendship score. Finally, given this mapping of people to friendship scores, we will want to sort the potential friends from best to worst before presenting it to the user.

To implement this algorithm, we’ll write the following functions.

Heads up: For common_friends and recs_by_common_friends, you are given suggested directions for the entire function. It may look like a lot at first, but each set of comments will each only require 1-2 lines of code. In total, this will likely be <10 lines of code for the entire function. You are not required to follow this scaffolding, nor follow it exactly. However, it does lead to the “ideal” solution and will help guide your thinking on implementing longer form functions and require little change to adapt for recs_by_influence.

Note: The helper functions read_facebook(), friends() and friends_of_friends() have already been defined for you in hw4_analysis.py. Make sure you understand what these functions do!

common_friends

Task: Write a function common_friends which takes in the Facebook graph object and two users, user1 and user2, and then returns the set of friends that user1 and user2 have in common.

Hint: You may find set operations like &, |, or - helpful here.

recs_by_common_friends

Task: Write a function recs_by_common_friends which takes in the Facebook graph and a user, then returns a list of friend recommendations, sorted by the number of common friends. The list only contains people who have at least one friend in common with the given user and are neither the user nor one of the user’s friends.

Sorting rules: The list is sorted from most common friends to fewest. When two people have the same number of common friends, they are sorted by their natural sort order from least to greatest.

Example: Given a graph my_graph and user "X":

recs_by_common_friends(my_graph, "X")  =>  ['Y', 'Z']

recs_by_influence

Task: Write a function recs_by_influence which takes in the Facebook graph and a user, then returns a list of friend recommendations for the given user, sorted by influence score. The list only contains people who have at least one friend in common with the given user and are neither the user nor one of the user’s friends.

Influence score is computed by summing, over each common friend, the reciprocal of that common friend’s total number of friends. Consider the following purely hypothetical situation:

Since Anita is highly selective in terms of friendship, and is a friend of yours, you are likely to have a lot in common with Anita’s other friend. On the other hand, Margaret has so many friends that there is little reason to believe that you should be friendly with any particular one of Margaret’s other friends.

Incorporate the above idea into your friend recommendation algorithm. We call this technique influence scoring.

Suppose that user1 and user2 have three friends in common: f1, f2, and f3. In the recommendation by common friends, the score for user2 as a friend of user1 is ‘1+1+1‘`1+1+1`. Each common friend contributes 1 to the score.

With influence scoring, the score for user2 as a friend of user1 now becomes:

1numfriends(f1)+1numfriends(f2)+1numfriends(f3)\frac{1}{\tt{numfriends(f1)}} + \frac{1}{\tt{numfriends(f2)}} + \frac{1}{\tt{numfriends(f3)}}
(1)

where ‘numfriends(f)‘`\tt{numfriends(f)}` evaluates to the number of friends that ‘f‘`\tt{f}` has. In other words, each friend X of user1 has a total influence score of 1 to contribute, which is divided equally among all of X’s friends.

In the example above, Anita’s one other friend would have a score of 1/2, and each of Margaret Hamilton’s friends would have a score of 1/7000000000.

Sorting rules: The list is sorted from highest influence score to lowest. When two people have the same influence score, they are sorted by their natural sort order from least to greatest.

Facebook Analysis

The heart of our analysis will go directly into main. The Facebook data has already been read in for you as a graph, courtesy of the read_facebook function. Now, you need to apply both recs_by_common_friends and recs_by_influence to the Facebook data. However, the dataset is quite large, so let’s only look at the users who have ids which are a multiple of 1000.

Task: For every Facebook user with a user id that is a multiple of 1000, print a list containing the first 10 friend recommendations, as determined by “number of common friends” friendship score. If there are fewer than 10 recommendations, print all the recommendations. This is a sample of part of what you would expect for your output---you should be printing more lines than this, and they should be listed in ascending order of userID as shown below (e.g. user 28000, followed by user 29000, etc.):

...
 28000 (by num_common_friends): [23, 1445, 4610, 7996, 10397, 11213, 56, 85, 471, 522]
 29000 (by num_common_friends): [28606]
 30000 (by num_common_friends): [862, 869, 919, 941, 3154, 8180, 8269, 8614, 14473, 14495]
...

Task: For every Facebook user with a user id that is a multiple of 1000, print a list containing the first 10 friend recommendations as determined by the “influence” friendship score. If there are fewer than 10 recommendations, print all the recommendations. This is a sample of part of what you would expect for your output:

...
28000 (by influence): [7033, 17125, 15462, 33049, 51105, 16424, 23, 7996, 725, 1539]
29000 (by influence): [28606]
30000 (by influence): [862, 869, 919, 941, 3154, 8269, 14473, 14495, 17951, 19611]
...

Task: Does the recommendation algorithm make a difference for Facebook? Considering only those 63 Facebook users with an id that is a multiple of 1000, compute and print the number of Facebook users who have the same first 10 friend recommendations under both recommendation systems, and the number of Facebook users who have different first 10 friend recommendations under the two recommendation systems.

For example, in the data above, user 29000 has the same first ten recommendations under both recommendation systems, while user 28000 and user 30000 both have different recommendations under the two recommendation systems. This program may take some time to compute (possibly a minute or so) depending on the efficiency of your solution.

Your output from main should look like the following, but with ellipses and blanks replaced by actual numbers:

Recommendations by common friends:

...
____ (by num_common_friends): [____, ____, ...]
____ (by num_common_friends): [____, ____, ...]
____ (by num_common_friends): [____, ____, ...]
...

Recommendations by influence:

...
____ (by influence): [____, ____, ...]
____ (by influence): [____, ____, ...]
____ (by influence): [____, ____, ...]
...

Difference in Algorithm Recommendations: ____

Testing

There is no formal testing component to this homework, but you can use Diffchecker to compare the output from analyzing facebook-links-small.txt against the expected output in facebook-links-small-output.txt. For your submission, you must read in facebook-links-small.txt.

Ellipses (...) indicate that there may be more of these lines, and underscores (____) should be replaced by values that you will calculate. For the recommendations, each line may have a different number of values than what is shown above, and you will be printing more than 3 lines of output---these are just examples.

Quality

Assessment submissions should pass these checks: flake8 and code quality guidelines. The code quality guidelines are very thorough. For this assessment, the most relevant rules can be found in these sections:

Submission

Submit your work by uploading the following files to Gradescope:

Submit as often as you want until the deadline for the initial submission. Note that we will only grade your most recent submission.

Please make sure you are familiar with the resources and policies outlined in the syllabus.
