Lab 1: Parking Lot Occupancy Counter

This lab is a refresher on finite state machines (FSMs) that you learned about and designed in EE 271 or CSE 369. Be sure to read the Assignment Requirements and Example Lab Report [PDF] before getting started so you know what information to collect and present as you go.

Parking Lot Occupancy Counter

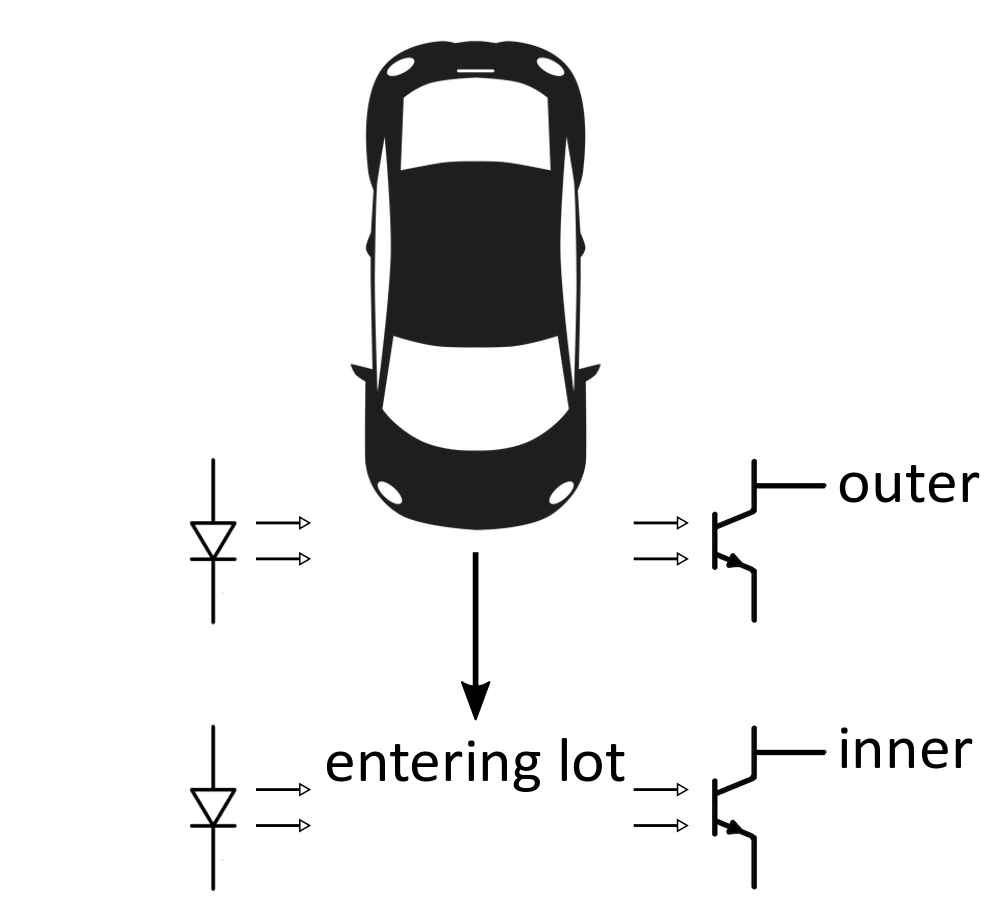

Consider a parking lot with a single gate for both entry and exit. To keep track of the occupancy of the lot, we decide to use two photosensors to track when cars enter or exit, as shown in the figure below.

When an object is between the photo transmitter and the photo receiver, the light is blocked and the corresponding output is asserted to 1. By monitoring the events of both sensors, we can determine whether a car is entering or exiting, or even if a pedestrian is passing through! You may assume that two cars won't be entering/exiting at the same time and that you don't have to worry about multiple pedestrians mimicking a car (i.e., if it looks like a car sequence, count it as a car).

For example, the following sequence indicates that a car entered:

1. Initially, both sensors are unblocked (i.e., {outer, inner} == 2'b00).
2. Sensor outer becomes blocked (i.e., 2'b10).
3. Both sensors are blocked (i.e., 2'b11).
4. Sensor outer becomes unblocked (i.e., 2'b01).
5. Both sensors are unblocked (i.e., 2'b00).

Starting a Project

You can (1) start from a copy of an existing project folder from EE 271 or CSE 369 or (2) watch the following video on how to create a Quartus project from scratch [YouTube].

Helpful Project Files

The use of these are optional, depending on your preferred workflow. Versions of these should have been provided in EE 271 and CSE 369.

• Launch_ModelSim.bat (to launch ModelSim from the directory instead of through Quartus)
• runlab.do (to script the ModelSim commands for simulation)

Code for this Lab

For .sv files, you may want to right-click and save/download instead of clicking.

• DE1_SoC.sv
• DE1_SoC_tb.sv
• clock_divider.sv

Design a Parking Lot Occupancy Counter as Follows

1. Design and implement an FSM for the car detection with two input signals, outer and inner, and two output signals, enter and exit. The enter and exit signals assert true for one clock cycle when a car enters or exits the lot, respectively.
   1. You may assume that cars will not change direction while entering or exiting the parking lot.
   2. Make sure that your FSM does not detect/count invalid sensor sequences.
2. Design and implement a car counter with two control signals, incr and decr, which increment and decrement the counter, respectively, when asserted.
   1. Assume that the maximum capacity of the parking lot is 18 spots.
3. Design and implement a module for the parking lot occupancy, which combines the car detection and counter. Your system should have the following properties:

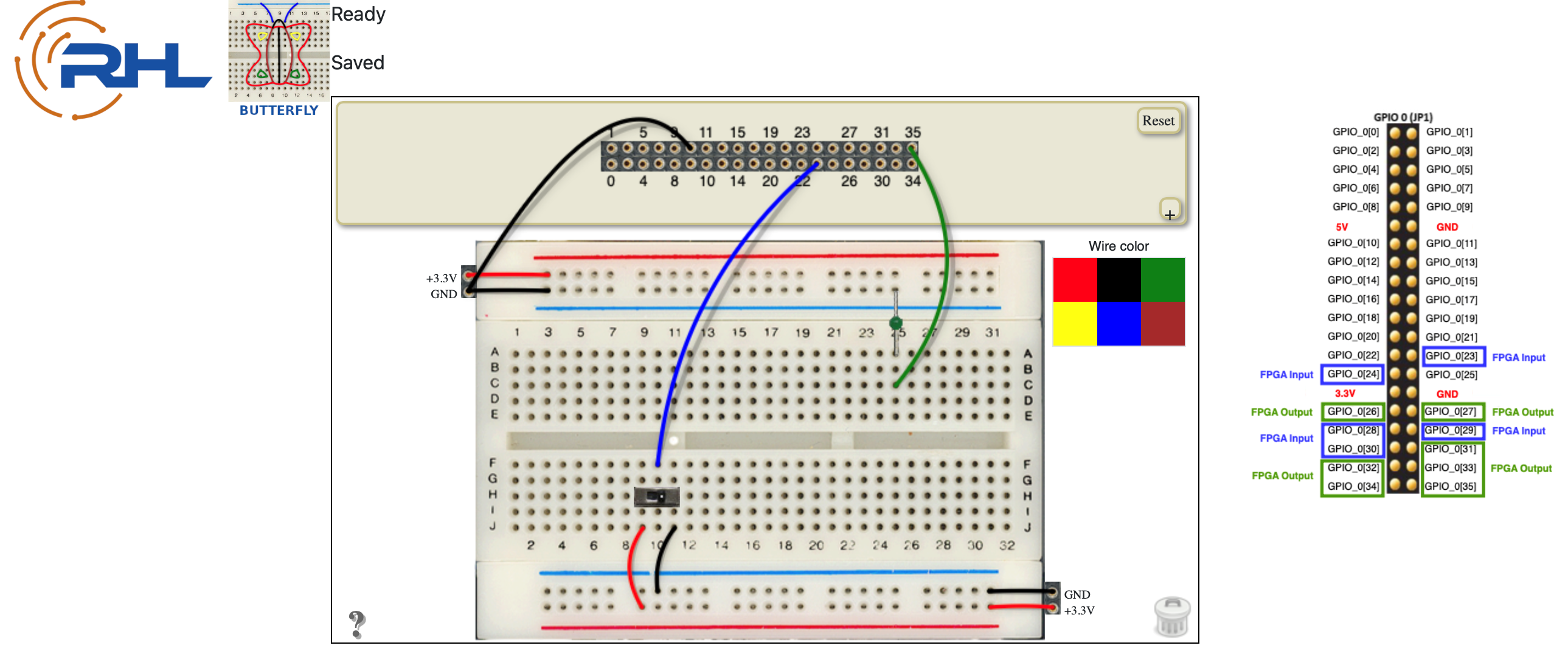

   1. Use off-board switches (i.e., not the SWs) to mimic the two photosensor outputs.
   2. Display the current car count on the seven-segment displays HEX1 and HEX0, with the following exceptions:
      1. If the counter reaches 18, display "FULL" on HEX5 – HEX2 (alongside "18" on HEX1-0).
      2. When the lot is empty, display "CLEAR" on HEX5 – HEX1 and the number "0" on HEX0.
   3. Use 2 off-board LEDs (i.e., not the LEDRs) to indicate the values of the outer and inner signals.
      1. A logical 1 should turn the corresponding LED on and a logical 0 should turn it off.
