CSE/EE 577: Medical Image Analysis

Autumn 2017

Assignment 3
Brain Image Segmentation
Assigned October 19, 2017; Due October 30, 2017 11:59pm

Materials

Download the images and data you need: hw2.zip.

Contents

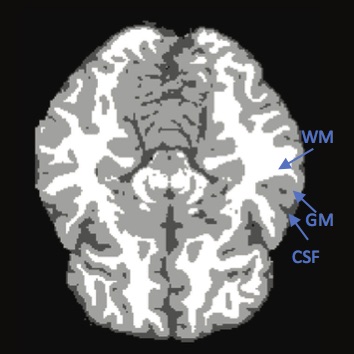

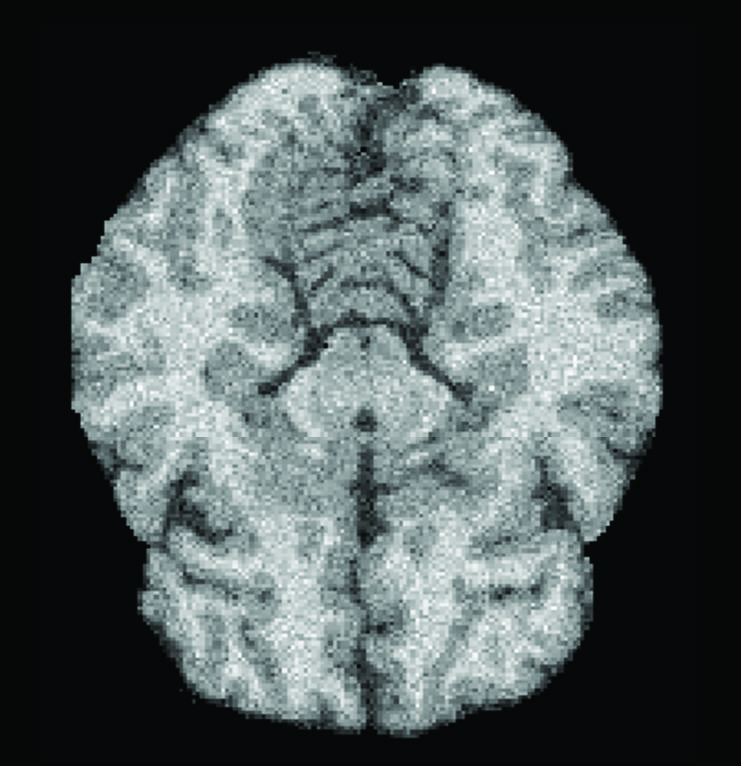

a) sample brain MRI image   b) segmented image

Brain MRI analysis is an essential task in many clinical applications. Fundamental components of structural brain MRI analysis include the classification of MRI data into specifict tissue types and the identification and description of specific anotomical structures. Among all the tissue types, the tissue elements we are typically interested in are: cerebrospinal fluid (CSF), gray matter (GM) and white matter (WM); see Figure b). The segmentation results are further used in different applications such as for analyzing anatomical structures, for studying pathological regions, for surgical planning, and for visualization purposes.

Brain image segmentation can be performed on 2D images, sequences of 2D images, or 3D volumetric images. There are several techniques to achieve the segmentation. They can be classfied into thresholding methods [1, 2, 3], clustering methods [4, 5, 6], edge detection methods [7, 8, 9], region-based methods[10, 11], model-based methods[12, 13, 14] and Hidden Markov Random Field methods [15, 16, 17].

In this assignment, we will try some basic 2D thresholding and clustering method to find the 3 interesting regions in the testing brain MRI images given 3 training images with their groundtruth labels. The MRI images and their corresponding labels are from the normal anatomical models simulated from BrainWeb (T1-weighted).

In addition to the training and testing images, we will also provide you with the other pre-labeled data. Feel free to use them as groundtruth to train other segmentation models.

Matlab code and Explanations

Read in the 3 given training images and 3 corresponding labels. Cerebrospinal Fluid (CSF), label =1; Grey Matter (GM), label =2; White Matter (WM), label =3.

clc;clear all;close all;

%read in all the training images
for i =1:3
trainImages(:,:,i)=imread(['train/',num2str(i),'.jpg']);
load(['train/',num2str(i),'.mat']);
trainLabels(:,:,i)=label;
end
[r,w,n]=size(trainImages);

Here we calculate the mean CSF/GM/WM values for reference later.

%%
%calculate the mean CSF/GM/WM values
meanCSF = mean(trainImages(trainLabels==1));
meanGM = mean(trainImages(trainLabels==2));
meanWM = mean(trainImages(trainLabels==3));

By observing the training and testing images, you might notice that besides the inner brain region, there are some outer non-brain regions such as skulls. It's hard to differentiate them from the inner brain region using only pixel intensities. Try to first remove the outer region using image morphology.

%%
% TODO hint: remove the outer brain region, consider using imerode/imdilate to
%disconnect the inner and outer region. The inner brain region has more
%pixels. Hint: consider using bwconncomp to extract the largest connecting region.
testimage = imread('test/1.jpg');
mask = double(testimage> );

Cluster the remaining pixels using k-means method. You might need to explore the best k value.

% TODO hint: use kmeans to cluster the pixels according to their intensities

[cluster_idx, cluster_center]

cluster_center will give you the mean value of each cluster. Use the meanCSF/meanGM/meanWM values computed from training images to find the corresponding labels on the testing image. Assign label 1 to CSF, 2 to GM and 3 to WM. Visualize your segmentation result and compare it to the groundtruth provided.

%%
result = uint8(zeros(r,w));
% TODO hint: use the meanCSF/meanGM/meanWM value to find the corresponding
%labels.


load('test/1.mat');
groundtruth = label;
figure;imshow(double(result)/3));
figure;imshow(double(abs(result-groundtruth)/3);


To Do

Extra Credits

You are welcome to try other fancy techniques to segment and label the 3 parts. You can use the all the simulated brain images (data.zip) we provided as training data.

Turn-In

Turn in your Matlab code, the parameters you choose, the segmented result and your comparison to groundtruth for the 3 test images. You can paste them into a readable document or put them into a zip file. Turn in them through Dropbox.

Homework is due on October 18 (Wednesday) by 11:59 PM PST.

This assignment can be done alone or in groups. If you do not know and/or do not have Matlab, we will pair you with someone who does, and you can get help from Shu.
