Single View Modeling Chris Gamble & Jen Smith
CSE455 - Computer Vision
Project 3 Artifact

3D Model

We had a lot of problems just trying to use the interface. We had issues with the homography, texture mapping, and so many program crashes that we eventually gave up. These artifacts are about the best we were able to manage.

The source image is a painting by Rene Magritte from 1938.

Rene Magritte - Time Transfixed (1938)

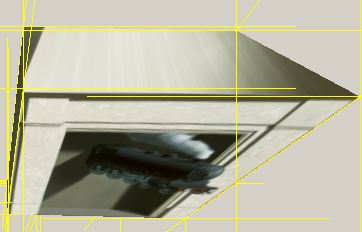

Screenshot of user interface showing points and lines
Click here to view the VRML model

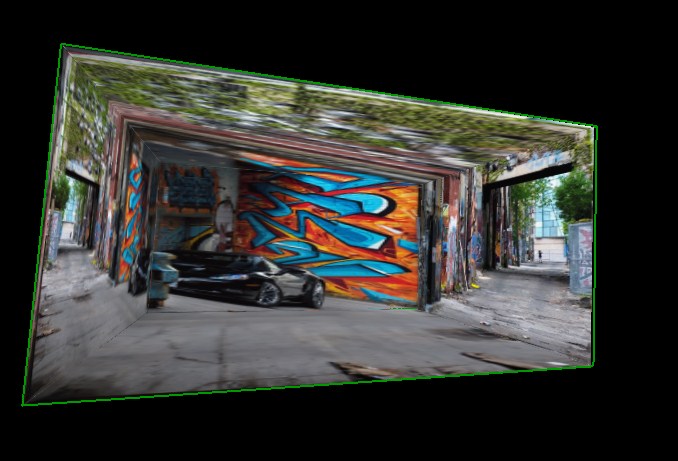

Reverse Perspective

...Or not. Our reverse perspective never worked correctly, and the interface crashed every time we tried to save the unwrapped model. Purely by fluke, we managed to get a model that while still not right, wasn't entirely broken. It gives a really interesting optical illusion when you interact with it.

The photo was found on a Corvette owners' forum online. The photographer's name is Rob Smith.

Source image courtesy of robsmithphotography.com

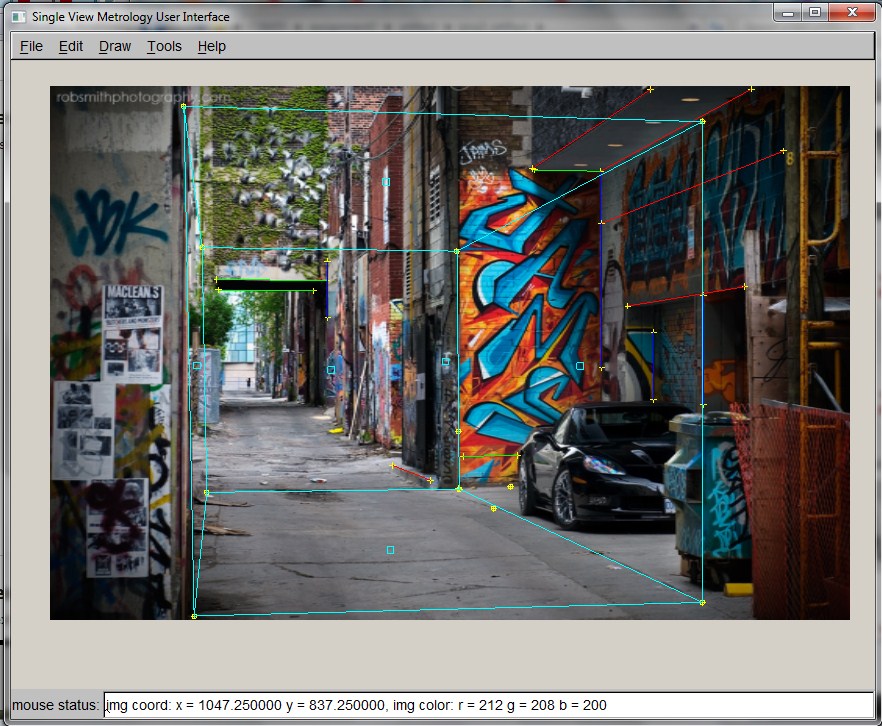

Screenshot of user interface showing points and lines
Click here to view the VRML model

Textures

Most of our textures never did map like they were supposed to. However, we did end up with a few interestingly warped images.

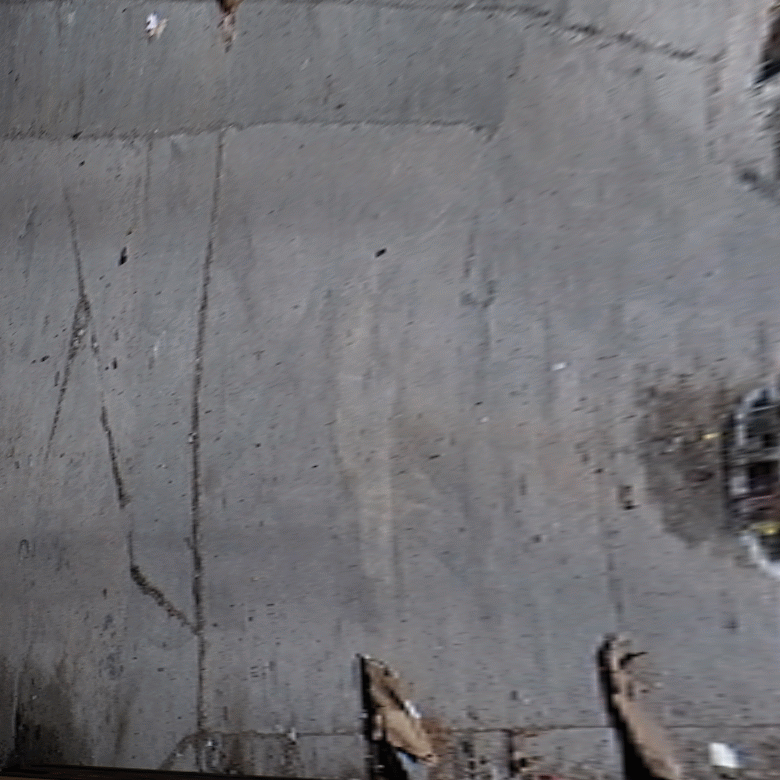

Street texture

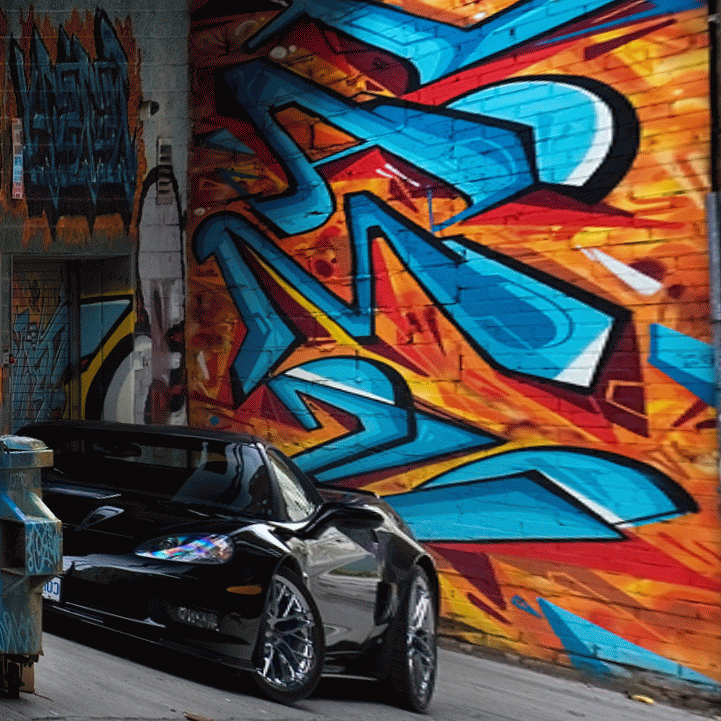

Interesting exaggeration in this one
Fireplace texture
