Projects

Project instructions and specifications.

  1. Project Setup
    1. Install Git
    2. Install IntelliJ
    3. Generate SSH keys
    4. Obtain and run project code
    5. Pushing to Git
    6. Pipeline Tests
    7. Running Husky Maps

Why does 373 + 1 evaluate to 374 while "373" + "1" evaluate to "3731"? Underlying this question is the concept of a data type. In Java, every variable has a data type like int or String. Data types combine representation and functionality. An int can only represent integer numbers within a certain range and the plus operator computes the sum of the two values. A String, on the other hand, represents data as a sequence of characters and the plus operator appends the two strings.

Abstract data types (ADTs) are data types that do not specify a single representation of data and only include a specification for the functionality of the data type. In Java, abstract data types are often represented using interfaces like List, Set, or Map. Java provides implementations or specific representations of each interface through classes like ArrayList, TreeSet, or HashMap.

The projects in this course aim to highlight the relationship between abstractions, implementations, and problems. The purpose of programming in this course is to explore the capabilities and design effort that goes into writing a specification. But programming is only a small portion of the projects: a much larger emphasis is placed on comparing the qualities of different solutions. The goal of the projects is learn the how and the why hidden within the project specifications through a synthesis of programming, analysis, and communication.

To start working on the projects, follow the setup steps below.

Project Setup

Install Git

Git is a version control system (VCS), a tool for distributing, managing, and sharing code with other people. Install Git by following the instructions according to your computer’s operating system.

Windows
Download and install Git. All the default settings will work.
macOS
From Finder, navigate to Application | Utilities | Terminal. Type git --version into the terminal and press Enter. If you see a download prompt, follow the instructions.
ChromeOS
At the bottom right, select the time. Then, select Settings | Advanced | Developers and Turn On the Linux development environment. Finally, follow the Linux instructions for all remaining setup.
Linux
Install git using your package manager. On Debian, Ubuntu, or other apt-managed systems, type sudo apt install git into the terminal and press Enter.

The sudo command may require a password prompt. When you type into the password prompt, nothing will appear. This is a security feature: your typing is intentionally hidden!

Install IntelliJ

Download and install the latest version of IntelliJ IDEA Community Edition for your computer’s operating system. IntelliJ is an integrated development environment that is helpful for writing complex programs that span multiple Java classes. The latest version is required for this course. Open the Standalone installation guide, select your computer’s operating system, and follow the steps.

When downloading IntelliJ, we only need the completely free IntelliJ IDEA Community Edition. The download site promotes IntelliJ IDEA Ultimate; scroll down to find IntelliJ IDEA Community Edition. If you already have IntelliJ installed, be sure to update it to the latest version before proceeding.

Once IntelliJ is installed, run IntelliJ IDEA and select Skip Remaining and Set Defaults. You should see the Welcome to IntelliJ IDEA screen.

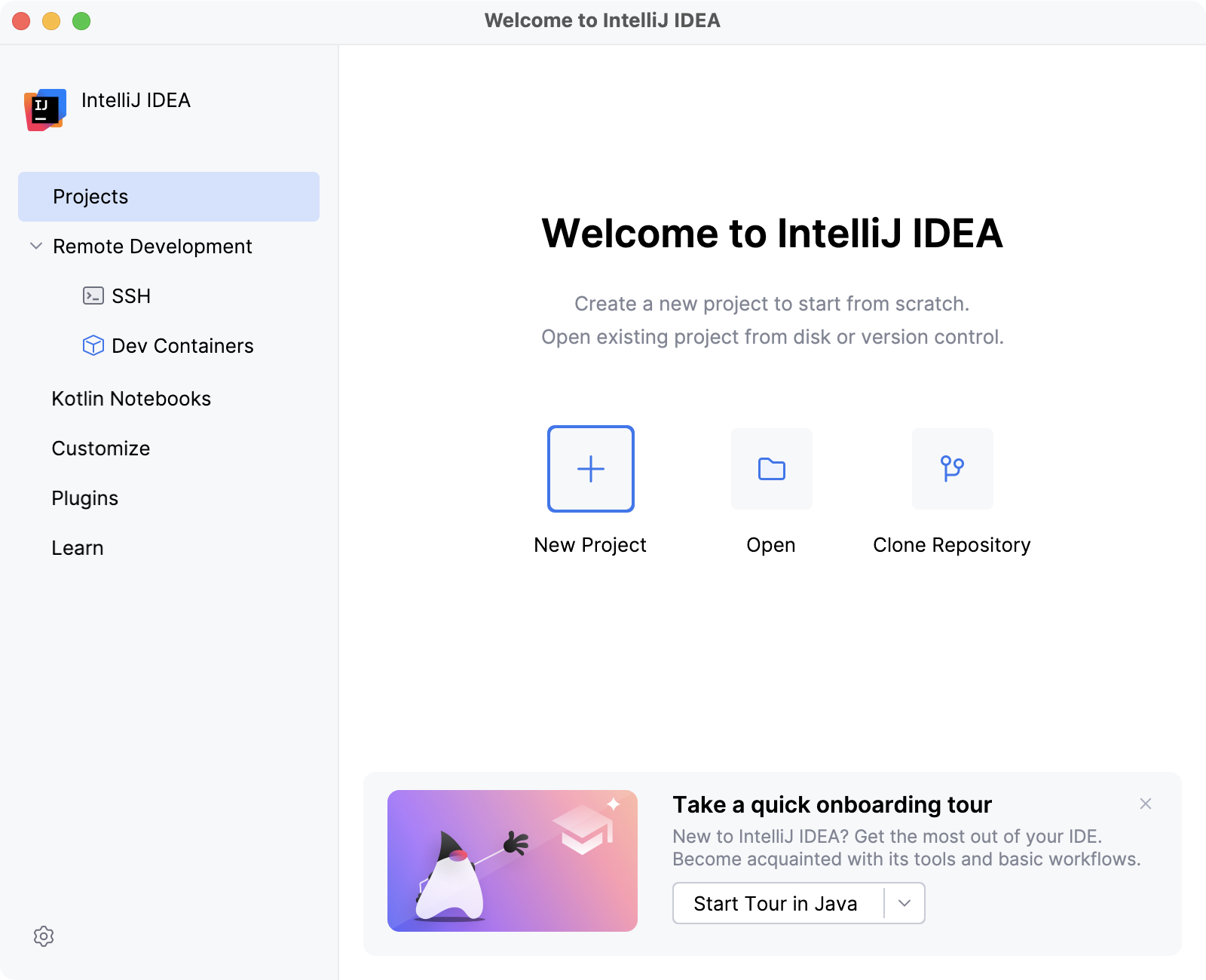

Welcome screen

Next, we have a few more setup steps before we can proceed with obtaining the project code. From the Welcome to IntelliJ IDEA screen:

  1. In the banner at the bottom, choose Enable New UI and restart IntelliJ.
  2. In the left sidebar, select Plugins, search for “jGRASP” in the marketplace, and then install the jGRASP plugin.
  3. In the left sidebar, select Projects (if it is not already selected). In the space at the bottom, choose Start Tour in Java and complete the onboarding tour.

Generate SSH keys

Your project code will be stored on CSE GitLab, a service provided by the Allen School to securely and privately store your coursework. CSE GitLab requires SSH keys: computer-generated passwords used to securely authenticate your computer to CSE GitLab.

  1. In IntelliJ, open the Terminal tool window.
  2. In the terminal, generate an SSH key pair with the command ssh-keygen -t ed25519
  3. At each prompt, press Enter to continue and accept the default settings.
    • When promoted to “Enter file in which to save the key”, do not enter a file name. Press enter to accept the default file name and location.
    • When prompted to “Enter a passphrase”, press enter without entering a passphrase.
  4. Copy your public SSH key with the command cat ~/.ssh/id_ed25519.pub
  5. In your browser, sign into CSE GitLab using your UW NetID.
  6. Visit the SSH Keys user settings by navigating to your Profile > Preferences > SSH Keys on the left sidebar. Then, paste the public SSH key in the Key field.
  7. Give it a title if it doesn’t already have one and then press Add key.

Obtain and run project code

Now that we’ve installed the required software and configured our computer so that it can securely communicate with CSE GitLab, let’s get the code! This step requires the project repositories to be setup, which will be ready for enrolled students within the first week of the course.

  1. Visit CSE GitLab and you’ll be greeted by a repository named after your UW NetID.
  2. Visit your private repository, press the blue Code button, and copy the Clone with SSH address. Don’t copy the “Clone with HTTPS” address! The correct address should begin with git@.
  3. Open IntelliJ on your computer. From the Welcome to IntelliJ IDEA screen, select Projects from the sidebar and then Get from VCS. Paste your SSH address and choose a directory on your computer to store your private repository.
  4. If you see an SSH Confirmation window pop-up, check that the fingerprint matches the CSE GitLab fingerprint. Compare the value to the table entries under the column SHA256. If it matches one of the values, then accept the connection. If it doesn’t match any of the values, do not accept the connection and write an Ed Discussion question with the fingerprint value that your computer shows.

The first time you open the project, IntelliJ will ask you whether to trust the project. Choose Trust Project so that IntelliJ has your permission to run code.

IntelliJ says "Could not read from remote repository" and won't let me clone the project!

If your console also says “Your SSH Key has expired” or “Make sure you have the correct access rights and the repository exists”, check your GitLab account to make sure you don’t have any expired SSH keys! Delete any expired keys before trying to clone the project again.

After a few seconds, IntelliJ will open the main editor screen. If IntelliJ asks you to Load Gradle Project and start indexing, please accept this. This process may take some time.

Please make sure that IntelliJ has the correct settings to run on IntelliJ IDEA and not Gradle.

Go to IntelliJ settings -> Build, Execution and Deployment -> Build Tools -> Gradle and change BOTH build and run using and run tests using to the IntelliJ IDEA option instead of Gradle.

Please check that you are using JDK 17, and not any other version that was detected.

From the main menu select File | Project Structure. In the Project Structure window, check that the SDK option says 17.

Otherwise, open the SDK dropdown, select Add SDK | Download JDK and choose Version 17 as seen below.

Change the project SDK

Click OK and try running the BrowserHistory class in IntelliJ, as seen in the video below.

  1. Look at the left side of the screen for the Project tool window that shows all the files in the project.
  2. In the project tool window, double-click to open the src folder, then main and java (if necessary).
  3. In the open folder, double-click the © BrowserHistory class. The © icon to its left indicates that it’s a Java class.
  4. In the new tab for the BrowserHistory class, click the green play ▶️ in the gutter. In the dropdown, select the option to Run ‘BrowserHistory.main()’.

In the run tool window, you should begin to see some text indicating that the class is being run. Some of these messages are provided by Gradle, the build system for the course projects. As long as you see the following main method output somewhere in the run tool window, you’re all set!

[uw.edu, my.uw.edu, cs.uw.edu, canvas.uw.edu]
[cs.uw.edu, notify.uw.edu]

Now that you’re able to run the simple BrowserHistory class, let’s try running the more complicated MapServer class. If everything is successful, you’ll see this flurry of messages appear in the Run tool window indicating that the app has launched.

[main] INFO io.javalin.Javalin - Starting Javalin ...
[main] INFO org.eclipse.jetty.server.Server - jetty-11.0.20; built: 2024-01-29T21:04:22.394Z; git: 922f8dc188f7011e60d0361de585fd4ac4d63064; jvm 17.0.13+11-LTS
[main] INFO org.eclipse.jetty.server.session.DefaultSessionIdManager - Session workerName=node0
[main] INFO org.eclipse.jetty.server.handler.ContextHandler - Started o.e.j.s.ServletContextHandler@ed7f8b4{/,null,AVAILABLE}
[main] INFO org.eclipse.jetty.server.AbstractConnector - Started ServerConnector@65d6b83b{HTTP/1.1, (http/1.1)}{0.0.0.0:8080}
[main] INFO org.eclipse.jetty.server.Server - Started Server@2ea227af{STARTING}[11.0.20,sto=0] @3280ms
[main] INFO io.javalin.Javalin -
       __                  ___           _____
      / /___ __   ______ _/ (_)___      / ___/
 __  / / __ `/ | / / __ `/ / / __ \    / __ \
/ /_/ / /_/ /| |/ / /_/ / / / / / /   / /_/ /
\____/\__,_/ |___/\__,_/_/_/_/ /_/    \____/

       https://javalin.io/documentation

[main] INFO io.javalin.Javalin - Javalin started in 496ms \o/
[main] INFO io.javalin.Javalin - Listening on http://localhost:8080/
[main] INFO io.javalin.Javalin - You are running Javalin 6.1.3

Pushing to Git

Now that we’ve setup the project, this last step is to help ensure a smoother collaborative software development process. In the Git version control system, there isn’t just one history of all the changes to a codebase. Git is designed to allow multiple developers to work together and view the same codebase by merging code together onto “branches.” For this project, all of the work you will do should be committed and pushed to the main branch.

As you work on the projects, you can share your code with the staff by:

  1. Clicking Git | Commit from the menu bar
  2. On the left, check the boxes of the changes you would like to stage
  3. Write a descriptive commit message below the checked boxes, then click Commit
  4. Click Git | Push from the menu bar

New to Git? Please see official documentation to Commit and Push Changes from IntelliJ as a starting point. Also see Gitlab’s Getting Started guide to Git.

Any of the staff can then visit your private GitLab repository to access your version of the code.

Pipeline Tests

Now you are set to start implementing the projects. Once you make the final commit and push for your project, on Gitlab, please find your repository online. Then,

  1. Click the Build button on the leftside bar
  2. Click Pipelines on the leftside bar

The topmost status will show whether you passed any of the project tests in this class. Each stage represents the following stages: Project Deques, Project Autocomplete, Project Priority Queues, Priority Shortest Paths, and all Projects. Make sure there is a green checkmark for the stage for the associated project you are submitting.

While you can run the tests locally on your own computer (in src/test/java) and check that you pass them, TAs will be using this pipeline to ensure that your code passes the tests.

Running Husky Maps

You’re done! All the app features work because we’ve provided reference implementations for each interface that we’ll learn in this class. The goal of this approach is to enable you to compare different ways to implement the same functionality, each with their own trade-offs. Through studying interfaces and implementations, we’ll gain a deeper understanding about why programs are designed the way they are. You can now visit localhost:8080 to try the web app for yourself, but the map images won’t load without the optional steps below.

How do I enable map images in Husky Maps?

To see the map images, sign up for a free MapBox account to get an access token. Once you have your access token, in the IntelliJ toolbar, select the “MapServer” dropdown, Edit Configurations…, under Environment variables write TOKEN= and then paste your token. Re-run the MapServer class to launch the web app and enjoy the “Ice Cream” map style by Maya Gao.

How do I let other people visit my Husky Maps?

Running Husky Maps in IntelliJ will only allow you (or whomever is using your computer) to access the app. In order to allow anyone on the internet to use your app, we’ll need to deploy it to the web. Optionally, you may follow the Deployment instructions in the project README.md to learn how to deploy the app to the web for free.

This page is dedicated to Rohan Pujare, whose considerable dedication and contribution toward the infrastructure of CSE 373 continues to motivate and inspire generations of TAs after him.
