# [CSE 340](/courses/cse340/23sp/schedule.html) Lab 1: Doodle Spring 23

## Introduction to Doodle

.title-slide-logo[
![:img Android Logo](img/android-logo.png)
]
---
# Doodle Assignment

.left-column50[
<div class="mermaid" style="width: 100%">
classDiagram

Activity <|-- AbstractMainActivity
  AbstractMainActivity <|-- Part1Activity
  AbstractMainActivity <|-- Part2Activity
  AbstractMainActivity <|-- Part3Activity

ImageView <|-- DrawView
  DrawView <|-- CircleView
  DrawView <|-- TextView
  DrawView <|-- LineView

class DrawView {
	+getBrush()
    #initFromParentCoords()
    #onDraw()
  }

class AbstractMainActivity {
    #PHONE_DIMS
    +onCreate()
    *doodle()
  }

</div>
]
.right-column50[
- `DrawView` can draw on screen (and be moved around). You will implement part of it. It inherits from [View](https://developer.android.com/reference/android/view/View).
- You will implement subclasses `CircleView`, `TextView` and `LineView`.
- AbstractMainActivity (which you don't edit) *inherits from* [Activity](https://developer.android.com/reference/android/app/Activity).
]

???
Green: Android toolkit
Blue: Classes we provide you don't have to modify
Yellow: Classes you implement

Remind students that they did do inheritance in 142/143 like with Critters.

---
# Implementing `initFromParentCoords`

```java
initFromParentCoords(float parentX, float parentY)
```

### Params:
- `parentX`, `parentY`: This is the position your view should be drawn at *in parent coordinates*
- What is this in child coordinates? When you're drawing in onDraw()... you'll need to draw from **child coordinates**.

???
answer is (0,0)
help them see why!

---
# Implementing `CircleView`

Circle is specified using its center (provided in *parent coordinates*) and radius.  How do you translate this to child coordinates?

How do you actually draw the circle? It is drawn in *child coordinates*

---
# Implementing `LineView`

.left-column[

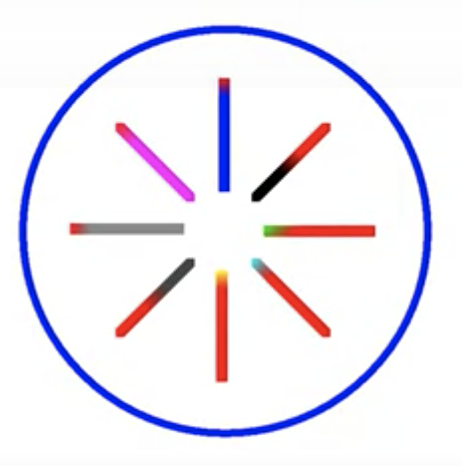

![:img Picture of a blue circle with multicolored lines. All lines have red on the outside and transition to a different color in the middle, 100%, width](img/lines.png)
]
.right-column[Lines are specified using a start and end point. They can be drawn in any direction.

But we need to position the child's *top left* corner. No matter which line.

It is ok if the diagonal lines' ends look "cut off", as seen in the spec and the picture on the left.
]
---
# Implementing `LineView`
- Examine the Direction.java file
- Calculate which Direction each endpoint is in. This uses the Direction enums we gave you.
- If a line is going from parent coordinates (0, 0) to (15, 100)... then where are the start and end points according to Direction?
---
# Android Debugging Tips

Resource: [https://developer.android.com/studio/debug](https://developer.android.com/studio/debug)

---
layout:none

# Px vs. dp

- Always use dp (density independent pixels) when specifying the physical size of UI elements

- Why not use pixels?
  - Different screen sizes have different number of pixels and therefore different pixel densities
  - So if you use pixels to define UI element sizes, they will be inconsistent between screens with different pixel densities

.grid[

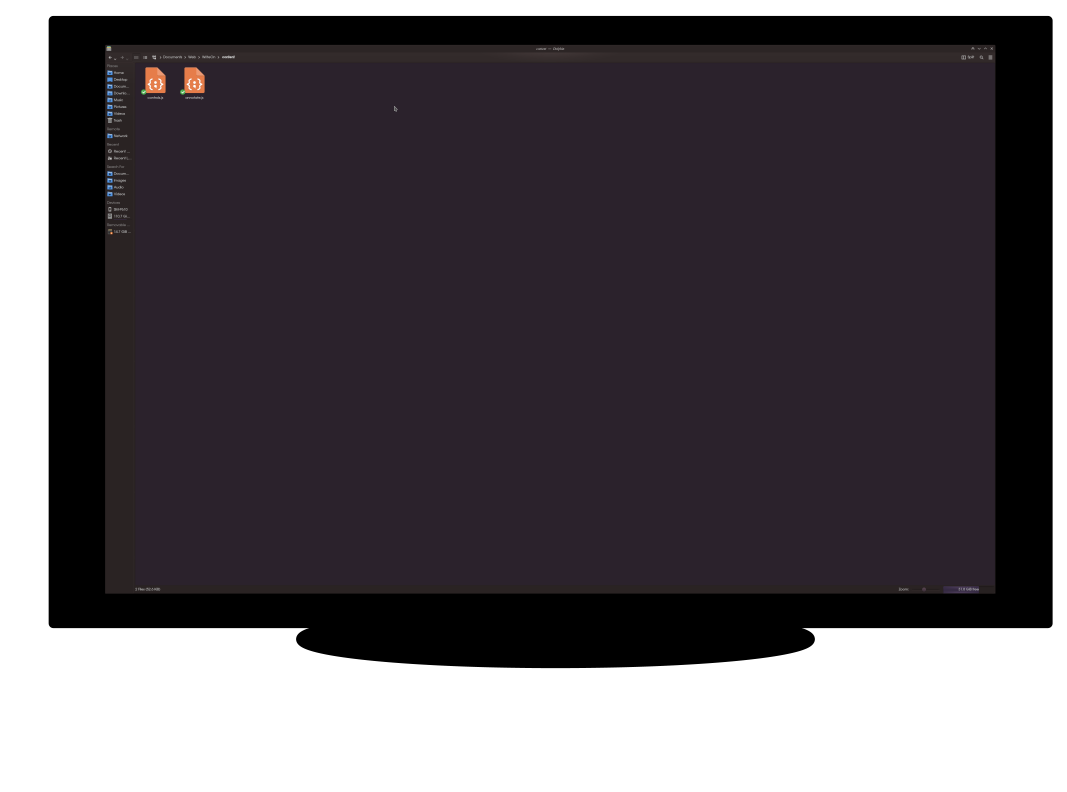

![:img Using pixel units UI will look too small on high-resolution displays and too large on low resolution displays, 30%, width](img/app-ui-too-small.png)
![:img On low-resolution displays the same code can make an app appear too large,30%, width](img/app-ui-too-big.png)
]
---
layout:none

# Px vs. dp

- Dp are flexible units that scale to have uniform dimensions on any screen.
- They provide a flexible way to accommodate a design across platforms.
- A `dp` is equal to one physical pixel on a screen with a density of 160 pixels per inch
- We provide a class that helps you with translation in Doodle: `DimHelp`
- For more info see [Support different pixel densities](https://developer.android.com/training/multiscreen/screendensities).
