Sensing and Machine Learning

# Google maps - Hall of Fame & Hall of Shame

.left-column[
<br><br>
Do this now: [poll](https://edstem.org/us/courses/21053/lessons/31195/slides/180617)
]
.right-column[
![:img google maps,100%,width](img/ml/google.jpg)
]

.footnote[Picture from [Machine Learning on your Phone](https://www.appypie.com/top-machine-learning-mobile-apps)]

???
fame/shame
neighborhood traffic...
shorter commutes...
---
name: inverse
layout: true
class: center, middle, inverse
---

# Sensing and Machine Learning

Lauren Bricker

CSE 340 Spring 2022

.footnote[Slides credit: Jason Hong, Carnegie Mellon University
 [Are my Devices Spying on Me? Living in a World of
Ubiquitous
Computing](https://www.slideshare.net/jas0nh0ng/are-my-devices-spying-on-me-living-in-a-world-of-ubiquitous-computing);
]

---
layout: false

[//]: # (Outline Slide)
# Today's Agenda

**Do this now**: Answer the [poll](https://edstem.org/us/courses/21053/lessons/31195/slides/180617) in Ed

- Administrivia
  - Undo code and video due Fri 20-May, 10pm
  - Undo reflection due Sun 22-May, 10pm
  - Final project info out Fri 20-May
- Learning goals
  - Discuss useful applications of sensing
  - Investigate Sensing and Location basics
  - Define different types of Context Aware Apps
  - Briefly define Machine learning (ML) and how it figures into context-aware apps
  - Consider the ethical and security implications of context-aware apps
---

# Smartphones
.left-column[
[Polls](https://edstem.org/us/courses/21053/lessons/26122/slides/152226): How many of you
- sleep with your phone?
- check your phone first thing in the morning?
- use your phone in the bathroom?
]

.right-column[
![:img Millenial with phone in bed, 100%,width](img/ml/phone-bed.jpg)
]
---

# Smartphones Fun Facts about Millennials

.left-column[
![:fa thumbs-down] 83% sleep with phones
]
.right-column[
![:img Millenial with phone in bed, 100%,width](img/ml/phone-bed.jpg)
]
---
count: false

# Smartphones  Fun Facts about Millennials

.left-column[
![:fa thumbs-down] 83% sleep with phones

![:fa thumbs-down]  90% check first thing in morning
]
.right-column[
![:img Millenial with phone in bed, 100%,width](img/ml/phone-bed.jpg)
]
---
count: false

# Smartphones  Fun Facts about Millennials
.left-column[
![:fa thumbs-down] 83% sleep with phones

![:fa thumbs-down] 90% check first thing in morning

![:fa thumbs-down]  1 in 3 use in bathroom

]
.right-column[
![:img Millenial with phone in bed, 100%,width](img/ml/phone-bed.jpg)

]
---
# Smartphone Data is Intimate

![:img Picture of smart phone screens with phone numbers; map; and sensor data, 60%,width](img/ml/personal.png)

| Who we know           | Sensors               | Where we go   |
|-----------------------|-----------------------|---------------|
| (contacts + call log) | (accel, sound, light) | (gps, photos) |

---
# Example: COVID-19 Contact Tracing

.left-column-half[
![:img Picture of a COVID-19 contact tracing app showing motivational text like Join the fight and Get motivated if you come into contact with COVID-19, 100%, width](img/ml/contact-tracing.jpg)
]
.right-column-half[
- Install an app on your phone
- Turn on bluetooth
- Keep track of every bluetooth ID you see
- Sends bluetooth ID (securely).
- Will only notify people if you report you contracted COVID
- That's when others are notified (securely and privately) that they were in the
vacinity of someone who contracted COVID
]

---
# Other Useful Applications of Sensing

![:img Picture of LeafSnap app, 60%,width](img/ml/leafsnap.jpg)

.footnote[[LeafSnap](http://leafsnap.com/) uses computer vision to
identify trees by their leaves]

---
# Other Useful Applications of Sensing

![:img Picture of Aipoly app, 60%,width](img/ml/aipoly.jpg)

.footnote[[Vision AI](https://www.aipoly.com/) uses computer vision to
identify images for the Blind and Visually Impaired]

---
# Other Useful Applications of Sensing

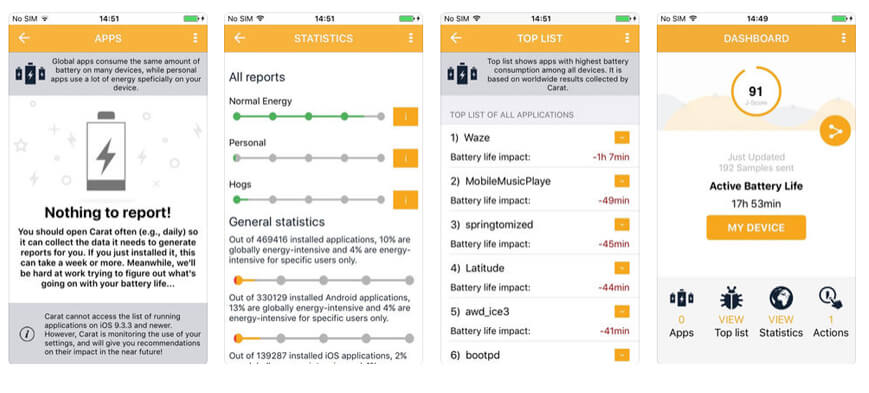

![:img Picture of Carat app, 60%,width](img/ml/Carat.jpg)

.footnote[[Carat: Collaborative Energy
Diagnosis](http://carat.cs.helsinki.fi/) uses machine learning to save
battery life]
---
# Other Useful Applications of Sensing

![:img Picture of Imprompdo app, 50%,width](img/ml/imprompdo.jpg)

.footnote[[Imprompdo](http://imprompdo.webflow.io/
) uses machine learning to recommend activities to do, both fund and todos]

---
# How do these systems work?

.left-column50[
## Old style of app design
<div class="mermaid">
graph TD

I(Input) --Explicit Interaction--> A(Application)
A --> Act(Action)

classDef normal fill:#e6f3ff,stroke:#333,stroke-width:2px;

class U,C,A,I,S,E,Act,Act2 normal
</div>
]
--
count: false
.right-column50[
## New style of app design
<div class="mermaid">
graph TD

U(User) --Implicit Sensing--> C(Context-Aware Application)
S(System) --Implicit Sensing--> C
E(Environment) --Implicit Sensing--> C
C --> Act2(Action)

classDef normal fill:#e6f3ff,stroke:#333,stroke-width:2px;

class U,C,A,I,S,E,Act,Act2 normal
</div>
]

---

.left-column-half[
## Types of Sensors

.right-column-half[
<br><br>
![:img Picture of different sensors, 70%, width](img/ml/android-sensors.png)

- Which of these are Event Based?
- Which of these are "Sampled"?
]

???

---
.left-column-half[
## Types of Sensors

.right-column-half[
## Contact Tracing
Other than Bluetooth, what sensors might be useful for contact tracing? Why?

]
---
# Sensing: Categories of Sensors

* Motion Sensors
  * Measure acceleration forces and rotational forces along three axes
  * Includes accelerometers, gravity sensors, gyroscopes, and rotational vector sensor
  * Accelerometers and gyroscope are generally HW based, Gravity, linear acceleration, rotation
  vector, significant motion, step counter, and step detector may be HW or SW based
* Environmental Sensors
  * Measures relative ambient humidity, illuminance, ambient pressure, and ambient temperature
  * All four sensors are HW based
* Position Sensors
  * Determine the physical position of the device.
  * Includes orientation, magnetometers, and proximity sensors
  * Geomagnetic field sensor and proximity sensor are HW based

---
# Location

- Locations are generally reported as Latitude and Longitude coordinates.
  - Generally reported using “Global Position System” (GPS)
  - Can also use cell tower or WiFi localization.
- Three ways to do this
  - [LocationManager](https://stuff.mit.edu/afs/sipb/project/android/docs/training/basics/location/locationmanager.html)
  - [Fused Location Provider API](https://developers.google.com/location-context/fused-location-provider)
      - Need to set up [Google Play Services](https://developer.android.com/google/play-services/setup)
      on the device (including emulators)
      - Less power consumption
  - [Google Awareness API](https://developers.google.com/awareness)
      - Required Google credits ($$$)

---

# Location: details

- Specify app permissions
  - Do we need to get the locations in the foreground or background?
  - Do we want a precise or approximate location?
- How do we want to get the data
  - At a particular time (once)
  - At regular intervals?
  - When a certain event occurs, like someone goes out of a boundary.

???

---
# Snapshots vs Fences

Listeners are used to receive sensor or location updates at different intervals
  - This is like taking a snapshot of the sensor or location at a period of time.

Fences (or Geofences) are a way to create an area of interest around
  a specific location. Listener is called any time a condition is true.

---
# Google Awareness API in Android

- A way to have your app react to the current situation
- Seven signals (time, location, places, activity (like walking), beacons, headphones, and weather)
- Allows for:
  - Ease of implementation
  - Better context data (raw signals are processed for quality)
  - Optimal system health (less impact on battery life)
- Includes two APIs
  - [Fence API](https://developers.google.com/awareness/android-api/fence-api-overview)
  - [Snapshot API](https://developers.google.com/awareness/android-api/snapshot-api-overview)

---
# Snapshot with Google Awareness API

Seting up the callback  (just like callbacks for other events)

``` java
Awareness.getSnapshotClient(this).getDetectedActivity()
  .addOnSuccessListener(new OnSuccessListener<DetectedActivityResponse>() {
      @Override
      public void onSuccess(DetectedActivityResponse dar) {
          ActivityRecognitionResult arr = dar.getActivityRecognitionResult();
      }
  })

```

---
# Fences with Google Awareness API

Notify you *every time* a condition is true

```java
// Create the primitive fences.
AwarenessFence walkingFence = DetectedActivityFence.during(DetectedActivityFence.WALKING);
```
Use the `FenceClient` to register a a fence. Requires a `FenceUpdateRequest`, then
use `FenceClient.updateFences()`

Need to call`addFence()` for each fence to add.

---
# Contact tracing

Question (answer on [Ed](https://edstem.org/us/courses/21053/lessons/31195/slides/180619)): Would you use Snapshots vs
Fences for the contact tracing app?

--
count: false

Answer : Fence

We want to be notified about *every* contact so we can record it

---
# Context Aware Apps

.left-column-half[
![:img Picture of a COVID-19 contact tracing app showing motivational text like Join the fight and Get motivated if you come into contact with COVID-19, 90%, width](img/ml/contact-tracing.jpg)
]
.right-column-half[
This is a **Context-Aware** app
- The app is using on board sensors (not user initiated input) to capture data
- The app "learns" information about the user

]
---
# Types of Context-Aware apps
.left-column[
![:img Picture of a mobile phone with a text message on screen containing a transcription of recent audio, 100%, width](img/ml/scribe4me.jpeg)
]
.right-column[
**Capture and Access**

- .red[Food diarying] and nutritional awareness via receipt analysis [Ubicomp 2002]
- .bold.red[Audio Accessibility] for deaf people by supporting mobile
sound transcription [Ubicomp 2006, CHI 2007]
- .red[Citizen Science] volunteer data collection in the field [CSCW
  2013, CHI
  2015]
- .red[Air quality assessment] and visualization [CHI 2013]
- .red[Coordinating between patients and doctors] via wearable
  sensing of in-home physical therapy [CHI 2014]

What Capture and Access apps can you think of?
]
---
# Types of Context-aware apps
.left-column[

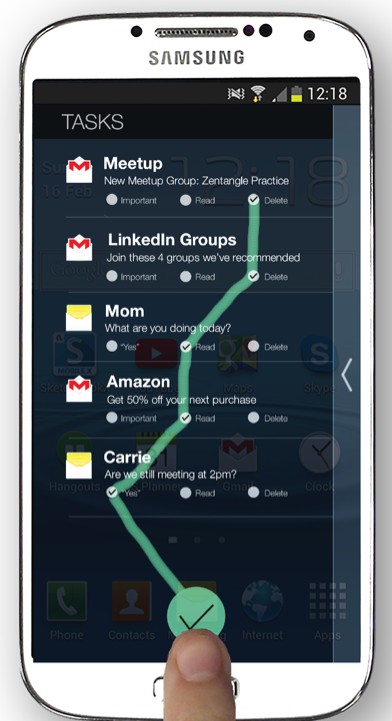

![:img Picture of a mobile phone with an unlock gesture that also labels emails for keeping or discarding, 100%, width](img/ml/proactive.png)
]
.right-column[
Capture and Access<BR>
**Adaptive Services (changing operation or timing)**

- .red[Adaptive Text Prediction] for assistive communication devices
  [TOCHI 2005]
- .red[Location prediction] based on prior behavior [Ubicomp 2014]
- .bold.red[Pro-active task access] on lock screen based on predicted user
  interest [MobileHCI 2014]

What Adaptive Services apps can you think of?

]
---
# Types of Context-aware apps
.left-column[
![:img example interaction above and on the surface of a phone supported by adding a depth camera to the front of the phone -- shows
interacting with text, 80%, width](img/ml/airtouch.jpg)

![:img example interaction above and on the surface of a phone supported by adding a depth camera to the front of the phone -- shows interacting with an image, 80%,width](img/ml/airtouch2.jpg)
]
.right-column[
Capture and Access<BR>
Adaptive Services (changing operation or timing)<BR>
**Novel Interaction**

- .red[Cord Input] for interacting with mobile devices  [CHI 2010]
- .red[Smart Watch Intent to Interact] via twist'n'knock gesture [GI
  2016]
- .red[VR Intent to Interact] vi sensing body pose, gaze and gesture
  [CHI 2017]
- .red[Around Body interaction] through gestures with the phone
  [Mobile HCI 2014]
- .red.bold[Around phone interaction] through gestures combining on and
  above phone surface [UIST 2014]

![:img example interaction above and on the surface of a phone supported by adding a depth camera to the front of the phone -- shows interacting with an image, 80%,width](img/ml/airtouch2.jpg)
]
.right-column[
![:youtube Interweaving touch and in-air gestures using in-air
gestures to segment touch gestures, H5niZW6ZhTk]

What Novel Interaction apps can you think of?

]

---
# Types of Context-aware apps
.left-column[
![:img Picture of an interface for simulating driving behavior providing feedback to the user about aggressive driving, 100%, width](img/ml/driving.png)

]
.right-column[
Capture and Access<BR>
Adaptive Services (changing operation or timing)<BR>
Novel Interaction<BR>
**Behavioral Imaging**

- .red[Detecting and Generating Safe Driving Behavior] by using
inverse reinforcement learning to create human routine models [CHI 2016,
2017]
- .red[Detecting Deviations in Family Routines] such as being late to
pick up kids [CHI 2016]

What Behavioral Imaging apps can you think of?

]
---
# Contact tracing

Question (answer on [Ed](https://edstem.org/us/courses/21053/lessons/26122/slides/152227)): What context aware
classification would you give the the contact tracing app?
- Capture and Access
- Adaptive Services
- Novel Interaction
- Behavioral Imaging

--
count: false

Answer : Capture and Access

We are capturing information about who you've been around,
and indirectly allowing someone else to access that information.

---
# Implementing Sensing: Using Data

.left-column50[
![:fa bed, fa-7x]
]
.right-column50[
## In class exercise

How might you recognize sleep?

- What recognition question
- What sensors
]
???

(sleep quality? length?...)

How to interpret sensors?

---
# Implementing Sensing: Using Data
.left-column50[
![:img Sleep trace for accelerometer and sound, 80%,width](img/ml/sleep.png)

]
.right-column50[
## In class exercise

- What recognition question (sleep quality? length?...)
- What sensors
- How to interpret sensors?
]

---
# How do we program this?

Write down some rules

Implement them

---
# How do we program this?

Old Approach: Create software by hand
- Use libraries (like JQuery) and frameworks
- Create content, do layout, code up functionality
- Deterministic (code does what you tell it to)

New Approach: Collect data and train algorithms
- Will still do the above, but will also have some functionality based
on ML
- *Collect lots of examples and train a ML algorithm*
- *Statistical way of thinking*

---
# This is *Machine Learning*

Machine Learning is often used to process sensor data
- Machine learning is one area of Artificial Intelligence
- This is the kind that’s been getting lots of press

The goal of machine learning is to develop systems that can improve
performance with more experience
- Can use "example data" as "experience"
- Uses these examples to discern patterns
- And to make predictions
---
# Two main approaches

![:fa eye] *Supervised learning* (we have lots of examples of what should be
 predicted)

![:fa eye-slash] *Unsupervised learning* (e.g. clustering into groups and inferring what
they are about)

![:fa low-vision] Can combine these (semi-supervised)

![:fa history]  Can learn over time or train up front

---
# How Machine Learning is Typically Used

Step 1: Gather lots of data (easy on a phone!)
--
count: false

Step 2: Figure out useful features
- Convert data to information (not knowledge!)
- (typically) Collect labels

---
count: false
# How Machine Learning is Typically Used

Step 1: Gather lots of data (easy on a phone!)

Step 2: Figure out useful features

Step 3: Select and train the ML algorithm to make a prediction
- Lots of toolkits for this
- Lots of algorithms to choose from
- Mostly treat as a "black box"

---
# Example: Decision tree for predicting premature birth

![:img decision tree, 50%,width](img/ml/decisiontree.png)

---
# Example: Deep Learning for Image Captioning

![:img Captioning Images. Note the errors,
40%,width](img/ml/captioning.png)

.footnote[[Captioning images. Note the
errors.](http://cs.stanford.edu/people/karpathy/deepimagesent/) Deep
learning now
[available on your phone!](https://www.tensorflow.org/lite)]

???
Note differences between these: one label vs many
---
# Training process

![:img ML Training Process, 60%,width](img/ml/training.png)

---
# How Machine Learning is Typically Used

Step 1: Gather lots of data (easy on a phone!)

Step 2: Figure out useful features

Step 3: Select and train the ML algorithm

Step 4: Evaluate metrics (and iterate)

???
See how well algorithm does using several metrics
Error analysis: what went wrong and why
Iterate: get new data, make new features
---
# Evaluation Concerns

Accuracy: Might be too error-prone

---
.left-column[
## Assessing Accuracy]
.right-column[

Prior probabilities
- Probability before any observations (ie just guessing)
- Ex. ML classifier to guess if an animal is a cat or a ferret based on the ear location
 - Assume all pointy eared fuzzy creatures are cats (some percentage will be right)
- Your trained model needs to do better than prior

Other baseline approaches
- Cheap and dumb algorithms
- Ex. Classifying cats vs ferrets based on size
- Your model needs to do better than these too
]

???
We did this to study gender's impact on academic authorship; doctors reviews

---
.left-column[
## Assessing Accuracy]

.right-column[
Don't just measure accuracy (percent right)

Sometimes we care about *False positives* vs *False negatives*

What examples do you know of false positives or false negatives?
]
--
.right-column[
![:img Hotdog vs not hot dog matrix, 55%,width](img/ml/hotdog.png)
]

.footnote[[Image Source](https://blog.nillsf.com/index.php/2020/05/23/confusion-matrix-accuracy-recall-precision-false-positive-rate-and-f-scores-explained/)]

---
.left-column[
## Assessing Accuracy]

.right-column[

|             |              | .red[Prediction]           |                            |
|-------------|--------------|----------------------------|----------------------------|
|             |              | **Positive**               | **Negative**               |
| .red[Label] | **Positive** | .red[True Positive (good)] | False Negative (bad)       |
|             | **Negative** | False Positive (bad)       | .red[True Negative (good)] |

Accuracy = (TP + TN) / (TP + FP + TN + FN)

Intuition: How many things did I get right in all of the total cases.
]
---
.left-column[
## Assessing Accuracy

## Precision
]

.right-column[

|             |              | .red[Prediction]           |                      |
|-------------|--------------|----------------------------|----------------------|
|             |              | **Positive**               | **Negative**         |
| .red[Label] | **Positive** | .red[True Positive (good)] | False Negative (bad) |
|             | **Negative** | .ref[False Positive (bad)] | True Negative (good) |

Precision = TP / (TP+FP)

Intuition: Of the positive items, how many right?

]

---
.left-column[
## Assessing Accuracy

## Recall
]
.right-column[

|        |              | Prediction                 |                            |
|--------|--------------|----------------------------|----------------------------|
| Actual |              | **Positive**               | **Negative**               |
|        | **Positive** | .red[True Positive (good)] | .red[False Negative (bad)] |
|        | **Negative** | False Positive (bad)       | True Negative (good)       |

Recall = TP / (TP+FN)

Intuition: Of all things that should have been positive, how many actually labeled correctly?
]

---
# Avoiding Overfitting

.left-column50[
Overfitting: When your ML model is too specific for data you have
- Might not generalize well

![:img overfitting, 80%,width](img/ml/overfitting.png)
]

--
count: false

.right-column50[
To avoid overfitting, typically split data into training set and test set
- Train model on training set, and test on test set
- Often do this through cross validation

![:img cross validation, 80%,width](img/ml/cross-validation.png)
]

---
# How Machine Learning is Typically Used

Step 1: Gather lots of data (easy on a phone!)

Step 2: Figure out useful features

Step 3: Select and train the ML algorithm

Step 4: Evaluate metrics (and iterate)

Step 5: Deploy
---
# What makes this work well?

Typically more data is better

Accurate labels important

Quality of features determines quality of results

.red[*NOT* as sophisticated as the media makes out]
--
count: false

.red[*BUT* ML can infer all sorts of things]
---
# AI/ML Not As Sophisticated as in Media

A lot of people outside of computer science often ascribe human
behaviors to AI systems
- Especially desires and intentions
- Works well for sci-fi, but not for today or near future

These systems only do:
- What we program them to do
- What they are trained to do (based on the (possibly biased) data)
---
# Concerns

Significant Societal Challenges for Privacy (see our security lecture)

--
count: false

Wide Range of Privacy Risks

| Everyday Risks     | Medium Risk         | Extreme Risks     |
|--------------------|---------------------|-------------------|
| Friends, Family    | Employer/Government | Stalkers, Hackers |
| Over-protection    | Over-monitoring     | Well-being        |
| Social obligations | Discrimination      | Personal safety   |
| Embarrassment      | Reputation          | Blackmail         |
|                    | Civil Liberties     |                   |

- It's not just Big Brother, it's not just corporations
- Privacy is about our relationships with every other individual and
  organization out there

---
# Concerns

Significant Societal Challenges for Privacy

Who should have the initiative?

--
- Does person initiate things? Or computer?
- How much does computer system do on your behalf?
  - Autonomous vehicle example: Some people think Tesla autopilot is full
    autonomous, leads to risky actions
- Initiative matters
  - Instead of direct manipulation, some smarts (intelligent agent) for automation
- Questions remain
  - What kinds of tasks should be automated / not?
  - Should "intelligence" be anthropomorphized?
  - How can user learn what system can and can’t do?
  - What are strategies for showing state of system?
  - What are strategies for preventing errors?

---
exclude: true

.left-column50[
## Mixed-initiative best practices
- Significant value-added automation
- Considering uncertainty
- Socially appropriate interaction w/ agent
- Consider cost, benefit, uncertainty
- Use dialog to resolve uncertainty
- Support direct invocation and termination
- Remember recent interactions
]
.right-column50[

![:img mixed initiative figure, 100%,width](img/ml/mixed-initiative.png)
]
---
exclude: true

![:img mixed initiative figure, 100%,width](img/ml/mixed2.png)
]
???
Can see what agent is suggesting, in terms of scheduling a meeting

---
exclude: true

![:img mixed initiative figure, 100%,width](img/ml/mixed3.png)
]
???
Uses anthropomorphized aganet
Uses speech for input
Uses mediation to help resolve conflict
---
exclude: true

.left-column[
## Mixed-initiative best practices
]

.right-column[
Built-in cost-benefit model in system
- If perceived benefit >> cost, then do the action
- Otherwise wait

Note that this is just one point in design space (1999), and still lots of open questions
- Ex. Should “intelligence” be anthropomorphized?
- Ex. How to learn what system can and can’t do?
- Ex. What kinds of tasks should be automated / not?
- Ex. What are strategies for showing state of system?
- Ex. What are strategies for preventing errors?
]
---

# Concerns

Significant Societal Challenges for Privacy

Who should have the initiative?

Bias in Machine Learning
---
.quote[Johnson says his jaw dropped when he read one of the reasons American
Express gave for lowering his credit limit:

![:fa quote-left] Other customers who have used their card at establishments
where you recently shopped have a poor repayment history with American
Express.
]

![:img news interview, 80%,width](img/ml/gma.png)

---
![:img bias figure, 60%,width](img/ml/bias.png)
---

# Concerns

Significant Societal Challenges for Privacy

Who should have the initiative?

Bias in Machine Learning

Understanding ML
--
count: false
- How does a system know I am addressing it?
- How do I know a system is attending to me?
- When I issue a command/action, how does the system know what it relates to?
- How do I know that the system correctly understands my command and correctly executes my intended action?

.footnote[
Belloti et al., CHI 2002 ‘Making Sense of Sensing’
]
---
# Wrong location-based recommendation

![:img wrong, 60%,width](img/ml/wrong.png)

Why did it not tell me about the Museum? How does it determine my location?
Providing explanations to these questions can make Intelligent systems Intelligible

Other examples: caregiving hours determined by insurance companies, etc

---
# Types of feedback

Feedback is crucial to user’s understanding of how a system works and helping
guide future actions
- What did the system do?
- What if I do W, what will the system do?
- Why did the system do X?
- Why did the system not do Y
- How do I get the system to do Z?
---
# Summary ML and ethics

- ML is powerful (but not perfect), often better than heuristics
- Basic approach is collect data, train, test, deploy
- Hard to understand what algorithms are doing (transparency)
  - ML algorithms just try to optimize, but might end up finding a proxy for race, gender, computer, etc
  - But hard to inspect these algorithms
  - Still a huge open question
- Privacy
  - How much data should be collected about people?
  - How to communicate this to people?
  - What kinds of inferences are ok?

---
# End of deck
