# Interaction Technique Design

Lauren Bricker

CSE 340 Spring 2022
---
layout: false

[//]: # (Outline Slide)
# Agenda

- Introducing key concepts for menus assignment

---

# What is a Menu in theory?

???
- Supports selection of an item from a fixed set of options
- Options are set and determined in advance
- Typically used for “commands” (verbs, things to do)
- Occasionally for selecting a value (e.g., picking a font)

--
count: false
.left-column-half[
- Supports selection of an item from a fixed set of options
- Options are set and determined in advance
- Typically used for “commands” (verbs, things to do)
- Occasionally for selecting a value (e.g., picking a font)

]

--
count: false

.right-column-half[
In Counter we saw a pre-defined "hamburger" menu and responded to user
selections through an `onOptionsItemSelected` callback
]
---
# What is a Menu in theory?
.left-column-half[
- Supports selection of an item from a fixed set of options
- Options are set and determined in advance
- Typically used for “commands” (verbs, things to do)
- Occasionally for selecting a value (e.g., picking a font)

Now we will create our own menu interactors!!!
]
--
.right-column-half[
<div class="mermaid">
stateDiagram-v2

[*] --> Selecting : Press/<BR>startSelection()
Selecting --> [*]: Release/<BR>endSelection()
Selecting --> Selecting: Drag/<BR>updateModel()
</div>

]

---
count: false

# What is a Menu in theory?
.left-column-half[
- Supports selection of an item from a fixed set of options
- Options are set and determined in advance
- Typically used for “commands” (verbs, things to do)
- Occasionally for selecting a value (e.g., picking a font)

Now we will create our own menu interactors!!!
]

.right-column-half[
<div class="mermaid">
stateDiagram-v2

[*] --> Selecting : Press/<BR>startSelection()
Selecting --> [*]: Release/<BR>endSelection()
Selecting --> Selecting: Drag/<BR>updateModel()
</div>

<br>
Works in all Menus!
]

---
# Example Menus Types

.left-column50[
## Pull down Menu

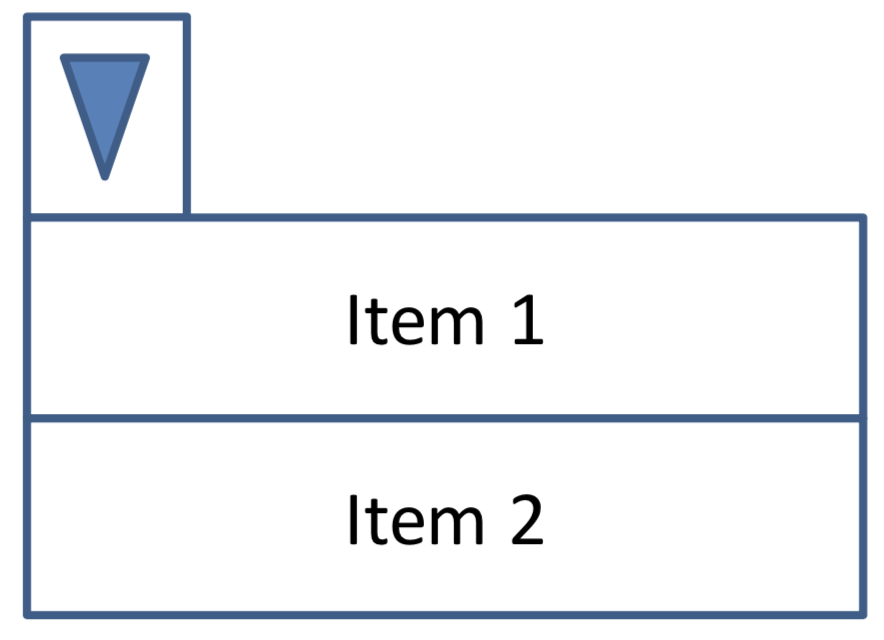

![:img Traditional Menu inside a web browser, 70%,width](img/menus/menu.png)
]
--
.right-column50[
## Pie Menu
![:img Pie Menu, 70%,width](img/menus/pie.jpg)
]

--
count: false
Which is better, and why?
--
count: false
This is question we're going to try to answer...

---
# Menus!
.left-column60[

HCI Goals:

- Explore Propositional Production Systems
- Define event handlers and bubbling
- Understand pie menus
- Create rectangular and non-rectangular interactors
- Design your own original interactor
- Record user study data
- Produce plausible experiment results (within expected ranges)
- Collect, parse, and interpret results collected from a study.

]

.right-column40[
Android Goals:

- Experience the Android event handling APIs
- Handle touch input
- Produce output with `onDraw()`
- Implement developer defined callbacks to maintain separation of concerns.
- Practice implementing state machines and event handling

]

---
# Menus Assignment

Goal: to compare pie menus, linear menus, and a custom menu you make!

We provide support for
- Testing your menus (`TestActivity`)
- Running the experiment (`ExperimentActivity`)

You implement
- Three different types of menus
- Some testing code

---

name: inverse
layout: true
class: center, middle, inverse
---
# Menus implementation

---
layout: false

# Menus Assignment

.left-column-half[
## Class Hierarchy

<div class="mermaid">
classDiagram

AbstractMainActivity <|-- ExperimentActivity
AbstractMainActivity <|-- TestActivity

AbstractMenuExperimentView <|-- MenuExperimentView
MenuExperimentView <|-- PieMenuView
MenuExperimentView <|-- NormalMenuView
MenuExperimentView <|-- CustomMenuView

class MenuExperimentView {
  essentialGeometry()
  onTouchEvent()
  startSelection()
  endSelection()
  updateModel()
}

class TrialListener

</div>
]
.right-column-half[
## Enums
Used for PPS in Menu assignment *and* for experimental conditions. [Documentation](https://docs.oracle.com/javase/tutorial/java/javaOO/enum.html)

<div class="mermaid">
classDiagram

class State {
  START
  SELECTING
}

class MenuType {
  NORMAL
  PIE
  CUSTOM
}

class TaskType {
  LINEAR
  RELATIVE
  UNCLASS
}

</div>

]
???

Enums
- Used for PPS (PPS States; Essential Geometry) in Menu assignment *and* for experimental conditions
- Easy to inspect if you want to (can use to determine possible states, number items, etc)

---

# Handling onTouchEvent

.left-column-half[
You will write the PPS code to handle one generic type of Menu (in `MenuExperimentView`)

You will define the essential geometry for each specific type of menu (in `NormalMenuView`,
`PieMenuView`, and `CustomMenuView`)

Through the magic of Java inheritance, it will all work!
]

.right-column-half[
<div class="mermaid">
stateDiagram-v2

[*] --> Selecting : Press/<BR>startSelection()
Selecting --> [*]: Release/<BR>endSelection()
Selecting --> Selecting: Drag/<BR>updateModel()
</div>
]

---

# Drawing Menus

- Each menu pops up on the screen in it's own View with a bounding box.
- This will feel very familar... i.e think back to Doodle.
- You will have to draw your menus in the View!

.left-column50[
### Pull down Menu

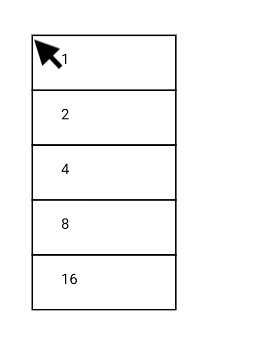

![:img Traditional Menu that students will implement, 40%,width](img/menus/normal-bounding.png)
]

.right-column50[
### Pie Menu

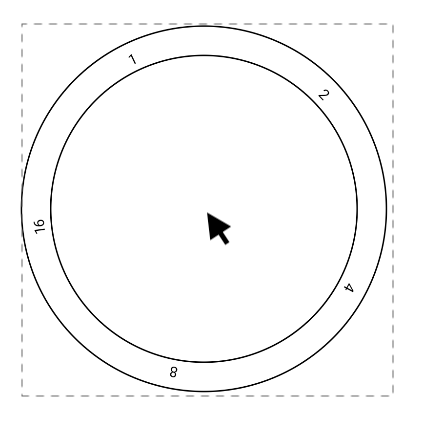

![:img Pie Menu that students will implement, 40%,width](img/menus/pie-bounding.png)
]

---

name: inverse
layout: true
class: center, middle, inverse
---
# Custom Listeners

## What are they? Why should we use them?

---
layout:false

# Custom Listeners

- Used in Menus

- Why create custom listeners?

--
- Maintains "Separation of Concerns"
- The objects that need information can get a message to update when the model has changed

Good example: a model that sends multiple views information on state changes.

---
# How to implement custom listeners

The object that needs to inform other objects about changes
- define a custom interface for the listener
- keep track of of everything that "listens" for changes, i.e. everything that implements that
  listener interface.

--
Anything *using* the the changes needs to
- implement the custom listener interface (specifically, the method in that interface that will be called)
- register itself as a listener with the view

Remember the `EnclosureListener`? [slides](../wk04/events.html#50)

---
# Creating a new type of listener (1/4)

Step 1: Define the new type of listener

```java
// Defines a new named inner interface for listening to an interesting event
public interface MyListener {
    void onInterestingEvent(); // can include a parameter
}
```

---
# Creating a new type of listener (2/4)

Step 2: Create an instance variable to store the registered listeners. Also create a
method for setting (if there is one) or adding (if there are many) listeners.

```java
// variable to store the listener(s) in once registered.
  public class MyObject extends SomeObject {

protected MyListener mListener;   // could also be a list of listeners

...

public void setMyListener(MyListener mListener) {
      this.mListener = mListener;  // could also be stored in a list.
    }

}
```
---

# Creating a new type of listener (3/4)

Step 3: Somewhere else in that object, when needed, call the listener!

```java
  // Method in MyObject that needs the listeners to do something!
  public void someMethod() {
    mListener.onInterestingEvent();
  }
```
---

# Creating a new type of listener (4/4)

Step 4: Implement the listener elsewhere in your code!

```java
public class TheListeningObject implements MyListener {

// MyObject mObject = new MyObject();

// on construction, or onCreate if a view
  public TheListeningObject() {
    mObject.setMyListener(this);  // one mechanism for setting up callbacks!
  }

// implementing the MyListener interface!
  public void onInterestingEvent() {
    // Do what we need to when we get notified of the event!
  }

```
---
# Think... Pair... Share...

Think about how a `View.OnClickListener` and `View#onClick()` work!

- What are we as the app developer seeing and utilizing?
- what steps are hidden for us by the toolkit?

---
# Custom Listener in Menus

In Menus, we use a custom listener to record experiment data

This keeps us from coupling (too tightly) the Menu Views from the code to handle the experiement.

---
# Custom Listener in Menus (1/4)

Step 1: We setup the listener interface for you

```java
public interface TrialListener {
  /** Callback function called when a trial is finished. */
  void onTrialCompleted(ExperimentTrial trial);
}
```
---
# Custom Listener in Menus (2/4)

Step 2: Create an instance variable to store the registered listeners. Also create a method for
setting (if there is one) or adding (if there are many) listeners.

We register the listeners in `AbstractMenuExperimentView`

```java
    // Currently registered TrialLister instance or null.
    private TrialListener mTrialListener = null;

// Register the trial listener with the menu. This will be notified when the trial is complete.
    public void setTrialListener(TrialListener listener) {
      mTrialListener = listener;
  }
```
---
# Custom Listener in Menus (3/4)

Step 3: Somewhere else in that object, when needed, call the listener!

You get to implement this part when you need to record a trial! Look for the TODOs!

---

# Creating a new type of listener (4/4)

Step 4: Implement the listener elsewhere in your code!

This is another piece you will do!

---
# Custom listeners in Menus

<div class="mermaid">
classDiagram
ExperimentActivity ..> AbstractMenuExperimentView : setTrialListener()
ExperimentActivity --> TrialListener : Implements
class TrialListener {
  onTrialCompleted()
}
class AbstractMenuExperimentView {
  setTrialListener()
}
</div>

---
# Custom listeners in Menus

You implemented this

```java
// TODO: Register callback to record a trial
```
.left-column60[
What method do we call to register the callback?  `setTrialListener()`

What do we do in the a callback? <br>Record the results
]
.right-column40[
<div class="mermaid">
classDiagram
AbstractMenuExperimentView ..> TrialListener : onTrialCompleted()
TrialListener ..> ExperimentActivity : record result

class TrialListener {
  onTrialCompleted()
}

class ExperimentActivity {
  AbstractMenuExperimentView mMenuView
}
</div>
]

---
# Registering a TrialListener in Menus

In `ExperimentActivity` to record the results of a trial

```java
// TODO: register a TrialListener with the menu:
// TODO: When the user completes a trial, the menu listener should take care of the following:
// TODO: 1. Write the result to your CSV file. This should be accomplished with
//          ExperimentSession.recordResult().
// TODO: 2. show the menu for the next trial, if there is another trial available.
// TODO: 3. If another trial is not available, announce with a Toast and change the text in the
//          instruction view to say the session is completed by using R.string.session_completed
//          from strings.xml. For completeness, don’t forget to reset the session (to null)
//          if you are done with all of the sessions.
```

---
