# CSE 340 Spring 2021

.title-slide-logo[

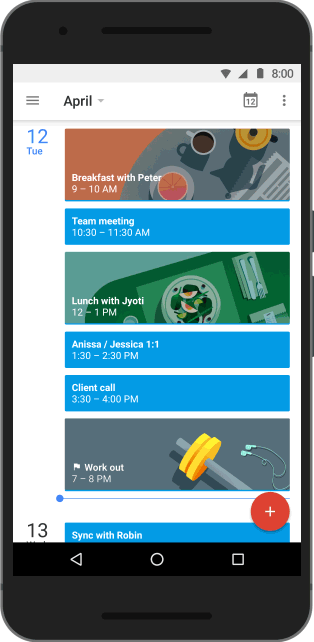

  ![:img Android phone showing a linear layout of todos on a calendar, 20%, width](img/android-linear.png)
]

---

# Layout Timeline

- Layout part 1-2 due: **FRIDAY @ 10:00pm (No late days allowed)**

- Layout part 3-4 and part 5 (reflection) due:  Next Thursday, April 22 @ 10:00pm
  - Lock: Saturday, April 24 @ 10:00pm (If you are using late days)

---

# Instruction for turning in Layout part 3-4
- **(Important!)** You will have to ACCEPT the Layout Part 3-4 at Gitgrade before you turn in part 3-4

- Track your acceptance/ submission of all assignments: https://gitgrade.cs.washington.edu/student/summary/8723

- Work in the same repo as Part 1-2

---
# Section 3 Objectives

- Prep for Layout Part 3 and 4
  - XML vs. Programmatic (Java)
  - Concept of "inflate" in Android
  - `LayoutInflater`
  - Sample [Layout Code](https://gitlab.cs.washington.edu/cse340/exercises/layoutlab/)

- Practice Problems

- Help with Layout

---

# XML vs. Programmatic (Java)

.left-column50[
- XML files -> good for describing **static finite** information, a data format

- XML is easier setting up the Layouts

- XML shows the Layouts directly

- XML can be inflated many times, like a blueprint
]

.right-column50[

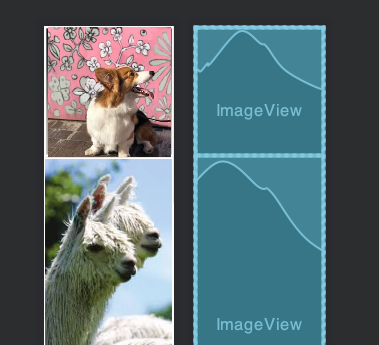

![XML vs Programmatic Java](img/xmlvsjava.png)
]
---

# XML vs. Programmatic (Java)

- Programmatic method: easier adding items to the Layouts
  - Can use loops!

- Sample solution of adding items into Layout in Part 1 (XML) has 55 lines
- Sample solution of adding items into Layout in Part 2 (Java) has ONLY 17 lines!

---

# LayoutInflater

- **"Inflate":** Accepts a valid XML file and converts it into a `View` object or interactor hierarchy.
  - stuff declared in XML -> be able to manipulate them in Java
  - done by the Android OS; render the thing by creating view objects in memory

- In Part 3 you will code part of it in an XML file and the rest programmatically (using Java).

- Why? (Discuss about pros and cons of constructing layout with XML and programmatically)

---

# How do we use the [LayoutInflater](https://developer.android.com/reference/android/view/LayoutInflater#inflate(int,%20android.view.ViewGroup)?

1. Setting up the LayoutInflater
```java
// Obtains the LayoutInflater from the given context
LayoutInflater.from(Context context)
```

2. Inflate
```java
// Inflate a new view hierarchy from the specified XML resource
inflate(int resource, ViewGroup root)
```
- resource = int ID for an XML layout resource to load (e.g., R.layout.main_page)
- root = optional view to be the **parent** of the generated hierarchy.
  - May be null.

---
# Quick Exercise
Construct a LayoutInflater and pass in the `part1.xml` file.

---

# Quick Exercise Solution
Construct a LayoutInflater and pass in the `part1.xml` file.

```java
public Part1View(Context context, List<String> imageNames, int vMargin) {
// Obtain the inflater from the context
LayoutInflater inflater = LayoutInflater.from(context);

// Inflate R.layout.part1
View newView = inflater.inflate(R.layout.part1, null); // newView is at the root of the inflated tree

// Add it to this view
this.addView(newView);
}
```
---

# From Last Week: [Layout Lab](https://github.com/harshitha-akkaraju/layoutlab)

- When doing Layout Part3/4: Reference the solution the for the "programmatic" method
- GitHub Link to [Solution](https://gitlab.cs.washington.edu/cse340/exercises/layoutlab/-/blob/master/app/src/main/java/cse340/exercises/layoutlab/ProgrammaticConstraints.java)

---
# Material Review
- Drawing
- Toolkit architecture vs Toolkit library
- Interactor Hierarchy labeling and drawing trees
- Layout (what parameters to assign to something to look a certain way, how final sizes are determined...etc)
---
# Material Review

Bounding Box question 1:
- You are creating a new CircleView that can draw a circle in the Doodle app.
- The user wants to add a circle so that the center point is at **(150, 50)** (in parent coordinates).
- The circle should have a **radius of 5.**
- In **CircleView#onDraw** you will need to call canvas.drawCircle(cx, cy, r, p).

- **What values should you use for cx and cy in this your onDraw code?**

---
# Material Review

- **What values should you use for cx and cy in this your onDraw code?**
  - (5, 5)
---
# Material Review

Bounding Box question 2:
- Which are valid corners for a bounding box for a circle created using the android Canvas to drawCircle(60, 45, 5, p)?
- For the below prompt, assume we are drawing from respect to **parent coordinates** (not inside child class).
- Assume to not account for line thickness.

Choices:
- (0,0)
- (60, 45)
- (55, 50)
- (55, 40)
- (5, 5)

---
# Material Review

Answers:
- **(55, 40)**
- **(55, 50)**

---
# Material Review
.left-column50[
View Hierarchy question:
- Draw a View Hierarchy based on the screen capture.
- Only include the contents below the top green bar.
]
.right-column50[
![:img Android app showing a vertical list of recent and previous messages, 60%, width](img/examlet_prac_3_layout.png)
]

---
# Material Review
Here's an example of how you should format the View hierarchy
Remember last week's Alarm app example?
.left-column50[

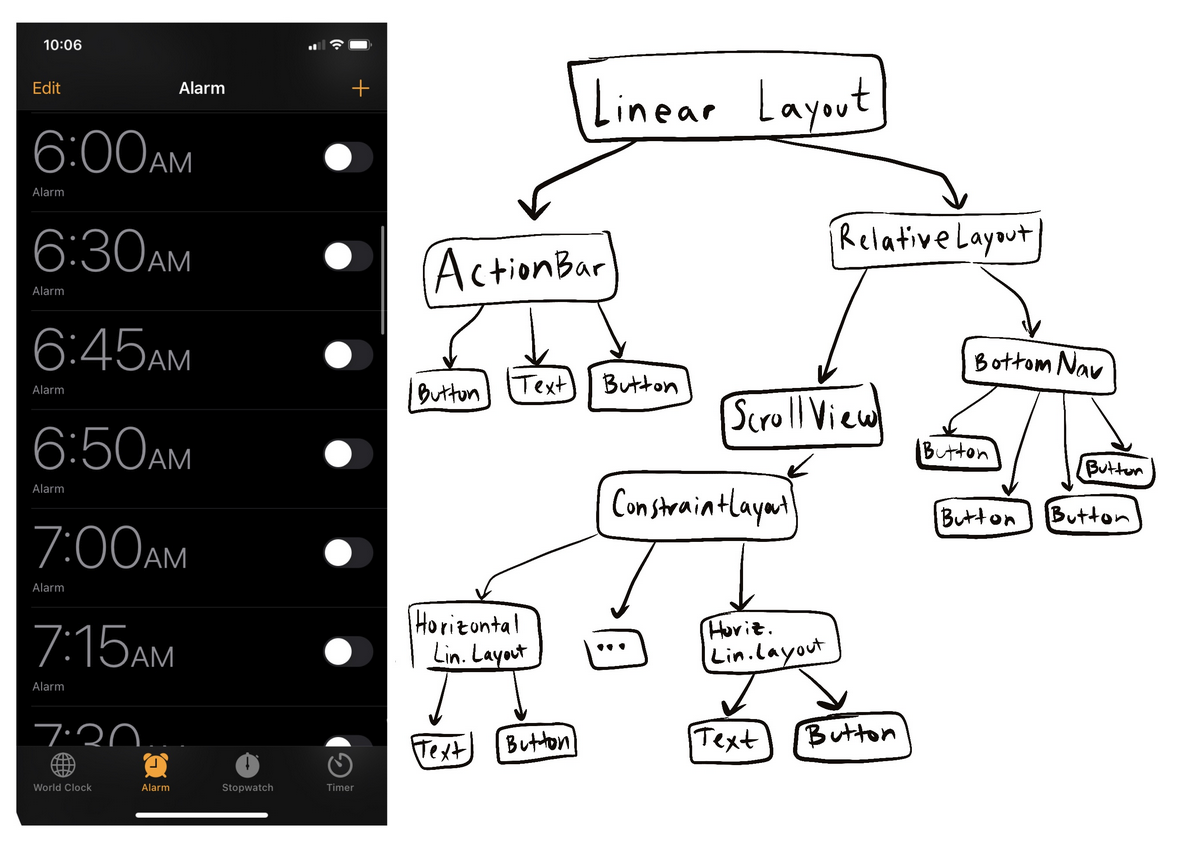

![:img Alarm clock application screenshot and interactor hierarchy, 100%, width](img/alarmclock.png)
]
.right-column50[

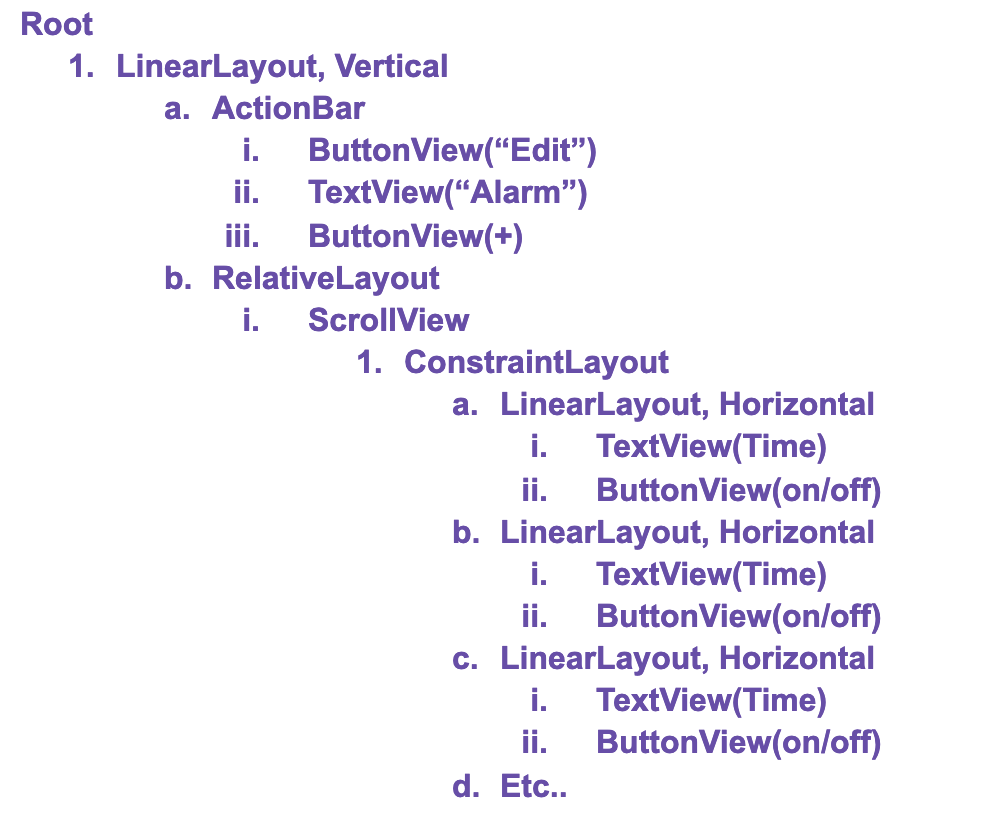

![:img Alarm clock view hierarchy, 100%, width](img/viewhierarchy.png)
]

---
# Material Review
.left-column50[

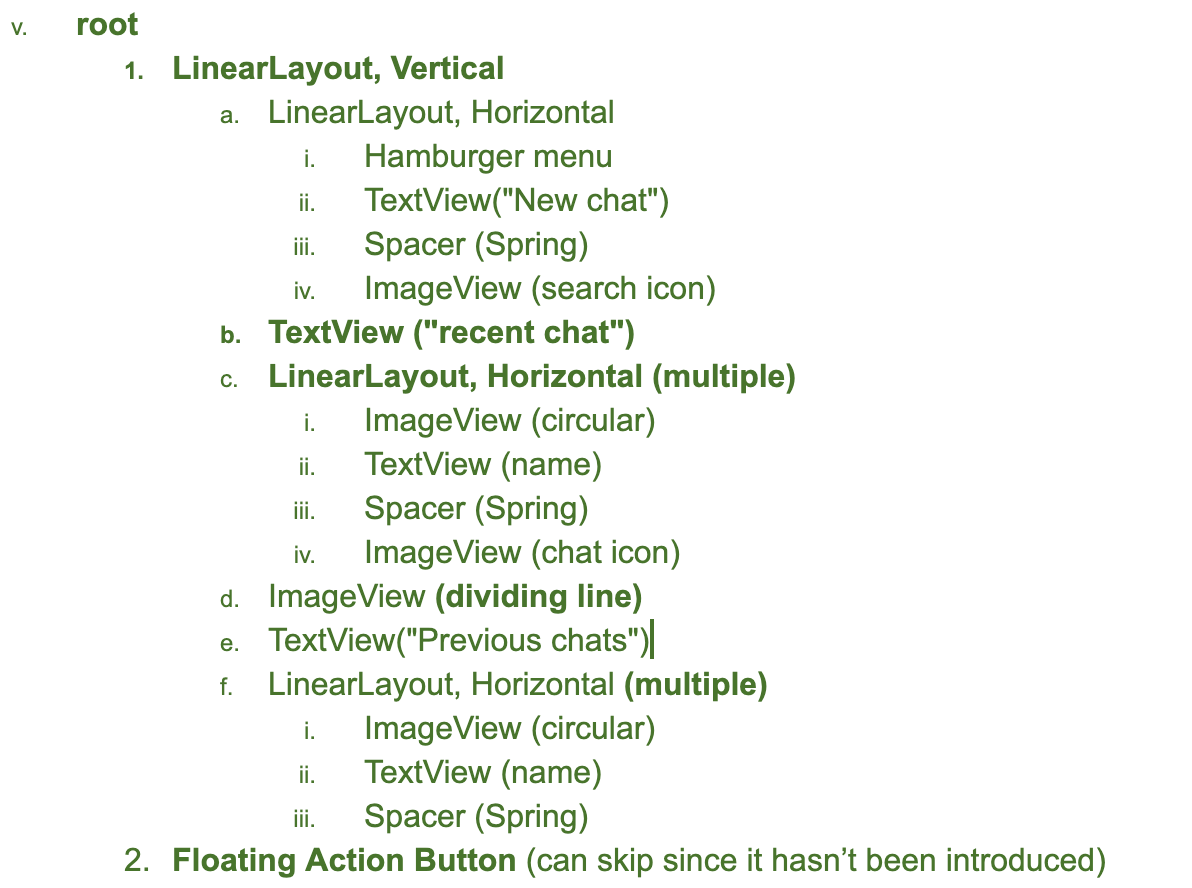

Possible answer:
![:img Possible exam answer showing a hierarchy of Views in the aforementioned example picture, 100%, width](img/examlet_prac_3_ans.png)
]
.right-column50[
![:img Android app showing a vertical list of recent and previous messages, 60%, width](img/examlet_prac_3_layout.png)
]

---
# Material Review
Interactor Hierarchy: Parent -> Children
- In regards to a tree consisting of 1 parent and 3 children,
list the z-order (from bottom to top) they will be drawn in.
- ViewGroup (parent) -> [children: Foo Bar Baz]

- **1. parent 2. foo 3. bar 4. baz**
---
# Material Review
- Consider the onMeasure() that is overridden in Layout Part 3.
- Is this method part of the **toolkit architecture or the toolkit library?**

---
# Material Review
- **Answer: Toolkit Architecture**

- [Interface Toolkit](https://courses.cs.washington.edu/courses/cse340/21wi/slides/wk01/first-app.html#19): provides services that help you create things
  - used by your program
  - contains library of components, architecture (see below)

- Architecture: the fundamental running code (queue) that builds your app (hierarchy...structure)
  - Includes Interactor Hierarchy
  - Decides structure, redraw, layout, MEASURING stuff!
  - Manage your components/app lifecycle

- Library: optional COLLECTION of functions, classes, COMPONENTS... that you can include in your app
  - Includes ex: ImageView class, ____View class ...etc
  - many more libraries out there that can be used w/Android: Expression Parsing Libraries, [ExoPlayer](https://github.com/google/ExoPlayer)...etc
  - Don’t need to reinvent the wheel.

---
# Section 3 Exercise
  - Submit your answers to the material review questions on Ed
  - Async students can answer the questions on their own or in groups
  - Everyone must submit by 10pm PST Friday (this goes for all exercises)
---
