CSE 333 Exercise 4

• Use various POSIX I/O library functions with files and directories.
• Implement a buffered system.
• Recognize the relationship between C standard library I/O and POSIX I/O.
• Implement code that error checks I/O function calls and properly cleans up resources on every execution path.

Directories

Directories are special files that store the names and locations of the related files/directories — itself, its parent, and all of its children (i.e., the directory's contents). You can take CSE 451 to learn more about the directory structure, but for this class, you can access directory information in C/C++ using the struct dirent structure and the POSIX library functions found in dirent.h.

Buffering

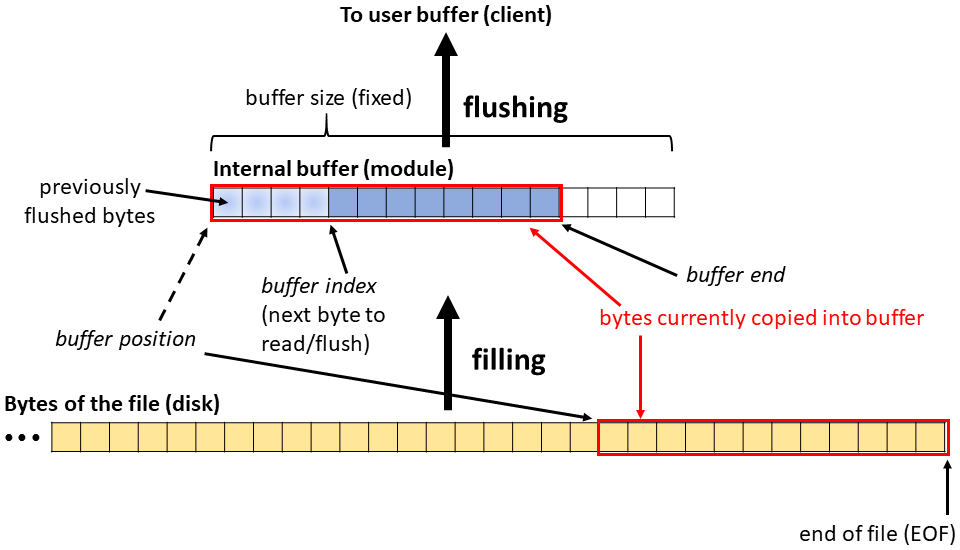

As discussed in lecture, C standard library I/O is implemented using system calls (POSIX) with an internal buffer to optimize performance. In this exercise, we will focus on buffered reading, where chunks of data from the file are stored in an internal buffer so that requests from the user can be returned more quickly from the internal buffer in memory rather than making a request to the file on disk each time. We must manage the internal buffer properly so that it is invisible to the client:

• Because we don't know the size of the file ahead of time and reading the entire file contents at once would defeat the purpose of buffering (and be very slow for large files), we will use a fixed size buffer. This acts as an upper bound on the size of the "window" of file data we can store at one time, with a "buffer position" indicating where this window starts in the file and a "buffer end" indicating where this window of valid file data ends in the buffer.
• As we send bytes from our buffer to the user, we don't want to shift data in the buffer, as this is an expensive linear-time array operation involving memory accesses. Instead, we will move an indicator within our buffer (a "buffer index") to keep track of our current position within the buffer.
• You should consider how these buffer indicators change for the following common operations:
  • Filling the buffer – reading data from the file into the internal buffer, overwriting previous data
  • Flushing the buffer – sending valid file data from the buffer to the user
  • Seeking within the file – changing file positions without reading or writing

This exercise will be broken into multiple parts:

1. You will write a program that prints out the contents of all text files in a directory to stdout using a combination of C standard library and POSIX library functions.
2. Then you will complete an implementation of a file I/O program that mimics what is done by some of the C standard library I/O functions using only POSIX library functions.
3. Then you will revise your original directory program to replace the C standard library file I/O functions with your homegrown ones!

Provided Files

We have provided you with the following seven source files, which can be obtained by pulling from your GitLab repo.

• ex4.c — Contains an empty main for the directory program, but does have helper functions to handle the major C-string operations.
• ro_file.h — Provides the public interface for our file I/O module, which includes a file management information data type and file I/O operations. Note that struct ro_file_st is defined in ro_file.c.
• ro_file.c — Implementation file for our file I/O module that you will need to complete.
• test_ro_file.c — Implements an executable that makes use of the file I/O operations provided by ro_file.h.
• test.txt and test2.txt — Two text files used in test_ro_file.c.
• Makefile — Provided for your convenience in compiling the executables ex4 and test_ro_file.

Step 1: Write the directory program

Write main in ex4.c. Your program should:

• Accept a directory name as a command-line argument. The directory name can be a simple name or a longer file path and might, or might not, have a trailing '/' at the end.
• Scan through the directory looking for filenames that end in the four characters ".txt". You do not need to scan subdirectories recursively.
• For each text file, read the contents using C standard library functions and write them to stdout. Do NOT add any additional characters or formatting (e.g., don't add newlines between the contents of different files)!

We have not provided any tests for you in this part, but we encourage you to test it on various inputs.

Step 2: Implement the file I/O module

1. Review the background information about buffering, carefully examine the struct ro_file_st definition in ro_file.c, and then read the function comments in ro_file.h.
2. Complete the functions found in ro_file.c.
3. Run the tests in test_ro_file.c.
   • These tests are not exhaustive and passing them does not guarantee a full correctness score. We encourage you to add additional tests here, however, these are optional and won't be submitted. In particular, you should test files that are bigger than the size of the internal buffer.
   • The provided tests do not make sure that you use the internal buffer but, when grading, we will be checking that you do so.

Step 3: Use the file I/O module in the directory program

Now go back and revise ex4.c to replace the C standard library functions for file reading with calls to the file I/O module. You are allowed to keep using C standard library functions to write to stdout.

Recommendations:

• Keep a copy of your working ex4.c from Step 1 somewhere for partial credit opportunities in the event that you don't finish debugging ro_file.c.
• Re-run any tests you used in Step 1 (and add more?) to verify the behavior of your file I/O module.

$ ./test_ex4
Test cases purposely not revealed.
0 failed

General

For the sake of our autograder, you may not modify ro_file.h. You are free to modify any other files as you see fit for design and/or testing purposes, but recall that you will only be submitting ex4.c and ro_file.c. If you add internal data types, constants, or functions to ro_file.c, you should document your changes and explain why you made them.

Style Consistency

Since you have been provided code, it is important to match the given style for consistency, including commenting style, indentation, data types (e.g., size_t, ssize_t, off_t), and error checking.

In addition, pay particular attention to comments, as some have been provided to help you plan your implementation but may or may not make sense to keep in your submitted version. Remember that comments should be up-to-date and meaningful; don't assume that all provided comments can be left as-is.

Submit the following file(s) by creating an ex4-submit tag in your repo before the assignment deadline. The file(s) should be located in the exact directory listed below, including capitalization:

• ex4/ex4.c
• ex4/ro_file.c

Other files in the ex4/ directory will be ignored, so you may keep the files unnecessary for submission in there!

For full credit, your code must:

• Compile without errors or warnings on CSE Linux machines (lab workstations, attu, or CSE home VM).
• Have no runtime errors, memory leaks, or memory errors (gcc and valgrind).
• Compile with the original, provided Makefile.
• Have a comment at the top of your submitted .c files with your name(s) and CSE or UW email address(es).
• Be pretty: the formatting, modularization, variable and function names, commenting, and so on should be consistent with class style guidelines. Additionally, the linter shouldn't have any complaints about your code (cpplint.py --clint).
• Be robust: your code should deal with hard-to-handle/edge cases and bogus user input (if there are any) gracefully.
