This section is about PHP programming (problems 1–4) and CSS floating (problems 5–8).

  1. Kitties
  2. Fibonacci
  3. Buggy PHP programs
  4. 12 Days of Xmas (long)
  5. Floats
  6. Menu
  7. Layout
  8. More Floats (long)

1. Kitties

Given 5 image files (kittie1.jpeg, kittie2.jpeg, etc.), write a PHP webpage that displays all 5 images as seen here.

Problem by Alex Miller

Solution

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
     <title>kitties</title>
  </head>
  <body>
    <div>
      <?php
      for ($i = 1; $i <= 5; $i++) {
          print("<img src=\"kittie{$i}.jpeg\" />");
      }
      ?>
    </div>
  </body>
</html>

2. Fibonacci

Modify the following file, fibonacci.php, to print the first 20 Fibonacci numbers in an ordered list using PHP.

Recall that in the Fibonacci sequence, each number is the sum of the two previous numbers, with the first and second numbers being 0 and 1 respectively.

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
    <head>
        <title>Fibonacci Sequence</title>
    </head>
    <body>
        <h1>The first twenty Fibonacci numbers:</h1>

        <!-- (your code here!) -->

    </body>
</html>

problem by Rishi Goutam

Solution

The modified fib.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
    <head>
        <title>Fibonacci Sequence</title>
    </head>
    <body>
        <h1>The first twenty Fibonacci numbers:</h1>

        <ul>
        <?php
        $first = 0;
        $second = 1;
        $SEQUENCE_LENGTH = 20; // number of elements to print
        for ($i = 0; $i < $SEQUENCE_LENGTH; $i++) { ?>
            <li><?= $first ?></li>

        <?php
            $temp = $second;
            $second += $first;
            $first = $temp;
        } ?>
        </ul>
    </body>
</html>

3. Buggy PHP programs:

The following PHP pages each contain one or more bugs. The bugs could be syntax errors or incorrect logic. Look at each page, find the bug(s), and correct the errors.

  1. bug1.php
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
      "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml">
      <!--
      Buggy PHP page 1 - variables, strings, if/else
      -->

      <head>
        <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
      </head>

      <body>
        <h1>Login check page</h1>

        <p>This page checks your user login settings.</p>
        <p>The page is <strong>really</strong> great.</p>

        <div>
          <?php
          $logged_in = TRUE;
          if $logged_in) {
            print "Welcome, user.\n";
          }
        </div>

        <h2>Name information:</h2>

        <p>In this section we will display information about your first name.</p>

        <div>
          $first_name = "David';
          if ($logged_in) {
            print "Welcome, $first_name\n";
          } else {
            print "Howdy, Stranger.\n";
          }
          ?>
        </div>

      </body>
    </html>

  2. bug2.php
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
      "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml">
      <!--
      Buggy PHP page 2 - variables, if/else, for loops, string concatenation, comments
      -->

      <head>
        <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
      </head>

      <body>
        <h1>Joe's money page</h1>

        <p>Our money info:</p>

        <div>
          <?php
          $funding = -17000;        <!-- we lost money -->
          if ($funding < 0) {
            print "We are in the red.";
          } elif ($funding = 0) {
            print "We broke even.";
          } else {
            print "We made a profit.";
          }
          ?>
        </div>

        <h2>Our bank's rules:</h2>

        <div>
          <?php
          for (int $i = 1; $i <= $10; $i++) {
            print("Rule " + $i + " of Money Club is, you do NOT talk about Money Club.\n");
          }
          ?>
        </div>

      </body>
    </html>

  3. bug3.php
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
      "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml">
      <!--
      Buggy PHP page 3 - arrays, foreach, cumulative sum, string concatenation
      -->

      <head>
        <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
      </head>

      <body>
        <h1>Curly's Supermarket</h1>

        <h2>Items for sale:</h2>

        <div>
          <?php
          $prices = array(9.00, 5.95, 12.50);
          foreach ($price as $prices) {
            print "The next item costs $price\n";
          }
          ?>
        </div>


        <h2>Total cost:</h2>

        <div>
          <?php
          $tax_rate = 1.08;    # 8% tax

          # compute total price with tax for all items
          foreach ($prices as $price) {
            $total_price = $price * $tax_rate;
          }

          print "Total price (with tax): $$total_price \n";
          ?>
        </div>
      </body>
    </html>

  4. bug4.php
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
      "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml">
      <!--
      Buggy PHP page 4 - arrays, foreach, expression blocks
      -->

      <head>
        <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
      </head>

      <body>
        <h1>My images</h1>

        <div>
          <?php
          $images = array["barney", "powerrangers", "barbie", "heman"];
          foreach ($images as $image) { ?>

            <img src="/images/<? $images ?>.gif" alt="a picture" />

          <?php } ?>
        </div>
      </body>
    </html>


Here are some useful general debugging tips:

4. 12 Days of Xmas: (long)

Write a page that displays the complete lyrics of the song, "12 Days of Xmas," along with displaying images for each of the gifts given on each day. Start from the template in the following file:

The page already has the correct appearance, but the code is long and redundant. Modify the page to use PHP code to remove this redundancy. The page should look like the following:

expected output

We suggest you code this page by following these incremental steps:

  1. For each day # N of Xmas, show day N's gift image once.
  2. For each day # N of Xmas, show day N's gift image N times.
  3. For each day # N of Xmas, show (day N's down to day 1's) gift image the appropriate number of times.
  4. (advanced) Add the text labels such as "Three French hens" under each gift's image(s). You probably won't be able to finish that in the time provided. You may want to use advanced syntax such as arrays to help you with this.

When you're finished with your page, the code might look like the following sample solution, written by former TAs Sylvia Tashev and Stefanie Hatcher:

5. Floats:

Given the following HTML file, floats.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <link href="floats.css" type="text/css" rel="stylesheet" />
  </head>
  <body>
    <div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
    </div>
  </body>
</html>

And the following CSS file, floats.css:

.box {
    width: 100px;
    height: 100px;
    background-color: black;
    margin: 10px;
}

Modify the HTML and CSS files so that floats.html has the following appearance (rendered in Firefox):
floats.html screenshot

problem by Alex Miller

Solution 1

The modified floats.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <link href="floats.css" type="text/css" rel="stylesheet" />
  </head>
  <body>
    <div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box break"></div>
      <div class="box"></div>
      <div class="box"></div>
    </div>
  </body>
</html>

And modified floats.css:

.box {
    width: 100px;
    height: 100px;
    background-color: black;
    margin: 10px;
    float: left;
}

.break {
    clear: left;
}

Solution 2

The modified floats.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <title>floats</title>
    <link href="floats.css" type="text/css" rel="stylesheet" />
  </head>
  <body>
    <div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
      <br />
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
    </div>
  </body>
</html>

And modified floats.css:

.box {
    width: 100px;
    height: 100px;
    background-color: black;
    margin: 10px;
    float: left;
}

br {
    clear: both;
}

6. Menu:

Given the following HTML file, menu.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <title>Menu</title>
    <link href="menu.css" type="text/css" rel="stylesheet" />
  </head>
  <body>
      <div>
        <ul>
          <li>Bananas</li>
          <li>Apples</li>
          <li>Grapefruit</li>
          <li>Oranges</li>
          <li>Papaya</li>
      </ul>
    </div>
  </body>
</html>

Apply CSS rules so the menu appears like this:
screenshot of menu

problem by Alex Miller

Solution

menu.css:

ul {
    background-color: red;
    padding: 20px;
}

li {
    display: inline;
    border: 1px solid black;
    padding: 10px;
    background-color: white;
}

7. Layout:

Given the following HTML file, layout.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <title>layout</title>
    <link href="layout.css" type="text/css" rel="stylesheet" />
  </head>
  <body>
    <div id="container">
        <div id="header">
            <h1>Header</h1>
        </div>
        <div id="left-column">
            <h2>Left column</h2>
            <p>Lorem ipsum dolor sit amet, consectetur ...</p>
        </div>
        <div id="right-column">
            <h2>Right column</h2>
            <p>Lorem ipsum dolor sit amet, consectetur ...</p>
        </div>
        <div id="content">
            <h2>Main content</h2>
            <p>Lorem ipsum dolor sit amet, consectetur ...</p>
        </div>
        <div id="footer">
            <p>Footer</p>
        </div>
    </div>
  </body>
</html>

And the following CSS file, layout.css:

#container {
    background-color: lightgray;
}

#header {
    background-color: green;
    height: 100px;
}

#left-column, #right-column {
    background-color: lightblue;
}

#footer {
    background-color: green;
}

Modify the just CSS file so that layout.html has the following appearance (rendered in Chrome/Firefox):

layout.html screenshot

The overall container takes up 80% of the width of the page and is centered. The sidebars take up 20% of the container width.

problem by Alex Miller

Solution

The modified layout.css:

#container {
    width: 80%;
    margin-left: auto;
    margin-right: auto;
    background-color: lightgray;
}

#header {
    background-color: green;
    height: 100px;
}

#left-column, #right-column {
    width: 20%;
    background-color: lightblue;
}

#left-column {
    float: left;
}

#right-column {
    float: right;
}

#content {
    margin-left: 20%;
    width: 60%;
}

#footer {
    background-color: green;
    clear: both;
}

8. More Floats: (long)

Given the following HTML file, morefloats.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <title>More Floats</title>
    <link href="morefloats.css" type="text/css" rel="stylesheet" />
  </head>
  <body>
    <div id="a"></div>
    <div id="b"></div>
    <div id="c">Lorem ipsum dolor sit amet, ...</div>
  </body>
</html>

And the following CSS file, morefloats.css:

#a, #b {
  width: 100px;
  height: 100px;
  font: 30pt bold Helvetica, Arial, sans-serif;
  line-height: 100px;
  text-align: center;
}

#a {
  background-color: lightblue;
}

#b {
  background-color: pink;
}

#c {
  background-color: lightgray;
}

Which together render as follows:
original morefloats.html screenshot

Modify morefloats.css to produce each of the following results:

  1. expected output 1
  2. expected output 2
  3. expected output 3
  4. expected output 4
  5. expected output 5
  6. expected output 6
  7. expected output 7
  8. expected output 8
    Hint: This is tricky, but involves only a single CSS property being set. (It's also not usually desirable output.)

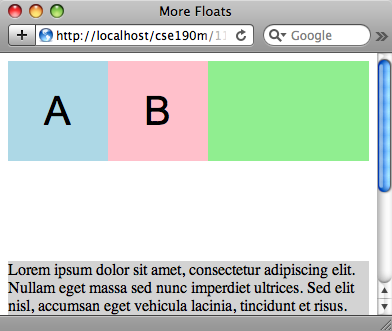

  9. (hard) expected output 9
    Is this even possible? What if you can edit the HTML?
  10. expected output 10

Protip: Open morefloats.html in a new window, then break out Firebug into a separate window by clicking the middle show/hide button:
screenshot indicating which button to click to break Firebug out into a separate window
Then resize the morefloats.html window to be about 350 × 250 pixels and tweak its styles using Firebug.

problem by Morgan Doocy

Solutions

Following are possible solutions for each output (there may be more):

  1. #a {
        float: left;
    }

    #b {
        float: right;
    }

  2. #a {
        float: left;
    }

    #b {
        float: right;
        clear: left;
    }

  3. #a {
        float: left;
    }

    #b {
        float: right;
        clear: left;
    }

    #c {
        clear: left;
        text-align: right;
    }

  4. #a {
        float: left;
    }

    #b {
        float: right;
        clear: left;
    }

    #c {
        text-align: right;
        width: 100px;
        margin-left: auto;
        margin-right: auto;
    }

  5. #a {
        float: right;
    }

    #b {
        float: left;
    }

    #c {
        float: left;
        text-align: center;
        width: 100px;
    }

  6. #a {
        float: right;
    }

    #b {
        position: absolute;
        top: 50px;
        right: 100px;
    }

    #c {
        clear: right;
        text-align: center;
        margin-right: 100px;
    }

  7. #a, #b {
        float: left;
    }

    #c {
        margin-left: 200px;
    }

  8. #a {
        float: left;
    }

  9. This problem requires another element. First edit the HTML to add a fourth element, d, surrounding a and b:

    <div id="d">
        <div id="a">A</div>
        <div id="b">B</div>
    </div>


    Then make the following CSS additions:

    #a, #b {
        float: left;
    }

    #c {
        margin-top: 100px;
    }

    #d {
        background-color: lightgreen;
        height: 100px;
    }


    Here's what the above looks like, with the green background color on d:

  10. #a {
        display: none;
    }

    #b, #c {
        display: inline;
    }


Solutions

1. Kitties

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
     <title>kitties</title>
  </head>
  <body>
    <div>
      <?php
      for ($i = 1; $i <= 5; $i++) {
          print("<img src=\"kittie{$i}.jpeg\" />");
      }
      ?>
    </div>
  </body>
</html>

2. Fibonacci

The modified fib.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
    <head>
        <title>Fibonacci Sequence</title>
    </head>
    <body>
        <h1>The first twenty Fibonacci numbers:</h1>

        <ul>
        <?php
        $first = 0;
        $second = 1;
        $SEQUENCE_LENGTH = 20; // number of elements to print
        for ($i = 0; $i < $SEQUENCE_LENGTH; $i++) { ?>
            <li><?= $first ?></li>

        <?php
            $temp = $second;
            $second += $first;
            $first = $temp;
        } ?>
        </ul>
    </body>
</html>

5. Floats:

The modified floats.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <link href="floats.css" type="text/css" rel="stylesheet" />
  </head>
  <body>
    <div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box break"></div>
      <div class="box"></div>
      <div class="box"></div>
    </div>
  </body>
</html>

And modified floats.css:

.box {
    width: 100px;
    height: 100px;
    background-color: black;
    margin: 10px;
    float: left;
}

.break {
    clear: left;
}

5. Floats:

The modified floats.html:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"
  "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <title>floats</title>
    <link href="floats.css" type="text/css" rel="stylesheet" />
  </head>
  <body>
    <div>
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
      <br />
      <div class="box"></div>
      <div class="box"></div>
      <div class="box"></div>
    </div>
  </body>
</html>

And modified floats.css:

.box {
    width: 100px;
    height: 100px;
    background-color: black;
    margin: 10px;
    float: left;
}

br {
    clear: both;
}

6. Menu:

menu.css:

ul {
    background-color: red;
    padding: 20px;
}

li {
    display: inline;
    border: 1px solid black;
    padding: 10px;
    background-color: white;
}

Solution

The modified layout.css:

#container {
    width: 80%;
    margin-left: auto;
    margin-right: auto;
    background-color: lightgray;
}

#header {
    background-color: green;
    height: 100px;
}

#left-column, #right-column {
    width: 20%;
    background-color: lightblue;
}

#left-column {
    float: left;
}

#right-column {
    float: right;
}

#content {
    margin-left: 20%;
    width: 60%;
}

#footer {
    background-color: green;
    clear: both;
}

8. More Floats:

Following are possible solutions for each output (there may be more):

  1. #a {
        float: left;
    }

    #b {
        float: right;
    }

  2. #a {
        float: left;
    }

    #b {
        float: right;
        clear: left;
    }

  3. #a {
        float: left;
    }

    #b {
        float: right;
        clear: left;
    }

    #c {
        clear: left;
        text-align: right;
    }

  4. #a {
        float: left;
    }

    #b {
        float: right;
        clear: left;
    }

    #c {
        text-align: right;
        width: 100px;
        margin-left: auto;
        margin-right: auto;
    }

  5. #a {
        float: right;
    }

    #b {
        float: left;
    }

    #c {
        float: left;
        text-align: center;
        width: 100px;
    }

  6. #a {
        float: right;
    }

    #b {
        position: absolute;
        top: 50px;
        right: 100px;
    }

    #c {
        clear: right;
        text-align: center;
        margin-right: 100px;
    }

  7. #a, #b {
        float: left;
    }

    #c {
        margin-left: 200px;
    }

  8. #a {
        float: left;
    }

  9. This problem requires another element. First edit the HTML to add a fourth element, d, surrounding a and b:

    <div id="d">
        <div id="a">A</div>
        <div id="b">B</div>
    </div>


    Then make the following CSS additions:

    #a, #b {
        float: left;
    }

    #c {
        margin-top: 100px;
    }

    #d {
        background-color: lightgreen;
        height: 100px;
    }


    Here's what the above looks like, with the green background color on d:

  10. #a {
        display: none;
    }

    #b, #c {
        display: inline;
    }

Valid XHTML 1.1 Valid CSS!
