Learning objective: Apply pandas and seaborn to process, visualize, and predict outcomes about data.

You can find the starter code here. Make sure to extract (unzip) the contents anywhere on your computer. If you are working in VS Code, navigate to File | Open or Open Folder, then select the hw3 folder.

  • nces-ed-attainment.csv is a CSV file that contains the education dataset for this assessment.

  • hw3.py is the file for you to put your implementations.

  • hw3_writeup.md is the file for your writeup. Instead of testing, this assessment emphasizes reflection on our data analysis.

  • cse163_imgd.py is a helper file that checks your plot outputs against expected output, and creates an image showing any pixel differences. You can run this file to check the output of hw3.py against the expected images, using the command python cse163_imgd.py in the terminal, or by clicking on the Run button in VS Code.

  • expected is a folder containing the expected output for line_plot_bachelors and bar_chart_high_school. Don’t modify the contents of this folder.

Info

Running your files works a bit differently in this assessment than previous ones since you do not need to write your own tests. Once you’ve implemented plotting functions in hw3.py with calls to plt.savefig(), you’ll see that running cse163_imgd.py generates some images showing the pixel differences between your plot and the expected plot highlighted in red. If the image is blank, then all the pixels match. A summary of the percentage of pixels that match will appear in the console.

Context

The National Center for Education Statistics is a U.S. federal government agency for collecting and analyzing data related to education. We have downloaded and cleaned one of their datasets: Percentage of persons 25 to 29 years old with selected levels of educational attainment, by race/ethnicity and sex: Selected years, 1920 through 2018. The nces-ed-attainment.csv file has columns for Year, Sex, Min degree, and race/ethnicity categories. Note the missing data: not all columns have data starting from 1920!

Year Sex Min degree Total White Black Hispanic Asian Pacific Islander American Indian/Alaska Native Two or more races
1920 A high school --- 22.0 6.3 --- --- --- --- ---
1940 A high school 38.1 41.2 12.3 --- --- --- --- ---
⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮
2018 F master's 10.7 12.6 6.2 3.8 29.9 --- --- ---

Our main method provides a line of code to read nces-ed-attainment.csv and replaces all occurrences of the str --- with pandas NaN to help with later data processing steps. The data is represented as a pandas DataFrame with the following MultiIndex:

  • Year is the first level of the MultiIndex with values ranging from 1920 to 2018.
  • Sex is the second level of the MultiIndex with the following values: F for female, M for male, or A for all students.
  • Min degree the third level of the MultiIndex with values referring to the minimum degree of educational attainment: high school, associate's, bachelor's, or master's.

and columns:

  • Total is the overall percentage of people of the Sex in the Year with at least the Min degree of educational attainment.

  • White, Black, Hispanic, Asian, Pacific Islander, American Indian/Alaska Native, Two or more races is the percentage of students of the specified race (and of the Sex in the Year) with at least the Min degree of educational attainment.

Any missing data is denoted by NaN (not a number).

We have provided some starter code in main to read in the CSV. You should not modify this code. By defining a MultiIndex on the columns Year, Sex, and Min degree, we can answer questions like “What is the overall percentage of those who have at least a high school degree in the year 2018?” with the following df.loc[index, columns] expression.

 data.loc[(2018, "A", "high school"), "Total"]

Warning

Do not use any loops, list comprehensions, or dictionary comprehensions. The goal of this assessment is to apply data science libraries to answer questions.

Warning

Be sure to call all of the functions you write inside your main method!

Info

Instead of writing test cases, we’ll only be working with the educational attainment dataset described above. We have provided a file, cse163_imgd.py, that can be used to verify correctness of the plots we ask you to create. Instead of writing tests cases, you’ll be asked to write and reason about the quality of work demonstrated in each task.

Pandas: compare_bachelors_year

What were the percentages for women vs. men having earned a Bachelor’s Degree in a given year?

Task: Write a function compare_bachelors_year that takes the educational attainment data and a year and returns a two-row Series that indicates the percentages of persons with listed sex "M" or "F" who achieved at least a bachelor's degree in the given year. Here is an example of the output for the year 1980. (The ... will be replaced with the actual percentages.)

Year Sex Min degree
1980 M bachelor's ...
F bachelor's ...

Pandas: mean_min_degrees

What were the 2 most commonly-awarded levels of educational attainment awarded between 2000–2010 (inclusive) for a given sex?

Task: Write a function mean_min_degrees that takes the educational attainment data, a start_year (default None), an end_year (default None), a string category (default \"Total\") and returns a Series indicating, for each Min degree within the given years, the average percentage of educational attainment for people of the given category between the start_year and the end_year for the sex A. When start_year or end_year is None, consider all rows from either the beginning or end of the dataset (respectively)

Seaborn: line_plot_min_degree

Warning

For line_plot_min_degree and bar_plot_high_school, be sure to use the respective generic seaborn functions. Instead of barplot(), you should use catplot(), and instead of lineplot(), you should use relplot().

Task: Write a function line_plot_min_degree that takes the educational attainment data and a min degree, and plots a line plot of the Total percentage for Sex A with the specified Min degree over each year in the dataset. Label the x-axis Year, the y-axis Percentage, and title the plot Percentage earning [min degree] over time, where [min degree] is replaced with the specified degree.

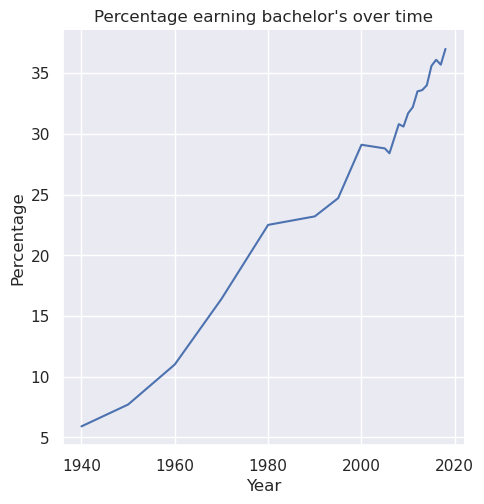

For example, if the specified degree was "bachelor's", then the title of the plot should be “Percentage earning bachelor’s over time”. The particular line plot for the "bachelor's" degree looks like this:

Percentage earning bachelor's over time

Save the plot as line_plot_min_degree.png with parameter bbox_inches='tight'.

plt.savefig('line_plot_min_degree.png', bbox_inches='tight')

Tip

For this assignment, you do not need to save the files with any prefix. We give you the line of code you should use to save the output above.

Seaborn: bar_plot_high_school

Warning

For line_plot_min_degree and bar_plot_high_school, be sure to use the respective generic seaborn functions. Instead of barplot(), you should use catplot(), and instead of lineplot(), you should use relplot().

Task: Write a function bar_plot_high_school that takes the data and a ear, then plots a bar plot comparing the total percentages of Sex F, M, and A with high school Min degree in given Year. Label the x-axis Sex, the y-axis Percentage, and title the plot High school completion in [year], where [year] is replaced with the specified year.

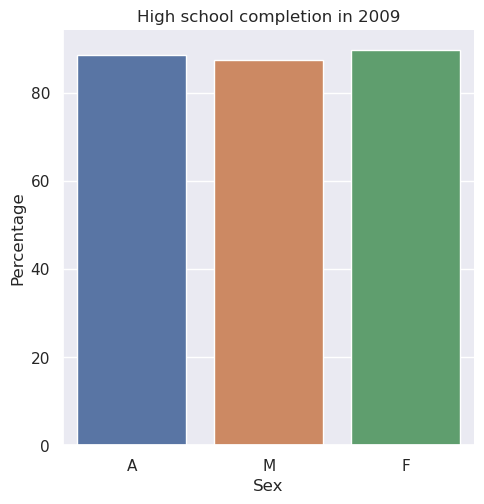

For example, if the specified year was 2009, then the title of the plot should be “High school completion in 2009”. The particular bar plot for 2009 looks like this:

High school completion in 2009

Tip

Is this visualization effective? You will be asked to consider this in the last section of the assessment.

Save the plot as bar_plot_high_school.png with parameter bbox_inches='tight'.

plt.savefig('bar_plot_high_school.png', bbox_inches='tight')

main

Write a main method in hw3.py that loads in the dataset provided and calls all of the functions you wrote. For all of the method calls, you should rely on any default parameters we specified.

Writeup

Task: In hw3_writeup.md, apply critical thinking to address the following questions about data visualization, data ethics and justice, and our data analysis methods. You could spend an entire course talking about any of these topics, but we’re just looking for 2 to 4 sentences on each question.

Info

md is the file extension for Markdown, the text formatting language used in Jupyter Notebooks. Markdown offers a natural-looking way to define headings, lists, and links using special characters like #. But you don’t actually need to learn anything to start writing Markdown—you can just write plaintext under each heading in hw3_writeup.md.

Debugging NaN Values

While writing test cases, one of your coworkers noticed that some calls to mean_min_degrees produce NaN values and wanted your opinion on whether or not this is a bug with the function. Here is the code she used:

mean_min_degrees(data, category="Pacific Islander")

Fortunately, you have a link to the original data source.

Task: In the first writeup question in hw3_writeup.md, explain why a NaN value appears in the result of your coworker’s code cell.

Bar vs. Scatter Plot

This week’s Reading Assignment comes from the first chapter of Kieran Hiely’s Data Visualiation: A practical introduction. For this writeup, we will focus on Section 1.6: Problems of honesty and good judgment.

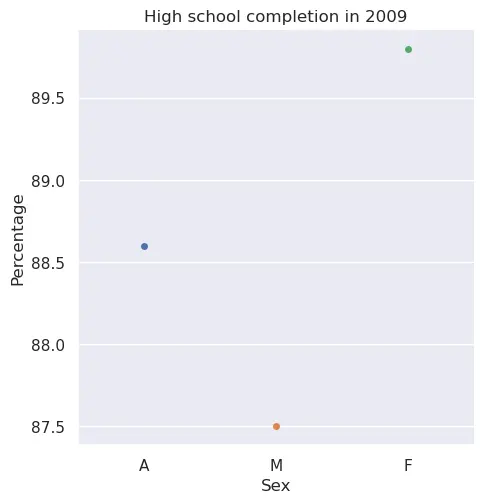

A scatter plot for the same task as bar_plot_high_school is shown below:

Scatter plot of high school completion in 2009

Task: In the second question of hw3_writeup.md, answer which plot you prefer (between the scatter and bar plot) and explain why. Include at least one reference to the reading in your answer.

Bias

Datasets can biased. Bias in data means it might be skewed away from or portray an incorrect picture of reality. For example, the data might contain inaccuracies or the methods used to collect the data may have been flawed.

Task: In the third question of hw3_writeup.md, describe a possible bias present in this dataset and why it might have occurred.

For more on bias and data justice, see Anna Lauren Hoffman’s Data Ethics course introduction and Data Feminism.

Creative Component: Sailing the High Seas(born)

In class, we will mostly look at scatter and bar plots. However, seaborn offers a bunch of other different kinds of visualizations! In this creative component, take a look through seaborn‘s Example Gallery to choose two different visualizations for the following coding task:

Task: Create two plots that use the educational attainment data and a racial category of your choice. The resulting plot should compare each of the 4 Min degree options, indicating the percentage of educational attainment for the given racial category and Min degree over the entire time range of available data. Due to missing data, not all min degree options will stretch the entire width of the plot. Label the x-axis "Year", the y-axis "Percentage", and give the plot an appropriate title.

Note: not all visualization types will be well-suited for this task. That’s OK! We will ask for your reflection on effectiveness and suitability of your visualizations.

Requirements

In the code cells provided in hw3_creative.ipynb, write code for 2 distinct visualizations according to seaborn‘s documentation. These should be visualizations that we have not covered in class! Then, explain your choice of visualization for each plot and explain whether you think it is effective or not.

You are not required to write functions for these visualizations, but you should show the output of your visualizations in the notebook.

Quality

Assessment submissions should pass these checks: flake8 and code quality guidelines. The code quality guidelines are very thorough. For this assessment, the most relevant rules can be found in these sections (new sections bolded):

Submission

Submit your work by uploading the following files to Gradescope:

  • hw3.py
  • hw3_writeup.md
  • hw3_creative.ipynb
  • line_plot_min_degree.png
  • bar_plot_high_school.png

Submit as often as you want until the deadline for the initial submission. Note that we will only grade your most recent submission.

Please make sure you are familiar with the resources and policies outlined in the syllabus and the take-home assessments page.

THA 3 - Education

Initial Submission by Thursday 01/29 at 11:59 pm.
