CSE 154

Lecture 18: Client/Server, Post Again, and Debugging

Reminders and Administrivia

HW3 due Tomorrow by 11 pm PST

I'm changing my office hours from Wednesday to Tuesday morning: 9:50-10:50am

Today's Agenda

  • Servers, clients, localhost, node, oh my.
  • Debugging Node
  • Client + Server Activity and Review

Node warmup

Either on your phone or computer, go to PollEv.com/robcse

Client/Server

Servers, clients, localhost, node, oh my.

Localhost? Files? Servers?

Remember our analogy of the restaurant:

  • The "patrons": want something (menu, food)
  • Waiter: takes order, gives to kitchen
  • Kitchen: Prepares the food

Analogous to our client/server:

  • Client: The browser. Wants a website, HTML
  • Network: Protocols like HTTP communicate between client and server
  • Server: Has the website, can "serve" the HTML (and other files)

Servers, clients, localhost, node, oh my.

What if we're making food for ourselves/friends/family at home?

Where's that line now?

I'm giving the order, taking the order, prepp'ing it, serving it, everything.

This is just like what we're looking at with Node on our localhost.

So, last week we talked about why. Let's look at what and how.

Client's perspective

Here, we have our own computer, and our browser

Couple of different URLs we could put in: file://... or http{s}://...

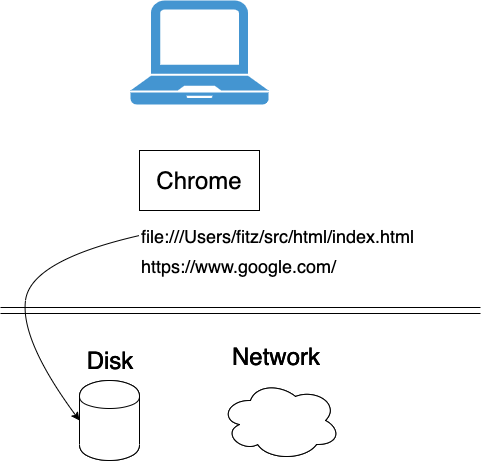

Client's perspective

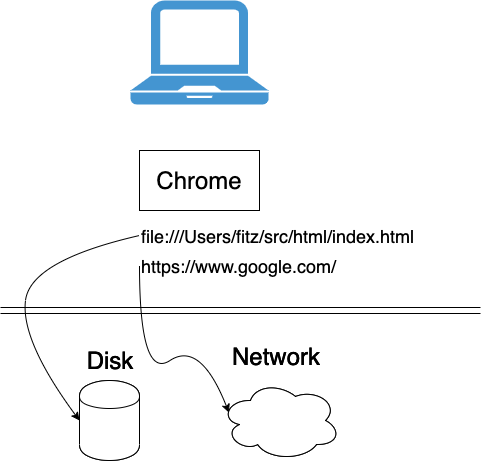

Underneath the browser, we have more layers (remember lecture 1? Everything's in layers)

Disk, network, and more.

file:// is the protocol that tells the browser to check the Disk

http

http{s}:// is the same, but asks the browser to go to the network

In this case, we do a couple other things: lookup the hostname, create an http request, wait for the network, etc.

But what if the hostname we're looking up is something like localhost:8000?

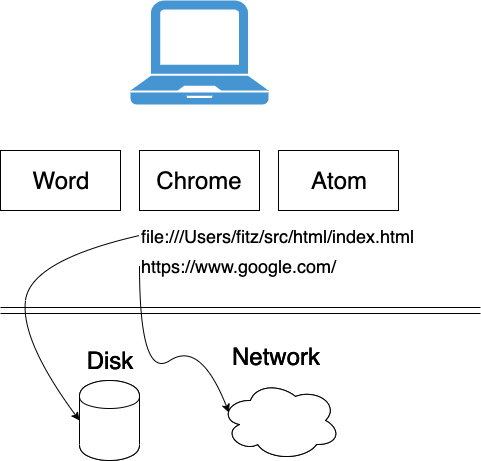

Other apps?

But we also have other things running on the computer:

All of these have their own little boxes (sometimes containers, but It's Complicated™)

Servers

Remember, we're here to talk about our own servers. When we start our own server, we do:

  • node app.js or nodemon app.js

Node is Yet Another Box

Node

Two main steps when we start our node server:

  1. node app.js
  2. app.listen(PORT);

What happens if we don't do app.listen?

Listening...

So when the browser does that lookup to the network, we come back across that layer and check for things listening on that port

Servers

And this is effectively how the server out on the internet works too

Just by default, those servers -- that node box on their computer -- is listening on port 80.

(Since this is the default, we don't have to specify it.)

Questions?

Some Debugging

Debugging Tools

  • console.log (it works in Node.js, too!)
  • Chrome DevTools (it works for Node.js, too!)
  • VS Code

Chrome DevTools and VS Code

Just like for our client-side JS, we can set breakpoints in our Node.js apps via Chrome's DevTools or in VS Code

Follow this guide

More Post

Review: Handling POST Requests on the server-side

  • Use app.post instead of app.get
  • Use the multer module to handle FormData POST requests
  • Use the three middleware functions to support the 3 different POST requests
  • Access POST params with req.body.paramName instead of req.params/req.query

Implementing the /addItem POST endpoint

Note: You can find example documentation for a POST endpoint here

POST Requests on the Client-Side: Example

Example output of add item feature

POST Requests on the Client-Side: The HTML Form

<form id="item-form">
  <p>
    <label for="category">Category: </label>
    <input type="text" name="category" required />
  </p>
  <p>
    <label for="item-name">Item Name: </label>
    <input id="item-name" name="name" type="text" required />
  </p>
  <p>
    <label for="images">Item Image:</label>
    <select id="images" name="image">
      <option value="">-- choose an image --</option>
    </select>
  </p>
  <p><label for="description">Description: </label></p>
  <textarea id="description" name="description" minlength=10 rows=5 cols=40></textarea>
  <button id="add-item">Add Item!</button>
</form>

HTML

POST Requests on the Client-Side: fetch with FormData

function addItem() {
  let params = new FormData(id("item-form"));
  fetch("/addItem", { method : "POST", body : params })
    .then(checkStatus)
    .then(resp => resp.text())
    .then(displaySuccess)
    .catch(handleError);
}

JS

POST Requests on the Server-Side

1. To add a POST endpoint, use app.post instead of app.get

app.post("/addItem", (req, res) => {
  ...
});

JS

Accessing FormData POST Parameters

2. Use the multer module to access POST parameters sent through a FormData request

3. Use the multer().none() (required to specify no file-uploading) and 2 other middleware functions built-in to Express for other POST request types

const multer = require("multer");

// for parsing application/x-www-form-urlencoded
app.use(express.urlencoded({ extended: true })) // built-in middleware
// for parsing application/json
app.use(express.json());                        // built-in middleware
// for parsing multipart/form-data (required with FormData)
app.use(multer().none());                       // multer middleware

app.post("/addItem", (req, res) => {
  ...
});

JS

Remember to run npm install multer in any project that uses it.

Accessing POST Parameters

With GET endpoints, we've used req.params and req.query to get endpoint parameters passed in the request URL.

But remember that POST requests send parameters in the Request body, not in the URL.

app.post("/addItem", (req, res) => {
  let name = req.params.name; // this doesn't work!
  let name = req.query.name;  // this also doesn't work!
  ...
});

JS

Accessing POST Parameters

req.body contains key-value pairs of data submitted in the request body. By default, it is undefined, and is populated when you use body-parsing middleware such as multer().none(), express.json() or express.urlencoded().


...
app.post("/addItem", (req, res) => {
  let item = req.body.name;
  let category = req.body.category;
  let description = req.body.description;
  ...
  // validate parameters, then update <category>-additions.json file with new data
  ...
});

JS

Endpoint Comment for /addItem


/**
 * Adds a new item to the <category>-proposals.json file to be approved later.
 * If no <category>-proposals.json yet exists, will add a new file.
 * Required POST parameters: name, category, description.
 * Optional POST parameter: image - defaults to food.png otherwise.
 * Response type: text/plain
 * Sends a 400 error if missing one of the 3 required params.
 * Sends a 500 error if something goes wrong in file-processing.
 * Sends a success message otherwise.
 */
app.post("/addItem", async (req, res) => {
  ...
});

Pseudo-code for /addItem


// Adds a new item to the menu.
// Required POST parameters: category, name, description
// Optional POST parameter : image - (defaults to food.png otherwise)
app.post("/addItem", (req, res) => {
  // 1. validate parameters.
  //   - If one of the 3 required are missing, send a 400 error message.
  // 2. Otherwise, if no image parameter is sent, set to food.png
  // 3. Create JSON with each parameter:
  //  { name, description, image}
  // 4. Read <category>-proposals.json (create if doesn't exist),
  // add new JSON to the array.
  // 5. Write new JSON to >category>-proposals.json.
});

JS

One Solution for /addItem

app.post("/addItem", async (req, res) => {
  res.type("text");
  // 1. validate parameters.
  //   - If one of the 3 required are missing, send a 400 error message.
  let name = req.body.name;
  let category = req.body.category;
  let description = req.body.description;
  let image = req.body.image;
  if (!(name && category && description)) {
    res.status(400).send("Missing POST parameter: category, name, and/or description");
  }
  // 2. Otherwise, if no image parameter is sent, set to food.png
  if (!image) {
    image = DEFAULT_IMAGE;
  }
  // 3. Create JSON with each parameter:
  let result = { "name" : name, "description" : description, "image" : image };
  // 4. Read <category>-proposals.json, then add new JSON to the array.
  // Fresh Fruit -> fresh-fruit
  let dashedCategory = category.toLowerCase().replace(" ", "-");
  let jsonFile = dashedCategory + "-proposals.json";
  try {
    let contents = await readFile(jsonFile, "utf8");
  } catch (err) {
    if (err.code !== "ENOENT") { // file-not-found error
      res.status(500).send(SERVER_ERROR);
    } // else continue, writing a new <category>-proposals.json file.
  }
  contents = JSON.parse(contents);
  contents.push(result);
  // 5. Write new JSON to same file.
  try {
    await writeFile(jsonFile, JSON.stringify(contents), "utf8");
  } catch (err) {
    res.status(500).send(SERVER_ERROR);
  }
  res.send(req.body.name + " proposal successfully added to " + jsonFile + "!");
});

JS

Question:

Is there another way to submit a form without FormData?

Summary of Handling a POST Request

  1. Use app.post instead of app.get
  2. Use req.body.paramname instead of req.params.paramname/req.query.paramname
  3. Require the multer (non-core) module with the rest of your modules
  4. Use the three middleware functions to support the three different types of POST requests from different possible clients
  5. Test your POST requests with Postman or with fetch and FormData in client-side JS (similar to HW3) - remember you can't test POST requests in the URL!

More questions from this lecture?

Especially if you're watching a recording, write your question on PollEverywhere and I'll answer them at the start of next lecture.

Either on your phone or computer, go to PollEv.com/robcse
