Lecture 2 Warmup

Use the following screenshot to work through the warmup, reviewing HTML tags from class/readings so far!

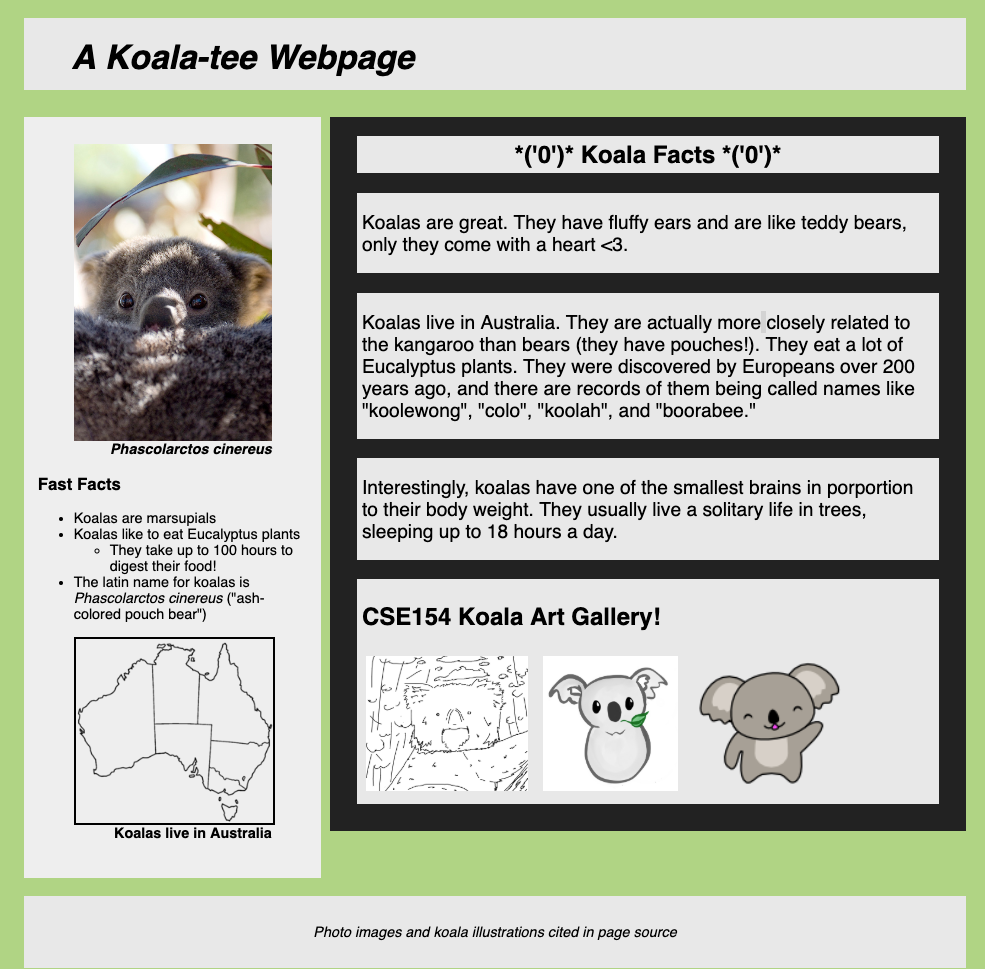

Koala page

CSE 154

Lecture 2: More HTML, Accessible Design, and CSS Preview

Today's Agenda

Administrivia

Finish discussing HTML

  • Yes really!
  • but you should not feel like you will know everything yet
  • and we do learn more as we delve deeper into CSS and JS

Discuss Accessible Design

Start CSS

Administrivia

WPL starts today after class (MOR 221)

Sections

  • Sections will reinforce learning from lectures
  • Quick Checks in Tuesday section starting next week
  • Attend the section you are signed up for!

CP1 out - have fun, and remember that this is your opportunity to explore and get feedback for HW1 (released by tomorrow)

Also a reminder to sign up for Mentor Circles by Friday! (but the sooner the better)

Assignments

Creative Project 1

Due: Saturday, June 29th, 11:00 pm

GitGrade Lock: Monday July 1st, 11:00 pm

Creative Project Page

Sample showcase from 19sp

Homework 1

Out: Thursday Morning

Review: Internet

Things that are relevant

  • There are layers
  • IP = Internet Protocol, addresses like 192.168.0.1
  • No centralized control but...
    • DNS maps the numbers to names like Google.com
    • W3C Validates web pages
  • Websites use a client-server model over the Internet

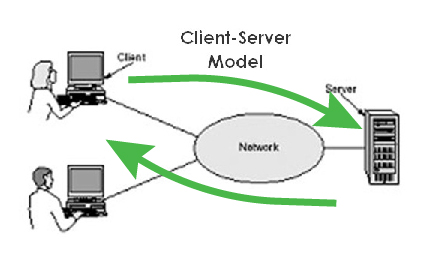

Client Server Model

From Wikipedia

Review: Websites

Content

pile of bones

Words and images

Structure

skelton

HTML

Style

skelton with style

CSS

Behavior

animated skelton with style

JavaScript

skelton

More HTML

Hypertext Markup Language (HTML)

Describes the content and structure of information on a web page

  • Not the same as the presentation (appearance on screen) - that's where CSS will come in!

There are a ton of HTML tags, but the most important thing is to use ones that are semantically appropriate, and meet current web standards.

MDN is really the only resource you should use outside of this class for looking up specific tags.

Basic Structure of an HTML Page

<!DOCTYPE html>
<html>
  <head>
    information about the page
  </head>
  <body>
    page contents
  </body>
</html>

HTML

The <head> tag describes the page and the <body> tag contains the page's content

An HTML page is saved into a file ending with extension .html

The DOCTYPE tag tells the browser to interpret our page's code as HTML5, the lastest/greatest version of the language

Using HTML5 Semantic Tags to Define Structure

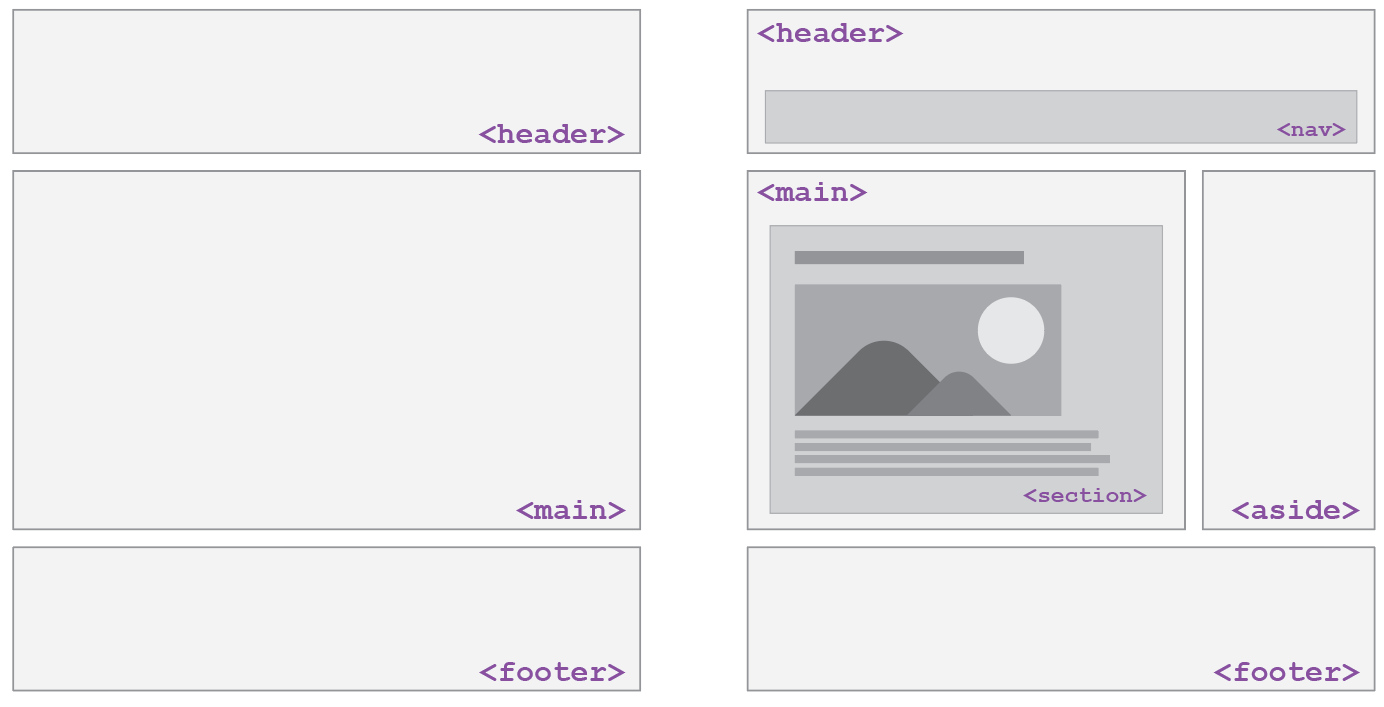

HTML5 wireframe examples

Image source: Hudson Gilmore (CSE154 TA!)

Tip when drafting HTML/CSS webpages

Always start with a sketch/wireframe before jumping into code!

A great resource on getting started with wireframes can be found here.

By the way... you don't need to be an artist.

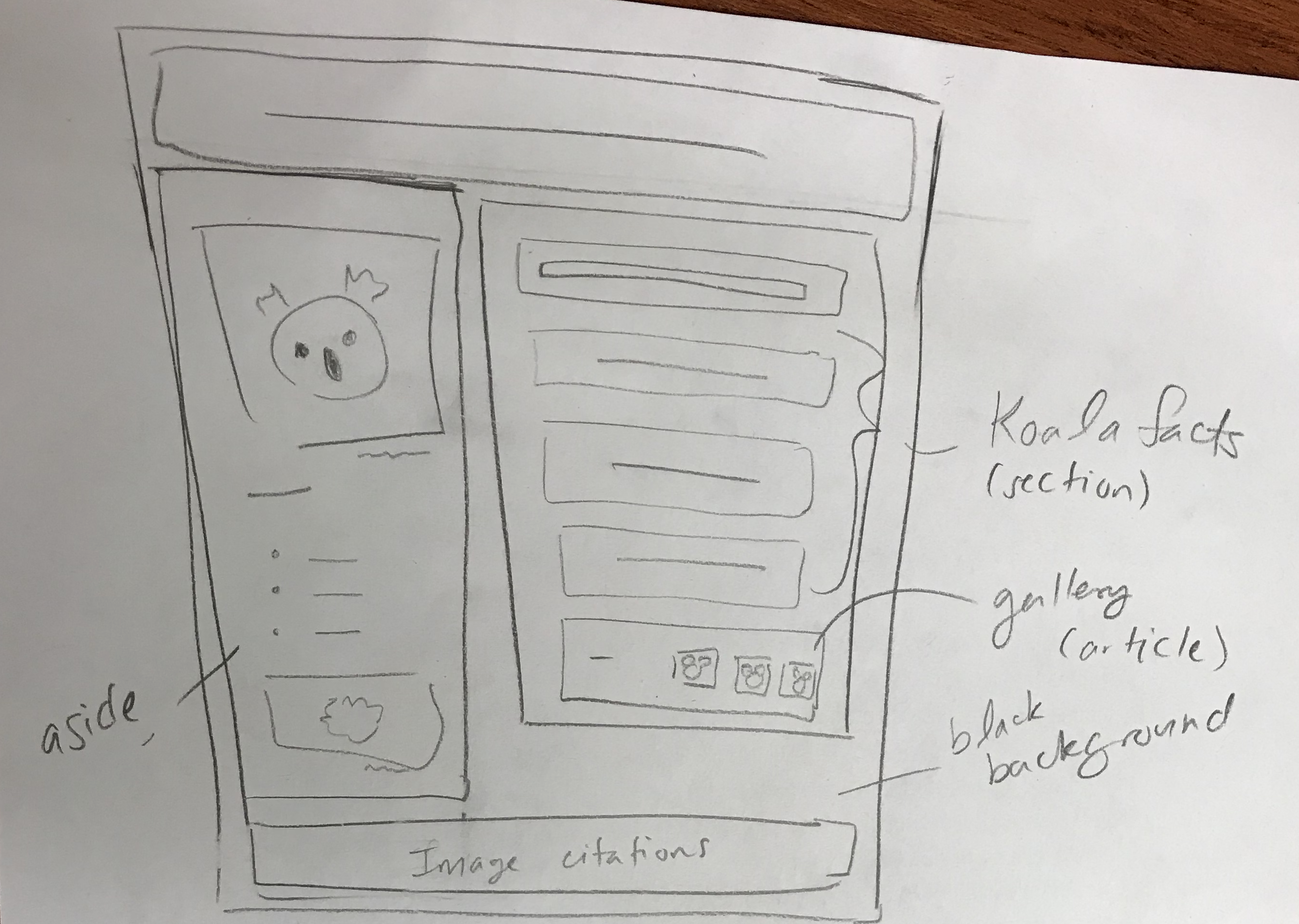

Penciled wireframe of a koala fan page

General Outline with HTML5

General outline of a document body (template):

<body>
  <header>
    <!-- Header of the webpage body (e.g. logo, navigation bar) -->
  </header>
  <main>
    <!-- Main section of the webpage body (where most content is) -->
  </main>
  <footer>
    <!-- Footer of the webpage body (e.g. copyright info) -->
  </footer>
</body>

HTML

For different types of pages, you may have more elements (e.g. nav, aside), but these are the ones you should follow as a guide for most of your webpages.

HTML vs Rendered Web Page

<!DOCTYPE html>
<html>
  <head>
    <title>Koala Fan Page</title>
  </head>
  <body>
    <header>
      <h1>A Koala-tee Webpage</h1>
    </header>
    <main>
      <aside>
        <!-- Left sidebar -->
      </aside>
      <section>
        <!-- Koala facts (header and paragraphs)-->

        <article>
          <!-- Koala art gallery -->
        </article>
      </section>
    </main>
    <footer>
      <!-- Image citations -->
    </footer>
  </body>
</html>
Sample Koala Page

HTML5 and Semantic Tags

<main>

Main content of the document - unlike <header> and <footer> tags, there can only be one main element in the <body>. The content inside should be unique and not contain content that is repeated across pages ( e.g. sidebars, nav link, search bars, etc.)

<header>

Header element - contains header information for page body or section/article, including logos, navigation bar, etc.

<footer>

Footer element - contains footer information for page body or section/article, including copyright infromation, contact, links, etc. Also often used with block quotes to cite sources (see CP1 about.html for an example!).

article vs section

We get this question a LOT

Others ask this too

Here are two resources to help you:

Basically: Article should be standalone content. Section is not.

And remember: div div has no semantic meaning, should only be added for selecting content in CSS/JS, and should be your "last resort".

Some Important HTML Details

HTML Tag Attributes

Some tags can contain additional information called attributes

  • Syntax:
    <element attribute="value" attribute="value"> content </element>
  • Example:
    <a href="my-other-page.html">Next page</a>

Some tags don't contain content and can be opened and closed in one tag (self-closing)

  • Syntax:
    <element attribute="value" attribute="value" />
  • Example:
    <br />, <hr />, <br>, <hr>
  • Example:
    <img src="bunny.jpg" alt="pic from Easter" />

Links (Anchors): <a>

links, or "anchors", to other pages (inline)

<p>
  Search for it on <a href="http://www.google.com/">Google</a>!
</p>

HTML

Search for it on Google!

output

Uses the href (Hypertext REFerence) attribute to specify the destination URL

  • Can be absolute (to another web site) or relative (to another page on this site)

Anchors are inline elements; must be placed in a block element such as <p> or <h1>

Images: <img>

Inserts a graphical image into the page

<img src="img/koala-with-leaf.png" alt="A Koala with a leaf" title="Logo"/>

HTML

A Koala with a leaf

output

The src attribute specifies the image URL (relative or absolute)

Motivating alt text

HTML5 also requires an alt attribute describing the image, which improves accessibility for users who can't otherwise see it.

The value of the alt attribute is also what you see if the image is not succesfully loaded.

<img src="img/koala-with-leaf-broken.png" alt="A Koala with a leaf" title="Logo"/>

HTML

A Koala with a leaf

output

More About Images

<a href="https://courses.cs.washington.edu/courses/cse154/19su/">
  <img src="img/cse154logo.png" alt="CSE154 Course Logo" title="Logo"/>
</a>

HTML

CSE154 Course Logo

output

If placed in an <a> anchor tag, the image becomes a link.

Relative vs. Absolute Paths for Links and Images

Relative paths are relative to the source document linking to the path. Examples:

  • styles.css
  • my-other-page.html
  • img/koala-with-leaf.png
<img src="img/koala-with-leaf.png" alt="A Koala with a leaf" title="Logo"/>

HTML

Absolute paths refer to a specific location of a file, including the domain. Example:

  • https://validator.w3.org
<a href="https://validator.w3.org/">HTML Validator</a>

HTML

Citing External Material

How to cite images that aren't yours?

<figure>
  <!--
    Image source: Wikipedia, Made by User:Golbez
    [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0/)]
  -->
  <img src="https://upload.wikimedia.org/wikipedia/commons/thumb/3/3b/Australia_states_blank.png/257px-Australia_states_blank.png"
       alt="Koala-land map"/>
  <figcaption>Koalas live in Australia</figcaption>
</figure>

HTML

See slides below for how to get the citation image for this Wikimedia image.

In your CP's, you must cite all resources that were not original (and you should give your own images credits) either on the page (as in about.html or in a footer) and/or in the page source code.

More examples:

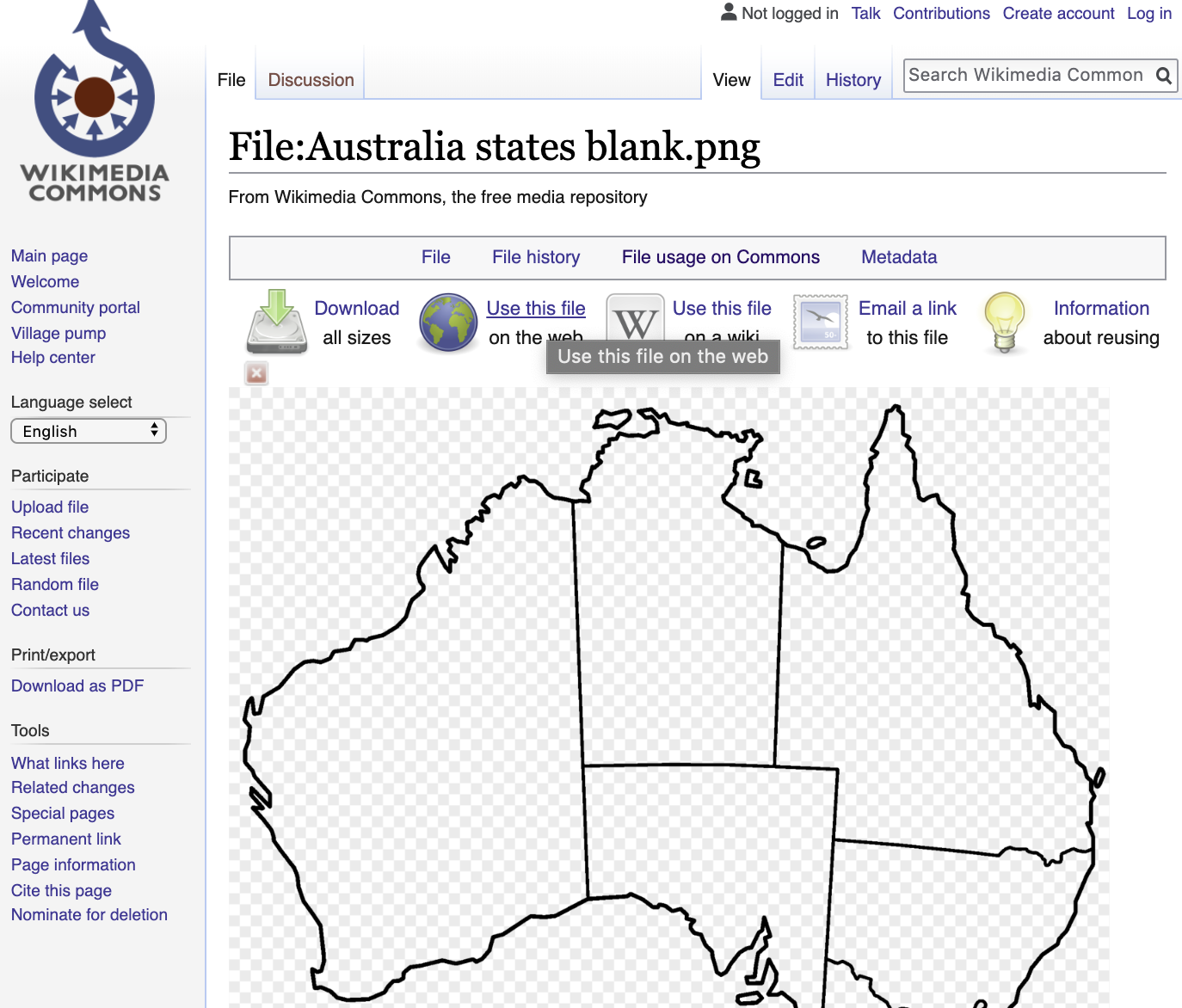

Getting the CC citation info from a public Wikimedia source

Getting citation information from Wikimedia page

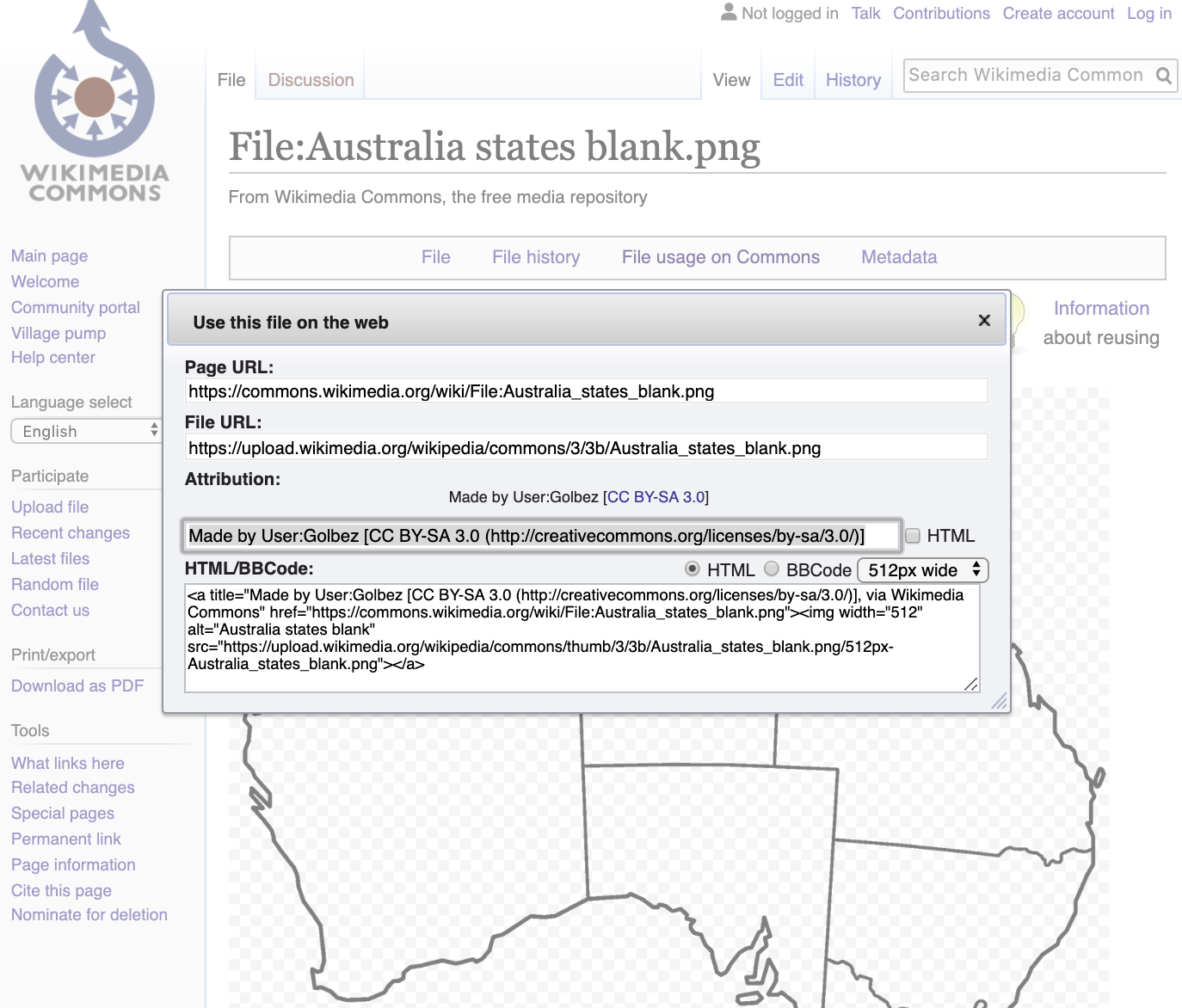

Getting the CC citation info from a public Wikimedia source

Getting citation information from Wikimedia page

Nested Lists

A list can contain other lists:

<ul>
  <li>Koalas are marsupials</li>
  <li>Koalas like to eat Eucalyptus plants
    <ul>
      <li>
        They take up to 100 hours to digest their food!
      </li>
    </ul>
  </li>
  <li>
    The latin name for koalas is
    <em>Phascolarctos cinereus</em>
    ("ash-colored pouch bear")
  </li>
</ul>

HTML

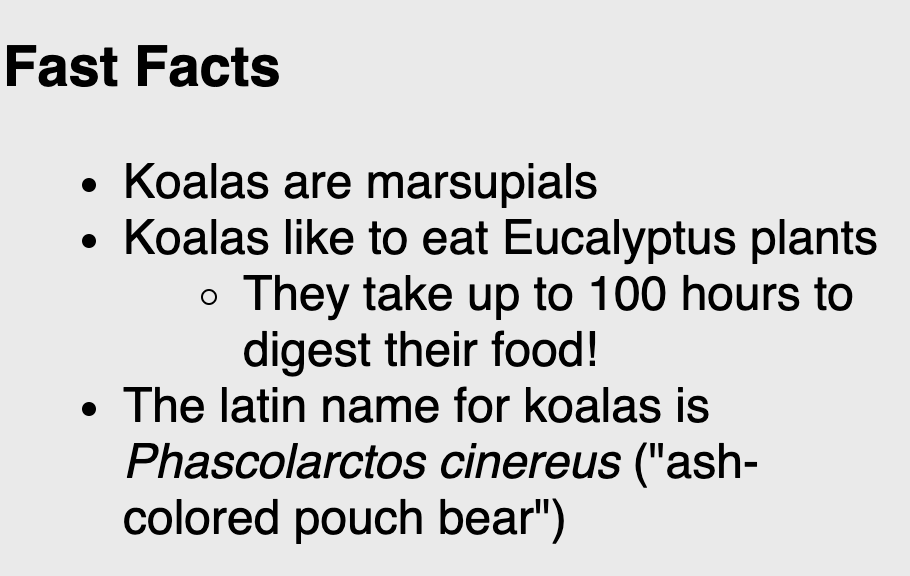

nested list example

Note the text often introducing the nested list!

HTML Character Entities

a way of representing any Unicode character within a web page

character(s)entity
< >&lt; &gt;
é è ñ&eacute; &egrave; &ntilde;
™ ©&trade; &copy;
π δ Δ&pi; &delta; &Delta;
И&#1048;
" &&quot; &amp;

Example: HTML-encoding text

What if I wanted to put THIS into a rendered web page?

<p> <a href="http://google.com/search?q=Mowgli&ie=utf-8"> Search Google for Mowgli </a> </p>

output

To display the link text in a web page, its special characters must be encoded like this in the HTML:

&lt;p&gt;
  &lt;a href=&quot;http://google.com/search?q=Mowgli&amp;ie=utf-8&quot;&gt;
    Search Google for Mowgli
  &lt;/a&gt;
&lt;/p&gt;

HTML

View the above output in this example

Practice: How can you fix this page to show <pre> using HTML entities?

References for more HTML Tags

You don't need to memorize all of the HTML tags, but should be able to use the right tag for the right purpose (semantics).

Refer to this slide deck for a list of the common tags you should know, and MDN's element reference for a much more comprehensive and detailed list (includes browser compatibility for each!)

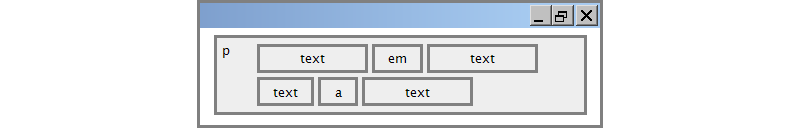

Block and Inline Elements (explanation)

elements

Block elements contain an entire large region of content

  • Examples: paragraphs, lists, table cells
  • The browser places a margin of whitespace between block elements for separation

Inline elements affect a small amount of content

  • Examples: bold text, code fragments, images
  • The browser allows many inline elements to appear on the same line
  • Must be nested inside a block element

Block and Inline Elements: Example

<em>text</em>
<em>text</em>
<em>text</em>
<p>text</p>
<p>text</p>
<p>text</p>

HTML

text text text

text

text

text

output

Rules and exceptions...

Block vs. inline:

  • Some block elements can contain only other block elements: <body>, <form>
  • <p> tags can contain only inline elements and plain text
  • Some block elements can contain either: <div>, <li>

Some elements are only allowed to contain certain other elements:

  • <ul> is only allowed to contain <li> (but <li> can contain <ul> for nested lists!)

Some elements are only allowed once per document:

  • <html>, <body>, <head>, <main>

Nesting Tags

Tags can "nest" inside of other tags

<body>
  <p>
    This is a <em>really, <strong>REALLY</strong></em> awesome paragraph.
    And here's a neat list:
  </p>
  <ol>
    <li>with one list item</li>
    <li>with another list item</li>
  </ol>
</body>

HTML

This is a really, REALLY awesome paragraph. And here's a neat list...

  1. with one list item
  2. and another list item!

output

Incorrectly Nesting Tags

<p>
  HTML is <em>really,
  <strong>REALLY</em> lots of</strong> fun!
</p>

Incorrectly nested HTML

Tags must be correctly nested

  • A closing tag must match the most recently opened tag
  • The browser may render it correctly anyway, but it is invalid HTML

How would we get the above effect in a valid way?

<p>
  HTML is <em>really,
  <strong>REALLY lots of</strong></em> fun!
</p>

Correctly nested HTML

How can we check? W3C HTML Validator

validator.w3.org

  • Checks your HTML code to make sure it follows the official HTML syntax
  • More picky than the browser, which may render bad HTML correctly

Example: Try validating validateme.html

NOTE: To receive full credit on your creative projects and homework assignments you MUST validate all of your files and pass with no errors.

Web Standards

Moreover, it is important to write proper HTML code and follow proper syntax

Why use valid HTML5 and web standards?

  • More interoperable across different web browsers
  • More likely that our pages will display correctly now and in the future
  • To ensure accessibilty

Accessible Design

Slides based on content from Profs. Richard Ladner, Jake Wobbrock, and Amy Ko.

This is another great resource to learn more about why/how to make websites accessible!

Thinking about Accessibility as Web Developers

Who uses the web?

What are the different ways people visit and interact with websites?

Why is it important to think about users when developing websites?

Disabilities

Everyone has different abilities

Nearly 1 in 5 people have a disability in the U.S. (from the U.S. Census)

(Some) kinds of disabilities

from W3C Web Accessiblity Initiative (WAI)

  • Visual
    • Blind
    • Low-Vision
    • Color Blind
  • Auditory
    • Deaf
    • Hard of Hearing
  • Speech
    • Ability to speak
    • Speech impediments
  • Physical
    • Ability to Walk
    • Ability to use hands or limbs
  • Cognitive, learning, and neurological
    • Dyslexia, dysgraphia, dyscalculia
    • ADHD
    • Memory loss
    • Learning disabilities
  • Behavioral
    • Bipolar

Temporary and Situational Disability

Disabilties can be temporary

  • having a broken arm in a cast
  • difficulty hearing after a loud concert

Disabilties can be situational

  • trying to open your door while carrying groceries
  • trying to talk on the phone in a noisy room
  • trying to read your phone under direct sunlight

Disability affects all of us

Accessible Design

Designs that account for all abilities are called accessible designs

Try your phone's screen reader!

Enable your phone's screen reader

  • iOS: Settings > General > Accessibility > VoiceOver > Hit the switch
  • Android: Settings > Accessibility > Talkback > Hit the switch

Input works differently now. For example, tap now reads the screen and double-tap selects. Use two or three fingers to scroll by page. Play with it for a minute.

Try closing your eyes and reading a webpage or a social networking site. Try writing an email.

Views of disabilities

Medical view

  • Disabled people are patients who need treatment and/or cure.

Legal view

  • Disabled people have rights and responsibilities, such as access to public buildings, voting, education, etc.
  • Lawsuits can occur, but they should not be the motivating factor for making a system accessible

Sociocultural view

  • Variation in ability is natural. "Disability" is caused by how society is designed, not by nature.
  • Building for inclusion builds innovation (e.g., curb cuts, close captioning)

Tools and Resources

From the A11y Project

Tools

Resources

Accessible Web Design Principles

  • Use document structure (Semantic) tags: e.g., <article>, <strong>
  • Don't use deprecated style tags like <b>
  • Provide metadata: e.g., <html lang="en">
  • Provide alternatives: e.g., img alt tag, video captions, transcripts, allow both keyboard and mouse input
  • Avoid directional text: eg. "the diagram on the right shows..."

Note: These design principles help in other ways as well

  • Captions allow people to watch your video without turning sound on.
  • Transcripts help people find your page through Google.
  • Structure and metadata help programs understand your page.

More about HTML and accessibility here.

skelton

Preview to CSS

The Bad Way to Produce Styles

            <p>
  <font face="Arial">Welcome to Greasy Joe's.</font>
  You will <b>never</b>, <i>ever</i>, <u>EVER</u> beat
  <font size="+4" color="red">OUR</font> prices!
</p>

HTML

Welcome to Greasy Joe's. You will never, ever, EVER beat OUR prices!

output

Tags such as b, i, u and font are discouraged in strict HTML

Why is this bad?

  • Accessibility
  • Code organization
  • Changing style easily

Cascading Style Sheets (CSS): <link>

<head>
  ...
  <link href="filename" rel="stylesheet" />
  ...
</head>

HTML (template)

<link href="style.css" rel="stylesheet" />

HTML (example)

CSS describes the appearance and layout of information on a web page (as opposed to HTML, which describes the content)

Can be embedded in HTML or placed into separate .css file (preferred)

Basic CSS Rule Syntax

selector {
  property: value;
  property: value;
  ...
  property: value;
}

CSS (template)

p {
  color: red;
  font-family: sans-serif;
}

CSS (example)

A CSS file consists of one or more rules

A rule selector specifies HTML element(s) and applies style properties

  • A selector of * selects all elements
