Lecture 13

JSON, AJAX Recap

Agenda

JSON - a format for packaging data

Using JSON to generate webpages

Using JSON to request/receive data

Recap AJAX (time permitting

Questions

Reminders

HW2:

Change: One free late day. Due tomorrow 11pm.

Still locks Friday 11pm

Tests running long (2-3 minutes)? Check for infinite loops.

Midterm next Monday, 5:15. Email me if you have conflicts.

Poll Everywhere

JSON

JavaScript Object Notation

A data format that represents data as a set of JavaScript objects invented by JS guru Douglas Crockford of Yahoo! natively supported by all modern browsers (and libraries to support it in old ones)

But first... JavaScript objects

let myobj = {
  fieldName1: value1,
  ...
  fieldName: value
};

JS (example)

In JavaScript, you can create a new object without creating a "class" like you do in Java

let bestCourse = {
  dept : "CSE",
  code : 154,
  qtr : "19au",
  sections : ["AB", "AC", "AD", "AE"]
};

You can add properties to any object even after it is created:

bestCourse.mascot = "Mowgli Hovik";

JS (example)

Example of JS Object

let kitten = {
  name: "Orange",                             // string
  breedName: "Domestic Short hair",           // string
  meow: function() {
    console.log(this.name + " says woof!");   // function
  },
  age: 3,                                     // number
  toys: ["mouse", "fuzzy hat", "shoe string"] // array
};
console.log(kitten.toys[1]);      // fuzzy hat
kitten.meow();                    // Orange says meow!
console.log(kitten["breedName"]); // Domestic Short hair
console.log(kitten.breedName]);   // Domestic Short hair

JS (example)

An object can have methods (function properties) that refer to itself as this
can refer to the fields with .fieldName or  ["fieldName"] syntax

We don't create JS Objects in CSE 154 programs, but you can find more info here.

JSON Practice: here, here, and here.

Examples of JS objects we've seen so far

• DOM elements
• document, window

JavaScript Objects vs. JSON

JSON is a way of representing objects, or structured data.

(The technical term is "serializing" which is just a fancy word for turning an object into a savable string of characters)

Browser JSON methods:

• JSON.parse( /* JSON string */ ) -- converts JSON string into Javascript object
• JSON.stringify( /* Javascript Object */ ) -- converts a Javascript object into JSON text

Demo converting JS Object to String and JSON

Poll Everywhere

JSON limitations

JSON can't handle certain data types, so these things just fall out of the object if you try to make JSON strings out of them:

• Function
• Date
• RegExp
• Error

Since JSON is ideal for communicating across different types of systems, you can't put Javascript functions in JSON. Other languages wouldn't be able to read JSON effectively if it had Javascript code in it.

(This is also why Dates and RegExps can't go into the JSON object -- other languages wouldn't know how to interpret them for what they are.)

There are a few other JSON rules which you can get more details in the reading.

Numerous validators/formatters available, eg JSONLint

JSON Exercise

let data = {
   "name": "Jo Smith",
   "items": [
      { "fish": "fishy-smelling" },
      { "cheesecake": "a bit burnt" },
      { "chips": "These are computer chips." }
   ],
   "gift": "hamburger",
   "table-number": 20
};

Answers

let name = data.name;
// name === "Jo Smith"
let mealCount = data["meal-status"].length;
// mealCount === 4
let fishStatus = data["meal-status"][0]["fish"];
// fishStatus === "fishy"
let lastItem = data.items[data.items.length];
// lastItem = { "chips" : "These are computer chips." }

JS

A Few Other Notes

What if you want to loop through all categories in the following object?

Sometimes, you'll want to loop through a collection of keys.

let menu = {
  "categories" : {
    "Drinks" : ["Coffee", "Tea", "Espresso"],
    "Foods" : ["Cereal", "Toast"]
  }
}

JSON

You can use Object.keys(obj) to get an array of keys (strings)

You can also use for (let key of obj) { ... } to loop through a collection.

let categories = Object.keys(menu.categories); // ["Drinks", "Foods"]
for (let category of categories) {
  console.log(category); // e.g. "Drinks"
  console.log(menu.categories[category]); // e.g. ["Coffee", "Tea", "Espresso"]
}

JS

So what is JSON used for?

On your own website, it can be used to represent data to generate webpages dynamically

JSON data also comes from many sources on the web:

• web services use JSON to communicate
• web servers store data as JSON files
• databases sometimes use JSON to store, query, and return data

JSON is the de facto universal format for exchange of data

Using JSON for Dynamic Webpages

Return to the CSE 154 Cafe!

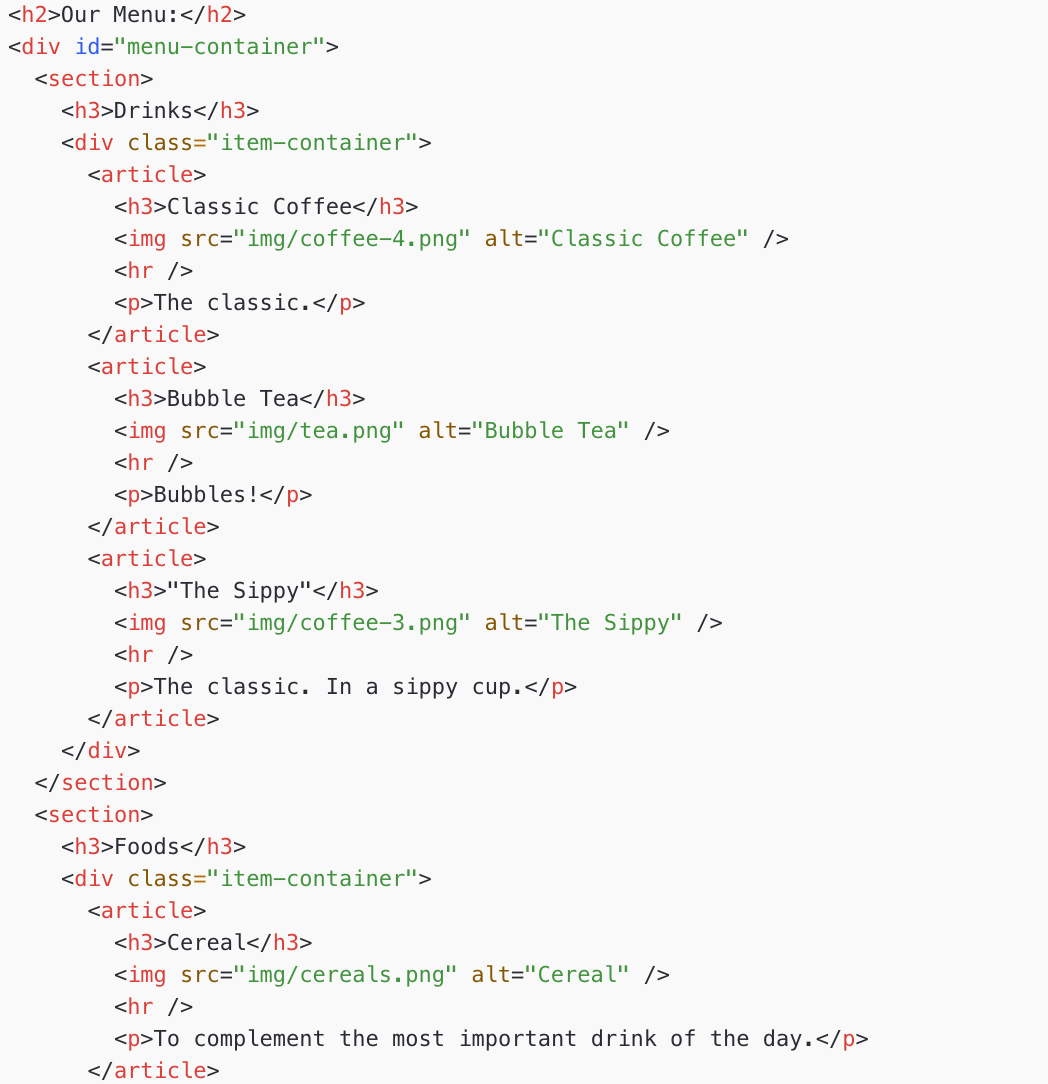

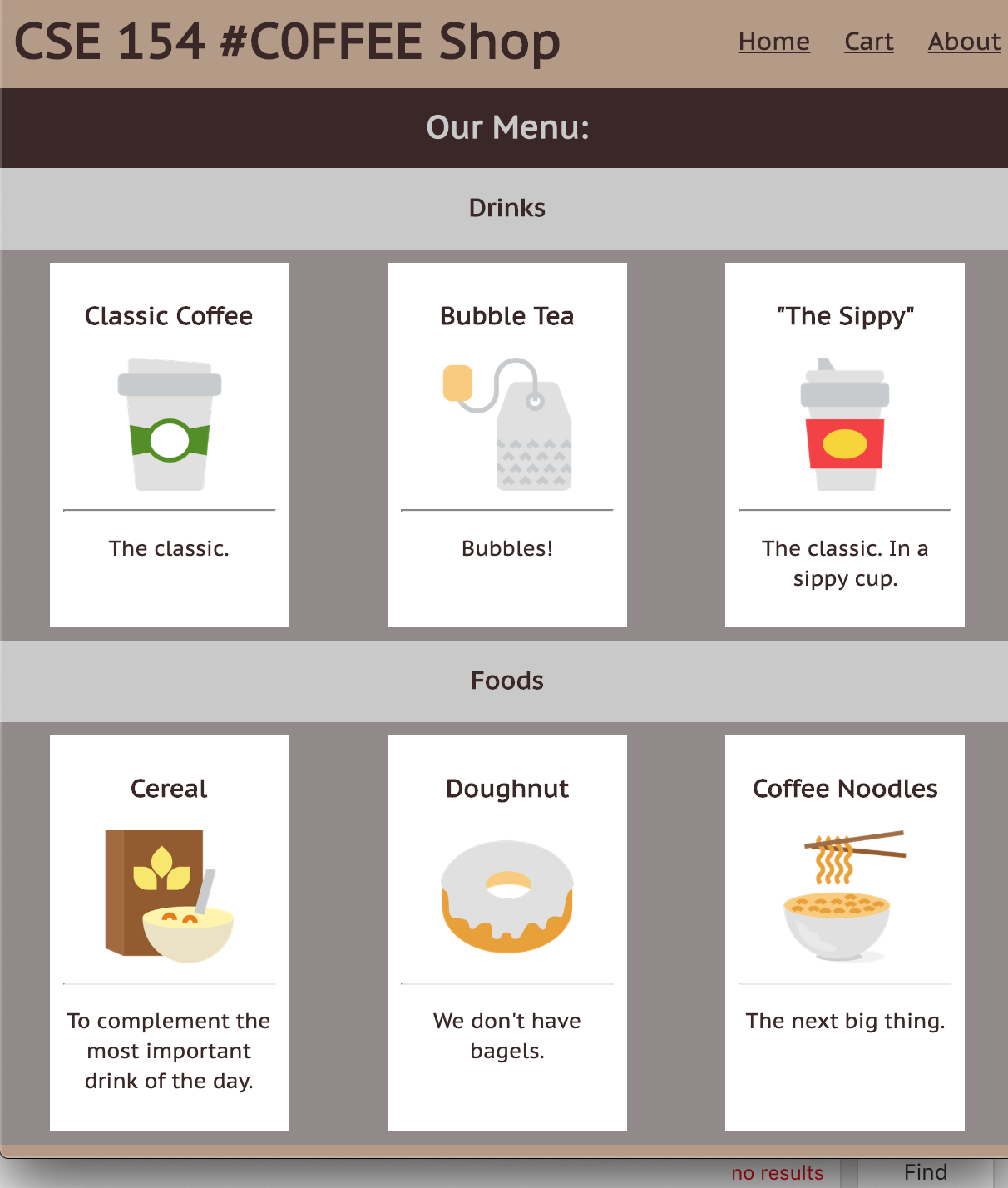

Initial Page

What are the limitations of having everything in the HTML for a website with items/products like a cafe?

Part 1: Using JSON as a variable in menu-populator.js

Example menu.json

"use strict";
(function() {
  let menu = {
    "categories" : {
      "Drinks" : [
        { "name" : "Classic Coffee", "description" : "The Classic.",
          "image" : "img/coffee-4.png", "in-stock" : true },
        { other drinks... }
      ],
      "Foods" : [ { other foods... } ]
    },
  };

  window.addEventListener("load", populateMenu);

  function populateMenu() {
    let categories = Object.keys(menu);
    for (let category of categories) {
      let categorySection = genCategorySection(category);
      let div = gen("div");
      div.classList.add("item-container");
      for (let i = 0; i < categories[category].length; i++) {
        let itemData = categories[category][i];
        if (itemData["in-stock"]) {
          div.appendChild(genItemArticle(itemData));
        }
      }
    }
    categorySection.appendChild(div);
    id("menu-container").appendChild(categorySection);
  }

  // rest of program ...
})();

JS (partial)

But what's wrong with putting the JSON as a module-global in our JS?

What if we want to feature different menus?

What if other websites want to use the menu data?

Part 2: Fetching JSON from the web

• What kind of data can we get from the internet?
• How do we request data from the internet?
• What happens when something goes wrong on the internet?
• Can you trust everything you find on the internet?

A ton of examples

Hold your horses

While we are still using JS with JSON, these are new questions that we have to consider.

Data is fun. It's powerful. It drives the modern society. But with great power, comes great responsibility.

What we learn these next few lectures will be simple to code, but will take some time to conceptualize.

Synchronous requests

Why are synchronized requests are problematic?

Your code waits for the request to completely finish before proceeding.

It is easier to program for synchronous behavior, but the user's entire browser LOCKS UP until the download is completed, which is a terrible user experience (especially if the page is very large or slow to transfer)

Asynchronous Programs

We've seen asynchronous requests with setTimeout and setInterval

This is a good transition to fetching data

Timer callback functions are guaranteed* to execute after delayMs

Fetch (AJAX) callback functions are not guaranteed to execute after a certain number of seconds, and have two possible states:

1. Success ("resolved")
2. Failure ("rejected")

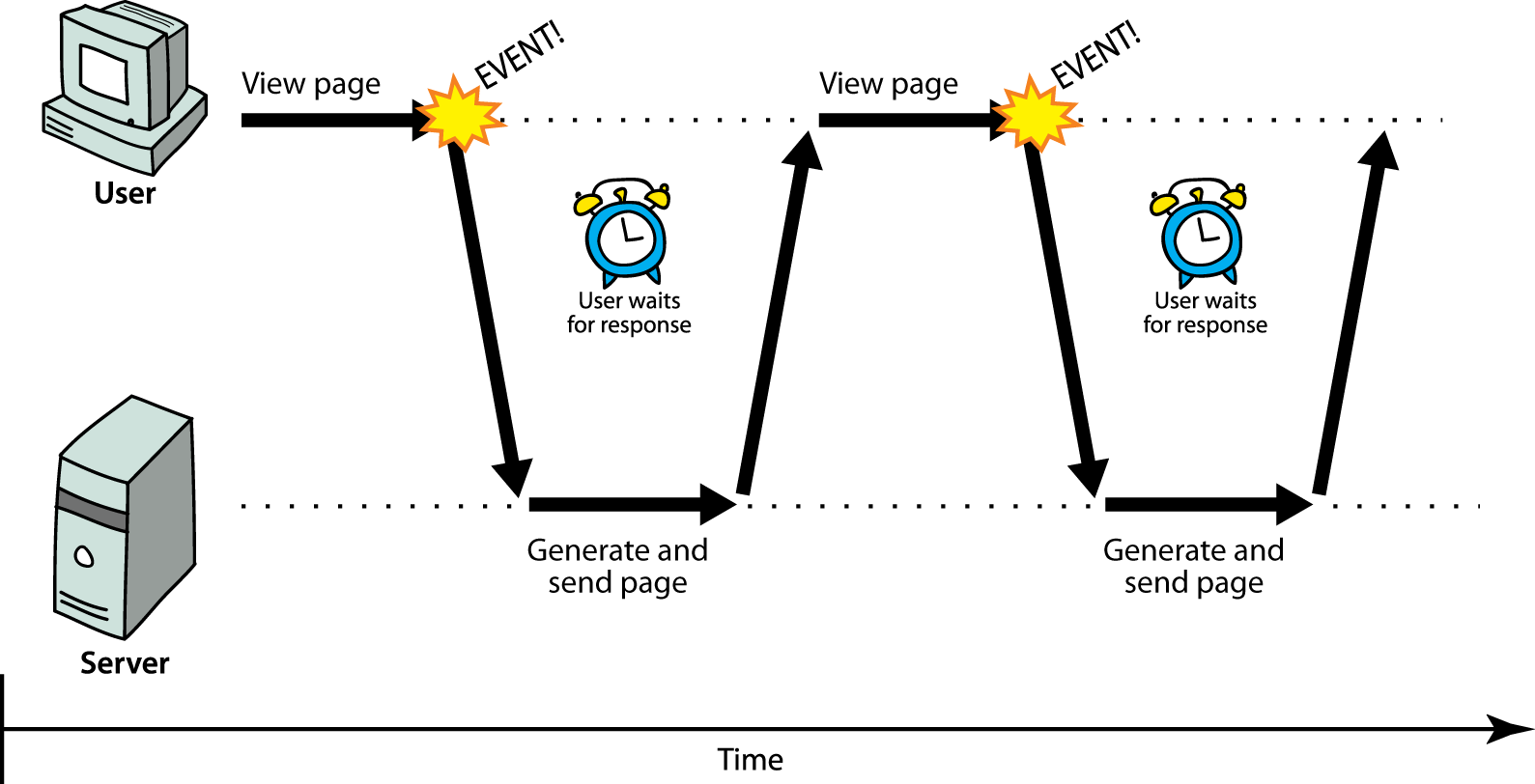

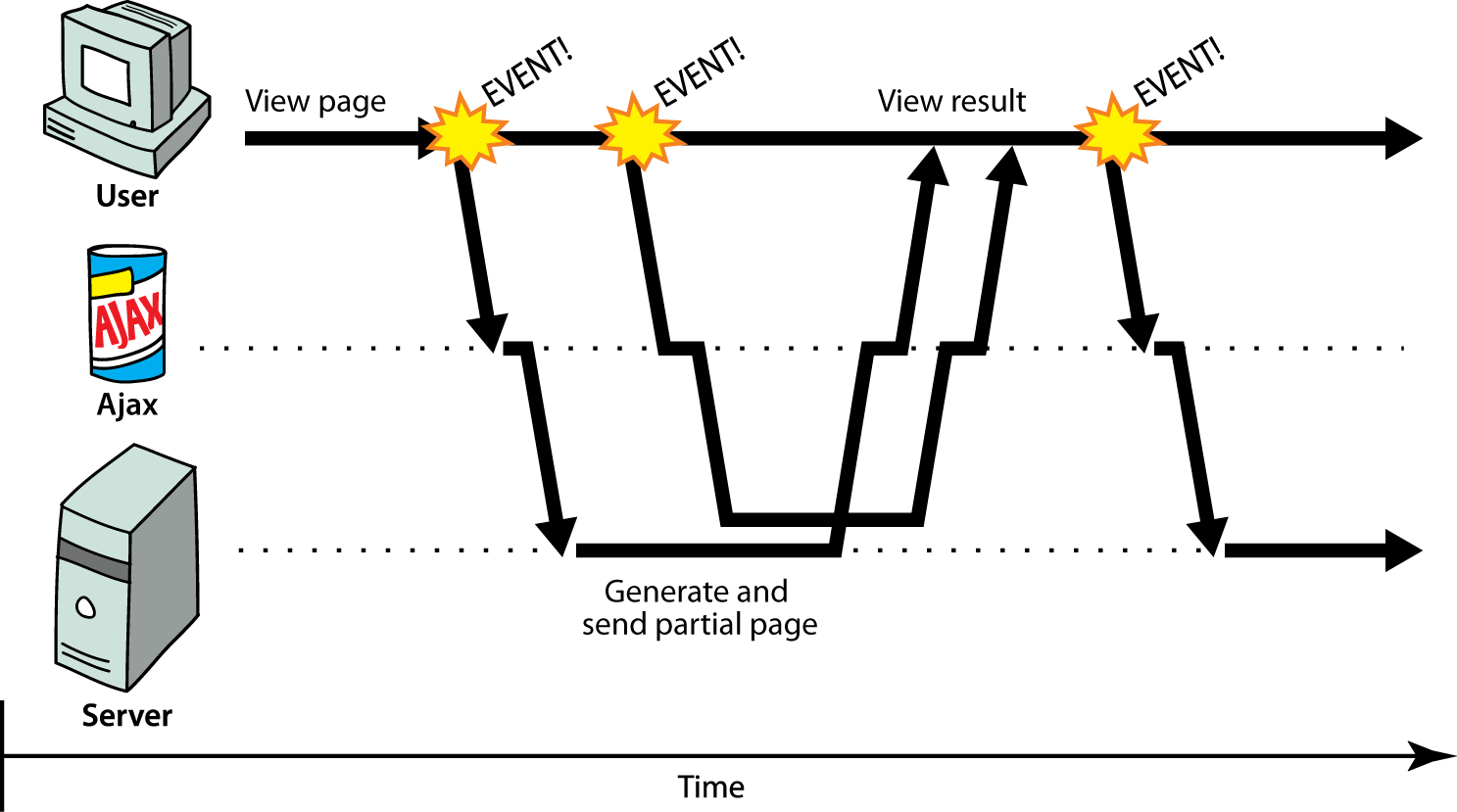

Visualization of AJAX

Modified from Quora: What is Asynchronous JavaScript on a Website

Which picture depicts "synchronous" fetch calls and which depicts "asynchronous" fetch calls?

What is the total time it takes to do the 5 requests in each case?

Visualization of fetch calls - answer

Suppose...

We knew how to get this JSON from a server instead of storing it in a variable in our client-side JS

What are new potential issues?

• There is no way to now how long the server will take the respond
• Will it even respond?

We need some way to wait for a server to respond and do something with the data afterwards (and handle uncertainty).

Naive Approach: While Loop

makeRequestToServer(url);
while (serverHasNotResponded()) {
  // do nothing here, page is frozen
}
let jsonData = getServerResponse().json();

JS (psuedocode)

What is the issue with this?

• It stops execution of the JS
• It will freeze the page - other events like clicking will not be called since this will never finish.

Callbacks to the Rescue!

makeRequestToServer(url, function(response) {
    // function to callback when server is done processing/responding
    let jsonData = response.json();
  });
}

JS (psuedocode)

This does not stop execution!

The callback is run only when the server (from url) is done responding, so there is no halting execution of other parts of your JS (just like setInterval/setTimeout!)
