Document Object Model (DOM)

a set of JavaScript objects that represent each element on the page

each tag in a page corresponds to a JavaScript DOM object
JS code can talk to these objects to examine elements' state
- e.g. see whether a box is checked
we can change state
- e.g. insert some new text into a div
we can change styles
- e.g. make a paragraph red

How to get DOM elements in JS:

Ask for them by id: document.getElementyById(...)
Query for them with CSS style selectors:
- document.querySelector(...)
- document.querySelectorAll(...)
Make new ones! document.createElement(...)

Getting a DOM element in JS:

HTML


var pTag = document.getElementById("october");

JavaScript

What's inside a DOM object?

For starters, the HTML attributes. This HTML:


<img src="images/puppy.png" alt="A fantastic puppy photo"/>

HTML

Has a DOM object (let's call it puppyImg) with these two properties:

puppyImg.src -- set by the browser to images/puppy.png
puppyImg.alt -- set by the browser to "A fantastic puppy photo"


<p>See our <a href="sale.html" id="saleslink">Sales</a> today!</p>
<img id="icon" src="images/borat.jpg" alt="Borat" />
<caption class="photo user-upload">Beauty.</caption>

HTML


var icon    = document.getElementById("icon");
var theLink = document.getElementById("saleslink");
var caption = document.querySelector("caption");

JavaScript

Property	Description	Example
`tagName`	element's HTML tag	`icon.tagName` is `"IMG"`
`className`	CSS classes of element	`caption.className` is `"photo user-upload"`
`src`	URL target of an image	`icon.src` is `"images/borat.jpg"`
href	URL target of a link	`theLink.href` is `"sale.html"`

`innerHTML` property

All DOM elements have a property called innerHTML that has the contents of the HTML tag as a string:


<ul id="dr-seuss">
    <li>Thing 1</li>
    <li>Thing 2</li>
</ul>

HTML


var elm = document.getElementById("dr-seuss");
// elm.innerHTML : "\n    Thing 1
\n    Thing 2\n"

JavaScript


<a id="fb-link" href="http://www.facebook.com">Facebook</a>

HTML

Before the JavaScript runs, we'd see:

Facebook

And after we run this Javascript:


var link = document.getElementById("fb-link");
link.innerHTML = "MySpace is back in a really big way."

JavaScript

We'd see:

MySpace is back in a really big way.

Unobtrusive JavaScript

JavaScript event code seen previously was obtrusive, in the HTML; this is bad style
now we'll see how to write unobtrusive JavaScript code
- HTML with no JavaScript code inside the tags
- uses the JS DOM to attach and execute all JavaScript event handlers
allows separation of web site into 3 major categories:
- content (HTML) - what is it?
- presentation (CSS) - how does it look?
- behavior (JavaScript) - how does it respond to user interaction?

Obtrusive event handlers (bad)

<button onclick="okayClick();">OK</button>

HTML

// called when OK button is clicked
function okayClick() {
    alert("booyah");
}

JavaScript

this is bad style (HTML is cluttered with JS code)
goal: remove all JavaScript code from the HTML body

Attaching an event handler in JavaScript code

objectName.onevent = function;

<button id="ok">OK</button>

HTML

var okButton = document.getElementById("ok");
okButton.onclick = okayClick;

JavaScript

it is legal to attach event handlers to elements' DOM objects in your JavaScript code
- notice that you do not put parentheses after the function's name
this is better style than attaching them in the HTML

When does my code run?

<html>
<head>
    <script src="myfile.js" type="text/javascript"></script>
</head>
<body> ... </body>
</html>

HTML

var x = 3;
function f(n) { return n + 1; }
function g(n) { return n - 1; }
x = f(x);

myfile.js -- JavaScript

your file's JS code runs the moment the browser loads the script tag
- any variables are declared immediately
- any functions are declared but not called, unless your global code explicitly calls them
at this point in time, the browser has not yet read your page's body
- none of the DOM objects for tags on the page have been created yet

A failed attempt at being unobtrusive

<html>
<head>
    <script src="myfile.js" type="text/javascript"></script>
</head>
<body>
<div><button id="ok">OK</button></div>
(... more html ...)

HTML

var btn = document.getElementById("ok");
btn.onclick = okayClick;  // this is bad: btn is null at this point

myfile.js -- JavaScript

problem: global JS code runs the moment the script is loaded
script in head is processed before page's body has loaded
- no elements are available yet or can be accessed yet via the DOM
we need a way to attach the handler after the page has loaded...

The `window.onload` event

function functionName() {
    // put code to initialize the page here
}

// instruct window to run the function when the page has loaded:
window.onload = functionName;

JavaScript

there is a global event called window.onload event that happens once everything in the page has been loaded
if you attach a function as a handler for window.onload, it will run at that time

An unobtrusive event handler

<button id="ok">OK</button>   <!-- (1) -->

HTML

// called when page loads; sets up event handlers
function pageLoad() {
    var ok = document.getElementById("ok"); // (3)
    ok.onclick = okayClick;
}

function okayClick() {
    alert("booyah");                        // (4)
}

window.onload = pageLoad;                   // (2)

JavaScript

Common unobtrusive JS errors

event names are all lowercase, not capitalized like most variables
```
window.onLoad = pageLoad;
window.onload = pageLoad;
```
you shouldn't write () when attaching the handler
(if you do, it calls the function immediately, rather than setting it up to be called later)
```
ok.onclick = okayClick();
ok.onclick = okayClick;
```
- our JSLint checker will catch this mistake

related: can't directly call functions like alert; must enclose in your own function

ok.onclick = alert("booyah");
ok.onclick = okayClick;

function okayClick() { alert("booyah"); }

Anonymous function example

window.onload = function() {
    var ok = document.getElementById("ok");
    ok.onclick = okayClick;
};

function okayClick() {
    alert("booyah");
}

JavaScript

or, the more concise, but perhaps harder to read:

window.onload = function() {
    document.getElementById("ok").onclick = function() {
        alert("booyah");
    };
};

Unobtrusive styling

function okayClick() {
    this.style.color = "red";       // <-- bad style
    this.className = "highlighted"; // <-- better style
}

HTML

.highlighted { color: red; }

CSS

well-written JavaScript code should contain as little CSS as possible
use JS to set CSS classes/IDs on elements
define the styles of those classes/IDs in your CSS file

The danger of global variables

var count = 0;
function incr(n) {
    count += n;
}
function reset() {
    count = 0;
}

incr(4);
incr(2);
console.log(count);

globals can be bad; other code and other JS files can see and modify them
How many global symbols are introduced by the above code?
3 global symbols: count, incr, and reset

Enclosing code in a function

function everything() {
    var count = 0;
    function incr(n) {
        count += n;
    }
    function reset() {
        count = 0;
    }

    incr(4);
    incr(2);
    console.log(count);
}

everything(); // call the function to run the code

JavaScript

the above example moves all the code into a function; variables and functions declared inside another function are local to it, not global
How many global symbols are introduced by the above code?
1 global symbol: everything (can we get it down to 0?)

The "module pattern"

(function() {
    statements;
})();

wraps all of your file's code in an anonymous function that is declared and immediately called
0 global symbols will be introduced!
the variables and functions defined by your code cannot be messed with externally

JavaScript "strict" mode

"use strict";

...your code...

JavaScript

writing "use strict"; at the very top of your JS file turns on strict syntax checking:
- shows an error if you try to assign to an undeclared variable
- stops you from overwriting key JS system libraries
- forbids some unsafe or error-prone language features
You should always turn on strict mode for your code in this class!

JS Skeleton

HTML

(function() {
    window.onload = function() {
       // phew! your code goes here
    };
})();

JavaScript

The DOM

The DOM

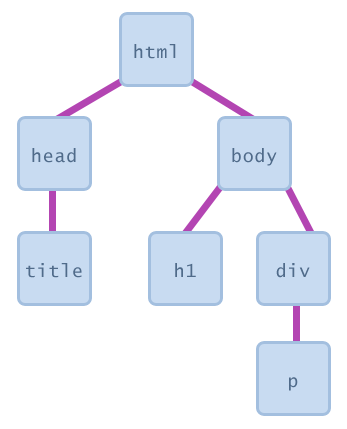

Visualizing the tree
