(Last updated September 23, 2020)
Go to the following page:

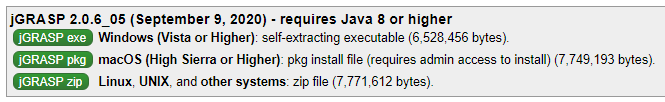

This page contains an optional survey by the jGRASP authors; you may scroll down and skip it. We recommend installing the lastest stable, non-beta version of the jGRASP editor. At the time of writing, this was version 2.0.6_05. Locate the appropriate download link and click it:
Save the file to your desktop or another convenient location.

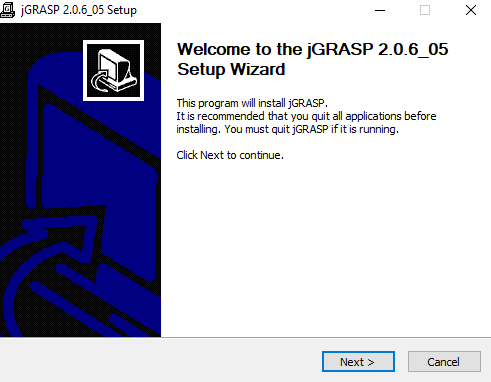

.exe file you just downloaded. A setup wizard will appear.
The default settings are reasonable for most users, and you can complete the installation by repeatedly clicking "Next".

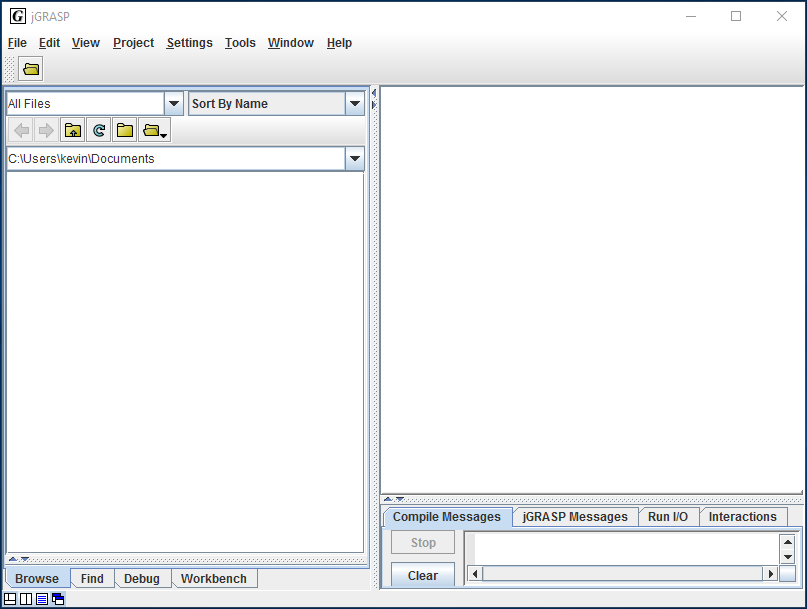

At this point, you will have a new jGRASP shortcut on your desktop. Double-click it to open jGRASP:

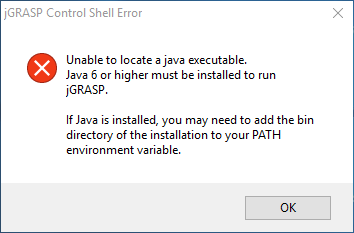

If you see this, you're all set! However, if you get the following error:
then your system does not yet have the JDK installed. Make sure you followed the JDK installation instructions, and try again.
.pkg file you just downloaded.

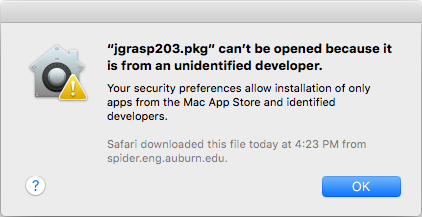

You may receive an error about jGRASP being from an "unidentified developer":
This is due to a macOS "feature" that makes it difficult to run applications not distributed via Apple's official channels.
To run the jGRASP installer regardless, bypassing this "feature", right click the
.pkg file and choose "open".

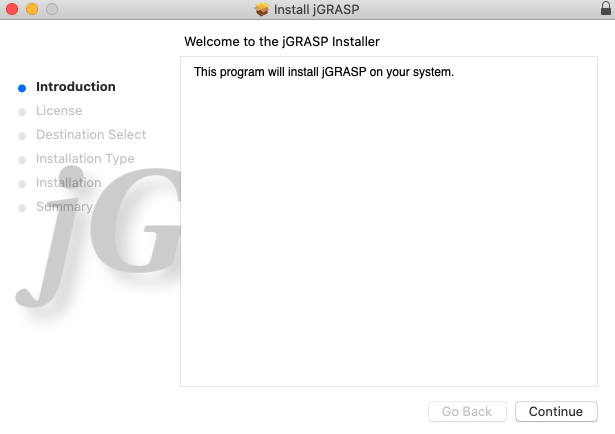

You will see an installation wizard.
The default settings are reasonable for most users, and you can complete the installation by repeatedly clicking "Continue".
You can now run jGRASP by opening
jGRASP.app from the

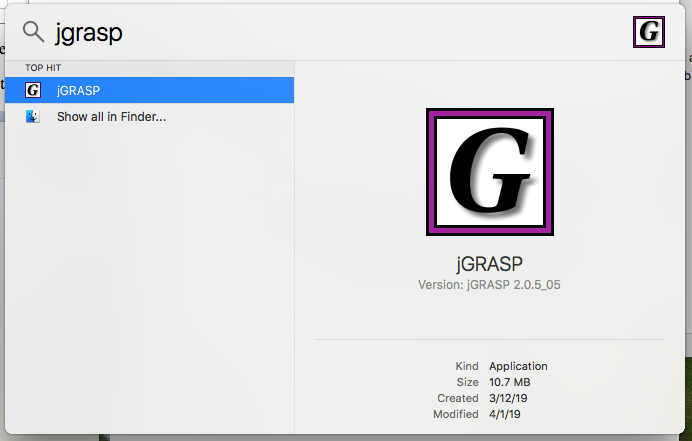

One way to do this is to press Cmd+Space, type "jGRASP", and press Enter:
If jGRASP opens successfully, then you're all set! However, if you see the following error:
then you don't have the JDK installed. Make sure you followed the JDK installation instructions, and try again.
.zip file you just downloaded to some permanent location.
/usr/local/jgrasp would all be reasonable locations, but anything will do.
cd into that directory and run
java -jar jgrasp.jar.

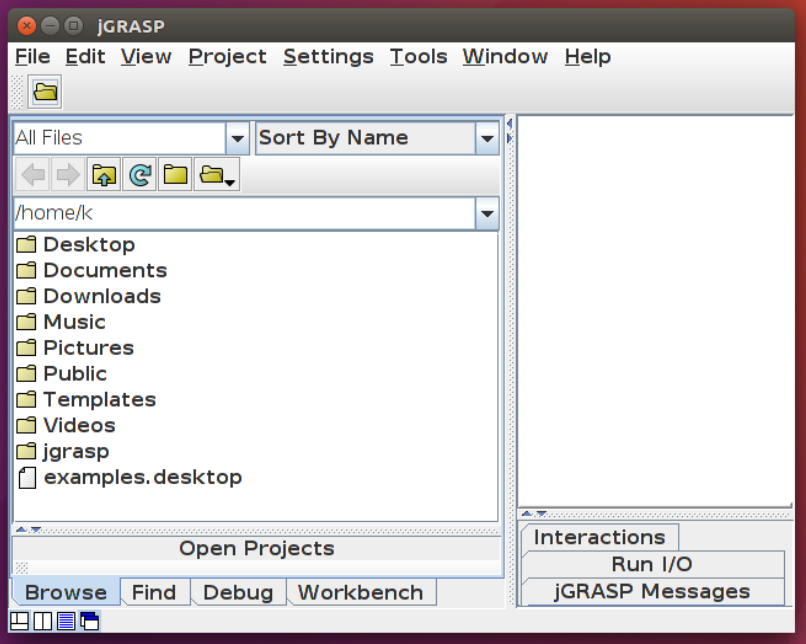

If all goes well, you should see this:
If you get an error about
java being missing, follow the JDK installation instructions, and try again.
If you run into issues, or have additional information to contribute to this section, contact us.
